ICON Vehicle Dynamics Stage 5 Suspension System 2-3" Lift Tubular Bronco 21-26

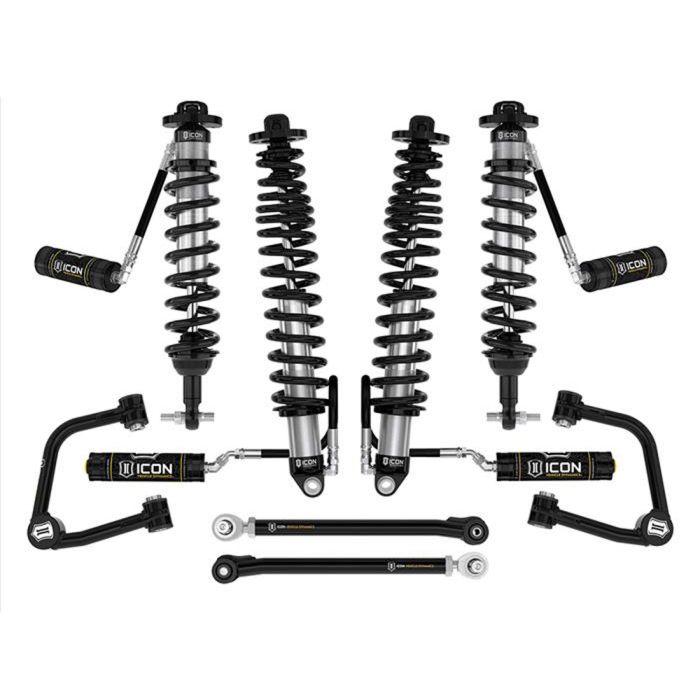

When it comes to upgrading your 2021-2026 Broncos suspension system, the ICON Vehicle Dynamics Stage 5 Tubular Lift Suspension System (K40015T) provides a serious improvement. This top-of-the-line system features adjustable coilovers that can yield up to 2-3 inches of front lift, superior damping and vehicle control, and increased wheel travel both on and off-road. Not only does it look sharp with its corrosion-resistant CAD-plated coilover shock bodies and 6061 aircraft-grade aluminum CNC machined components, but it also provides ultimate durability.

Features and Benefits:
- Adjustable coilovers yield up to 2-3” of front lift
- PTFE-lined spherical bearings
- Application-specific mounting hardware
- Superior damping and vehicle control
- Increased wheel travel on and off-road
- 6061 aircraft-grade aluminum CNC machined components
- Corrosion resistant CAD plated coilover shock bodies
- ICON-engineered coil springs featuring a unique triple-rate rear coil design
- High-strength alloy CNC machined lower bar pins
- Tubular UCAs for added strength, durability, and alignment
- Remote reservoirs increase shock oil volume
- Resists overheating and cavitation through more surface area
- Delta Joint Pro provides 90-degrees of articulation
- Allows pinion angle adjustment
- Direct bolt-in installation
- Made in the USA

With its tubular UCAs and high-strength alloy CNC machined lower bar pins, this system delivers excellent alignment and handling. The Delta Joint Pro provides 90 degrees of articulation and the ability to adjust the pinion angle. A 100% direct bolt-in design and USA-made quality make the system all the better.

Vehicle Fitment:
- 2021-2026 Broncos
- Fits Base, Big Bend, Outer Banks, and Black Diamond trim levels
- Fits trim levels with Sasquatch package

Additional Notes:
- OEM wheels and tires fitment: yes
- Recommended aftermarket wheels: 17x8.5" w/ 4.75” backspace / 0mm offset
- Recommended aftermarket wheels: 18x9" w/ 5.00" backspace / 0mm offset
- Recommended aftermarket tires: 35" x 12.50" (37" tires require coilover bump stop spacers along with minor trimming)
- Shocks are fully serviceable. lift heights indicated are for a stock-equipped vehicle.
- 2-door models will sit taller than 4-door models.
- When running 37" tires use up travel limiters part #611075 in the front.
- When running 37" tires use up travel limiters part #611074 for the rear.
- Lift heights and app notes based on Sasquatch-equipped vehicles.
- When running ICON tubular lower links use part #611073
- Fitment testing is done with ICON and OE steering components. Due to tight clearances to front coilovers, certain aftermarket steering components may not be compatible.
- Triple-rate rear coils are optimized for improved suspension performance and ride quality for a near-stock weight Bronco. Their softer initial spring rates will net lower than advertised ride heights as weight is added to the rear of the vehicle. For heavier-equipped Broncos, consider part number K40015TX.
- Bronco Everglades will have a front lift height range of 1.5-2.5" over stock.

Please Note: Not compatible with Bronco Raptor.
