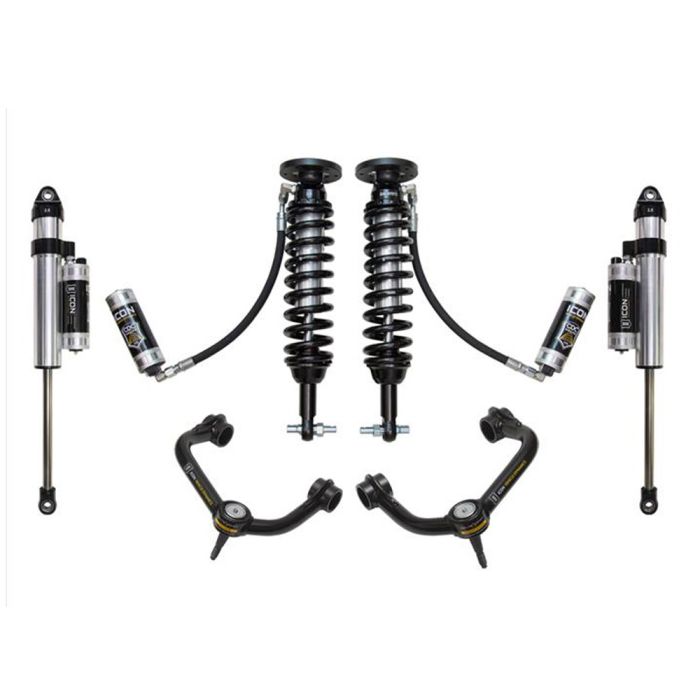

ICON Vehicle Dynamics Stage 5 Suspension System Tubular Lift Kit 4WD F-150 2014

For F-150 owners looking to upgrade their vehicle's suspension, the Stage 5 Suspension System from ICON Vehicle Dynamics is a game-changer. With its primary goal of increasing wheel travel and damping ability, this system brings unparalleled vehicle control and ride quality, both on and off-road. The secret lies in the 2.5” coilover shocks, which are specifically tuned for each F-150 model and come equipped with external remote reservoirs and compression damping control valve technology (CDCV). These features not only improve handling but also help combat damper fade, ensuring a consistently superior vehicle feel across the entire range of travel. In addition, the adjustable coilovers allow for a lift height of 1.75-2.63”, making it easier to accommodate larger, more aggressive wheel and tire options. Overall, the Stage 5 Suspension System is a smart choice for F-150 drivers who prioritize performance and reliability.

Features & Benefits:
- Increased Wheel Travel & Ride Quality Over Stock
- Improved Suspension Performance & Ride Quality
- Retains Factory Towing Capacity
- Vehicle-Specific Tuned Front & Rear Shocks
- Superior Damping & Vehicle Control
- Adjustable Coilovers Yield 1.75-2.63” Lift Height
- ICON CDCV-Equipped Front & Rear Shocks
- Full Shock Compression Tuneability
- Tubular Upper Control Arms
- Additional Strength, Durability, Adjustability, & Improved Alignment
- 6061 Aircraft-Grade Aluminum CNC-Machined Components
- Corrosion-Resistant CAD-Plated Coilover Shock Bodies with 7/8” Shafts
- FK Rod End Bearings for Extended Longevity & Minimal Deflection
- 2.5 Aluminum Rear Shocks, One-Piece Impact Extruded Aluminum Cylinders
- Excellent Corrosion Resistance & Consistent Finish
- Bolt-On System, No Cutting or Welding Necessary
- Made in the USA

When it comes to upgrading your F-150, tubular upper control arms are a game-changer. Not only do they offer additional strength and durability, but they also retain the factory alignment spec range, meaning you won't need to worry about any alignment issues. Furthermore, the increased caster over stock means you'll have greater control when driving. What sets these control arms apart is the addition of ICON's patented Delta Joint system. This system utilizes a heavy-duty, high-angle ball joint that incorporates the best aspects of a uniball with the durability of a ball joint. Additionally, the zinc-plated housing provides excellent corrosion resistance, and the tough grease seal ensures the control arms remain noise-free. If you're looking for reliable, long-lasting performance, billet aluminum upper control arms with ICON's Delta Joint system are the perfect choice for any F-150 owner.

Additional Information:
- OEM Wheels & Tires fitment: Not Compatible with All OE Wheel/Tire Combinations
- Aftermarket Wheels with Lower Offset/Backspace Recommended
- Recommended Aftermarket Wheels: 17x8.5” with 5.00” Backspace/6mm Offset
- Recommended Aftermarket Wheels: 18x9” with 5.25” Backspace/6mm Offset
- Recommended Aftermarket Wheels: 20x9” with 5.625 Backspace/16mm Offset
- Recommended Aftermarket Tires: 33” x 11.50”
- Tires Larger than 33” May Require Trimming/Modifications
- Shocks Fully Serviceable. Coilover Heights Indicated for Stock Equipped Vehicle
- Only Compatible with OE Spindles. DO NOT Install with ANY Aftermarket Spindles
- Included Rear Shocks Compatible with 0-1” of Rear Lift Over Stock

Vehicle Fitment:
- 2021-2023 Ford F-150s
- Four-Wheel Drive Models
* Not Compatible with Models Equipped with CNG or LPG Fueled Engines
