ICON Vehicle Dynamics Stage 6 Suspension System Billet 2-3" Lift Sasquatch Bronco 21-26

This Stage 6 Suspension System fits 2021-2026 Ford Broncos equipped with the Sasquatch Package, lifting the front of the vehicle by 2 to 3 inches and the rear by 1-1/4 to 2-1/4 inches. Whether you're taking your beast out on the trails or just cruising on the highway, this suspension system offers an enhanced driving experience thanks to Compression Damping Control Valves (CDCV) which can dial in on the exact settings you need at each moment.

Features and Benefits:
- Stage 6 Suspension System for non-Sasquatch Broncos
- Tuned remote reservoir front & rear coilover shocks
- Coilovers feature CDC valves, 10 compression damping adjust settings, & triple-rate coil springs
- Corrosion-resistant CAD-plated coilover shock bodies with 7/8" diameter shafts
- Improves ride quality and performance with enhanced vehicle control and damping
- Provides 2-3" front lift & 1-1/4" to 2-1/4" rear lift over stock
- Up to 11-1/2" front / 14" rear wheel travel with 35" tire fitment
- Remote reservoirs increase heat dissipation & resist overheating/cavitation
- Billet aluminum Upper Control Arms offer on-vehicle caster/camber adjustment
- Delta Joint Pro offers 90° of articulation
- Alloy CNC-machined lower bar pins
- 100% bolt-on installation with no drilling, cutting, or welding
- Includes PTFE-lined spherical bearings and mounting hardware
- Made in the USA!

ICON Vehicle Dynamics uses shaft-up rear shocks and triple-rate coil springs in this Stage 6 Suspension System, allowing you to maximize your Bronco's suspension travel while resisting overheating and cavitation. They stay cool using remote reservoirs which provide a larger surface area for oil heat to dissipate. All coilovers in this system have CDC valves which offer 10 settings of compression damping adjustment.

This Stage 6 Suspension System (K40016) comes with billet rear lower links made with dual-durometer greaseless bushings and FK rod ends for on-ride adjustability. It also features billet aluminum Upper Control Arms made with Delta Joint Pro for up to 90 degrees of articulation. Installation of this USA-made system is completely bolt-on and requires zero welding, cutting, or drilling.

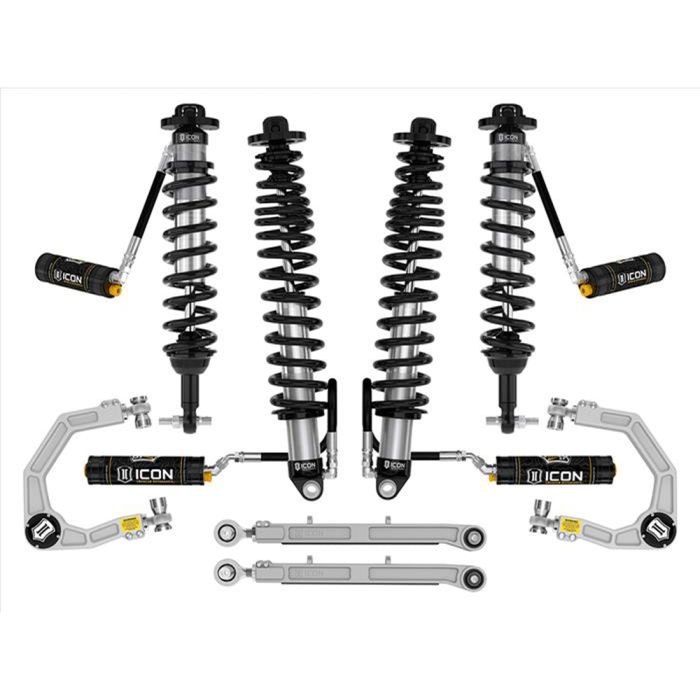

System Includes:
- Front Remote Reservoir Shocks
- Rear Remote Reservoir Shocks
- Billet Upper Control Arm Kit with Delta Joint Pro
- Billet Rear Lower Link Kit

Tech Info:
- OEM Wheels & Tires Fitment: No
- Recommended Aftermarket Wheels: 17x8.5" w/ 4.75” Backspace / 0mm Offset
- Recommended Aftermarket Wheels: 18x9" with 5" Backspace / 0mm Offset
- Recommended Aftermarket Wheels: 20x9" with 5" Backspace / 0mm Offset
- Recommended Aftermarket Tires: 35"x12.5" (37" tires require coilover bump stop spacers along with minor trimming)
- Shocks are fully serviceable. Lift heights indicated are for a stock-equipped vehicle.
- 2-door models will sit taller than 4-door models.
- When running 37" tires use Up Travel Limiters part #611075 in the front.
- When running 37" tires use Up Travel Limiters part #611074 in the rear.
- Lift heights & app notes based on non-Sasquatch-equipped vehicles.
- Fitment testing is done with ICON & OE steering components. Due to tight clearances to front coilovers, certain aftermarket steering components may not be compatible.
- Triple-rate rear coils are optimized for improved suspension performance and ride quality for a near-stock weight Bronco. Their softer initial spring rates will net lower than advertised ride heights as weight is added to the rear of the vehicle. For heavier-equipped Broncos, consider part number K40016X.
- Bronco Everglades will have a front lift height range of 1-1/2" to 2-1/2" over stock.

Vehicle Fitment:
- 2021-2026 Ford Bronco

*Fits Base, Big Bend, Outer Banks, and Black Diamond trim levels.
*ONLY fits trims with Sasquatch package.
*NOT compatible with Bronco Raptor models.
