ICON Vehicle Dynamics Stage 6 Suspension System Tubular 3-4" Lift Non-Sasquatch Bronco 21-26

This Stage 6 Suspension System (K40006T) from ICON Vehicle Dynamics will lift any 2021-2026 non-Sasquatch Ford Bronco by 3-4" in the front and 2-3" in the rear over stock 4-door models. Its remote reservoir shocks provide an enjoyable experience in any scenario thanks to Compression Damping Control Valves (CDCV) which allow for a dialed-in performance based on needs. This means that you can easily cruise on any road or climb over rocky and rough terrains with no problem!

Features and Benefits:
- Stage 6 Suspension System for non-Sasquatch Broncos
- Tuned remote reservoir front & rear coilover shocks
- Coilovers feature CDC valves, 10 compression damping adjust settings, & triple-rate coil springs
- Corrosion-resistant CAD-plated coilover shock bodies with 7/8" diameter shafts
- Improves ride quality and performance with enhanced vehicle control and damping
- Provides 3-4" front lift & 2-3" rear lift over stock
- Up to 11-1/2" front / 14" rear wheel travel with 35" tire fitment
- Remote reservoirs increase heat dissipation & resist overheating/cavitation
- Billet aluminum Upper Control Arms offer caster/camber adjustment
- Delta Joint Pro offers 90° of articulation
- Alloy CNC-machined lower bar pins
- 100% bolt-on installation with no drilling, cutting, or welding
- Includes PTFE-lined spherical bearings and mounting hardware
- Made in the USA!

This system features triple-rate coil spring rear shocks that offer faster heat dissipation thanks to remote reservoirs with greater surface area, allowing them to resist overheating. You'll get up to 11-1/2" front wheel travel and up to 14" rear wheel travel with 35" tires. This system also features tubular Upper Control Arms (UCAs) that each utilize a built-in Delta Joint Pro for up to 90 degrees of adjustable movement. This USA-made system by ICON Vehicle Dynamics is completely bolt-on, eliminating the need for cutting, drilling, or welding!

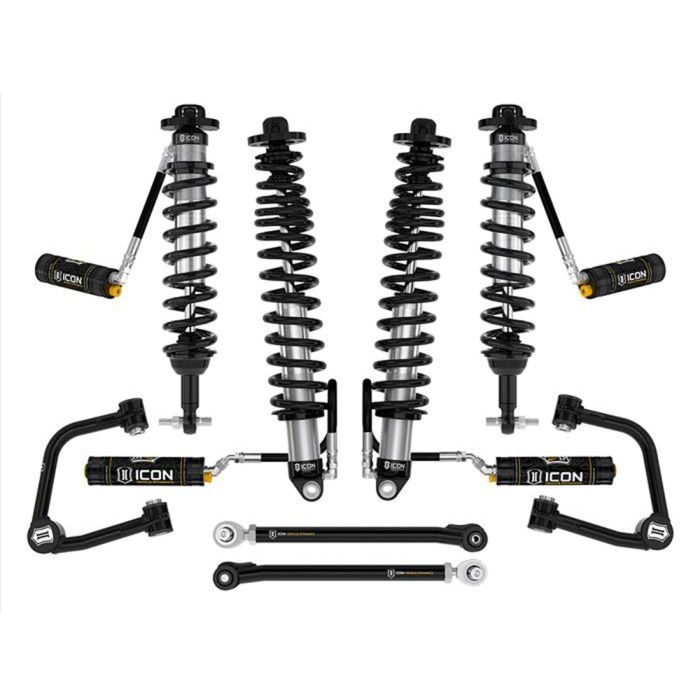

System Includes:
- Front Coilover Kit with Compression Damping Control Valves
- Rear Coilover Kit with CDCV
- Tubular Upper Control Arm Kit with Delta Joint Pro
- Tubular Rear Lower Link Kit
- 1-3/4" Link Hose Routing Kit

Tech Info:
- OEM Wheels & Tires Fitment: No
- Recommended Aftermarket Wheels: 17x8.5" w/ 4.75” Backspace / 0mm Offset
- Recommended Aftermarket Wheels: 18x9" with 5" Backspace / 0mm Offset
- Recommended Aftermarket Wheels: 20x9" with 5" Backspace / 0mm Offset
- Recommended Aftermarket Tires: 35"x12.5" (Recommend high clearance crash bars part number 42000, 37" tires require coilover bump stop spacers along with trimming and modifications)
- Shocks are fully serviceable. Lift heights indicated are for a stock-equipped vehicle.
- 2-door models will sit taller than 4-door models.
- When Running 37" Tires Use Up Travel Limiters Part #611075 In The Front
- When Running 37" Tires Use Up Travel Limiters Part #611074 For The Rear
- Lift Heights & App Notes Based Non-Sasquatch Equipped Vehicles
- Recommend High Clearance Crash Bars Part #42000 On Non-Sasquatch Equipped Vehicles When Running 35" Tires
- When Running 37" Tires Crash Bar Removal May Be Required But Is Not Recommended
- Fitment testing is done with ICON & OE steering components. Due to tight clearances to front coilovers, certain aftermarket steering components may not be compatible.
- Triple-rate rear coils are optimized for improved suspension performance and ride quality for a near-stock weight Bronco. Their softer initial spring rates will net lower than advertised ride heights as weight is added to the rear of the vehicle. For heavier-equipped Broncos, consider part number K40006X.
- When used with 35X12.50 tires, this system provides up to 11-1/2" of front suspension travel and 14" rear. It can be used with 37" or larger when used with separate up-travel limiters. Non-Sasquatch models must have the crash bar removed to clear 35" or larger tires.

Vehicle Fitment:
- 2021-2026 Ford Bronco

*Fits Base, Big Bend, Outer Banks, and Black Diamond trim levels.
*ONLY fits trims without Sasquatch package.
*NOT compatible with Bronco Raptor models.
