ICON Vehicle Dynamics Stage 7 Suspension System Billet 2-3" Lift Sasquatch Bronco 21-26

ICON Vehicle Dynamics' Stage 7 Suspension System (K40017) for 2021-2026 Ford Broncos features 10 settings of compression damping adjustment using CDC valves which control the flow of fluid under compression. This means you get to adjust your shocks' tuning to whatever level of cushion you need based on the task at hand, whether conquering giant boulders or crawling over speed bumps.

Features and Benefits:
- Stage 7 Suspension System for Sasquatch Broncos
- Tuned remote reservoir front & rear coilover shocks
- CDC Valves control compression damping adjustment fluid
- Corrosion-resistant CAD-plated coilover shock bodies with 7/8" diameter shafts
- Improves ride quality and performance with enhanced vehicle control and damping
- Provides 2-3" front lift & 1-1/4" to 2-1/4" rear lift over stock 4-door model w/Sasquatch
- Up to 11-1/2" front / 14" rear wheel travel with 35" tire fitment
- Remote reservoirs increase heat dissipation & resist overheating/cavitation
- Billet aluminum Upper Control Arms offer on-vehicle caster/camber adjustment
- Delta Joint Pro offers 90° of articulation
- Alloy CNC-machined lower bar pins
- Adjustable billet rear upper links free suspension bind & heighten fuel tank clearance under max articulation
- Adjustable rear track bar frees up bind during travel & offers on-vehicle rear end alignment
- 100% bolt-on installation with no drilling, cutting, or welding
- Includes PTFE-lined spherical bearings and mounting hardware
- Made in the USA

This suspension system lifts the front end of your Sasquatch Bronco by 2 to 3 inches while the rear is lifted by 1-1/4 to 2-1/4 inches, all thanks to front and rear coilover shocks. They keep your ride comfy even during hard off-road use. Plus, their remote reservoirs keep them cool enough to resist cavitation. With this system, you'll also get up to 11-1/2 inches of front wheel travel and up to 14 inches of rear wheel travel when running 35-inch tires.

The included billet aluminum upper control arms are each made using a Delta Joint PRO that is built-in for on-vehicle caster and camber adjustment with up to 90 degrees of free movement. Stage 7 Systems also come with a complete billet rear link kit with upper links and an adjustable rear track bar. The Upper Links are designed to clear the fuel tank under intense articulation. It also has greaseless bushings, huge FK rod ends, and complete on-vehicle adjustability.

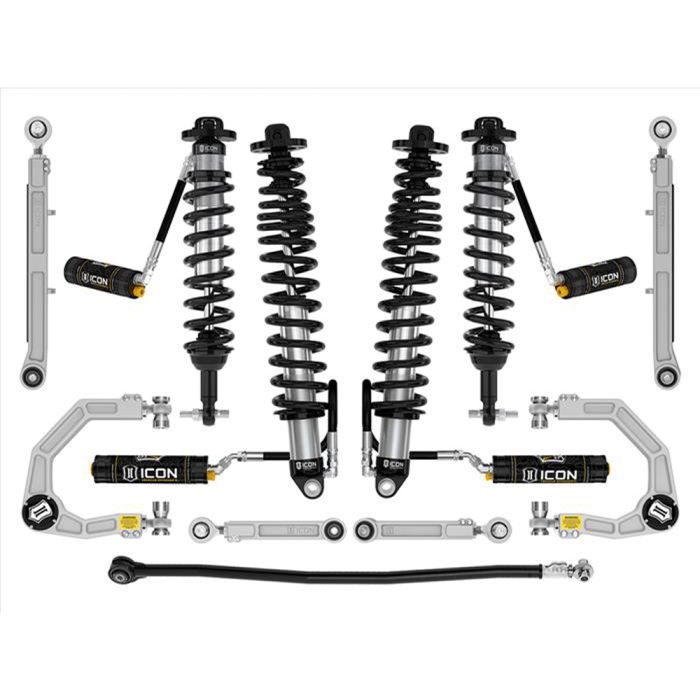

System Includes:
- V.S. 2.5 Series Remote Reservoir CDCV Front Coilover Kit
- V.S. 2.5 Series Remote Reservoir CDCV Rear Coilover Kit
- Billet Aluminum Upper Control Arm Kit with Delta Joint Pro
- Billet Aluminum Rear Upper Link Kit
- Billet Aluminum Rear Lower Link Kit
- Rear Adjustable Track Bar Kit

Tech Info:
- OEM Wheels & Tires Fitment: No
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.00” Backspace / 0mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.00” Backspace / 0mm Offset
- Recommended Aftermarket Tires: 35" x 12.50" (37" tires require coilover bump stop spacers along with minor trimming)
- Shocks are fully serviceable. Lift heights indicated are for a stock-equipped vehicle.
- 2-door models will sit taller than 4-door models.
- When running 37" tires use Up Travel Limiters part #611075 in the front
- When running 37" tires use Up Travel Limiters part #611074 in the rear
- Lift heights & app notes based on Sasquatch-equipped vehicles
- Fitment testing is done with ICON & OE steering components. Due to tight clearances to front coilovers, certain aftermarket steering components may not be compatible.
- Triple-rate rear coils are optimized for improved suspension performance and ride quality for a near-stock weight Bronco. Their softer initial spring rates will net lower than advertised ride heights as weight is added to the rear of the vehicle. For heavier-equipped Broncos, consider part number K40017X.
- Bronco Everglades will have a front lift height range of 1-1/2" to 2-1/2" over stock.
- When used with 35X12.50 tires, this system provides up to 11-1/2" of front suspension travel and 14" rear. It can be used with 37" or larger when used with separate up-travel limiters.

Vehicle Fitment:
- 2021-2026 Ford Bronco

*Fits Base, Big Bend, Outer Banks, and Black Diamond trim levels.
*Fits trims with Sasquatch package.
*NOT compatible with Bronco Raptor models.
