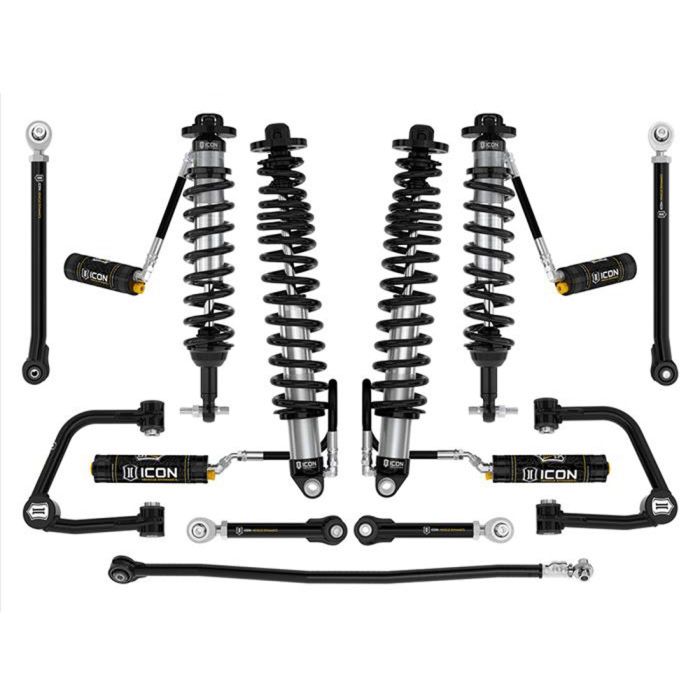

ICON Vehicle Dynamics Stage 7 Suspension System 3-4” Lift Tubular Bronco 2021-2024

For those seeking the ultimate in vehicle control and performance, the ICON Vehicle Dynamics Stage 7 Tubular Lift Suspension System (K40007T) for 2021-2024 Broncos is here to deliver. Featuring custom valved adjustable coilovers and PTFE-lined spherical bearings, no detail has been overlooked in ensuring superior damping and vehicle control. With 10 compression damping settings, 6061 aircraft-grade aluminum CNC machined components, and corrosion-resistant CAD-plated coilover shock bodies, every aspect of this suspension system has been engineered to perfection.

Features and Benefits:
- Custom valved adjustable coilovers yield up to 3-4” of lift
- PTFE-lined spherical bearings
- Application-specific mounting hardware
- Superior damping and vehicle control
- 10 compression damping settings
- 6061 aircraft-grade aluminum CNC machined components
- Corrosion resistant CAD plated coilover shock bodies
- ICON-engineered coil springs featuring a unique triple-rate rear coil design
- High-strength alloy CNC machined lower bar pins
- Tubular UCAs for added strength, durability, and alignment
- Remote reservoirs increase shock oil volume
- Resists overheating and cavitation through more surface area
- Delta Joint Pro provides 90-degrees of articulation
- More fuel tank clearance
- Frees up suspension bind
- Direct bolt-in installation
- Made in the USA

The ICON-engineered coil springs feature a unique triple-rate rear coil design, while the high-strength alloy CNC machined lower bar pins and tubular UCAs provide added strength, durability, and alignment. Remote reservoirs increase shock oil volume and resist overheating and cavitation through more heat dissipation surface area.

Vehicle Fitment:
- 2021-2024 Broncos
- Fits Base, Big Bend, Outer Banks, and Black Diamond trim levels
- Only fits trims without Sasquatch package
- Does not fit Bronco Raptor

Additional Notes:
- OEM wheels and tires fitment: yes
- Recommended aftermarket wheels: 17x8.5" w/ 5.75” backspace / 25mm offset
- Recommended aftermarket wheels: 18x9" w/ 6.00" backspace / 25mm offset
- Recommended aftermarket tires: 35" x 12.50" (recommend high clearance crash bars P/N: 42000 on 35” tires, 37" tires require coilover bump stop spacers along with trimming and modifications)
- Shocks are fully serviceable. lift heights indicated are for a stock-equipped vehicle.
- 2-door models will sit taller than 4-door models.
- When running 37" tires use up travel limiters part #611075 in the front.
- When running 37" tires use up travel limiters part #611074 for the rear.
- Lift heights and app notes based on non-sasquatch-equipped vehicles.
- When running ICON tubular lower links use part #611073
- When running 37" tires crash bar removal may be required but is not recommended.
- Fitment testing is done with ICON and OE steering components. Due to tight clearances to front coilovers, certain aftermarket steering components may not be compatible.
- Triple-rate rear coils are optimized for improved suspension performance and ride quality for a near-stock weight Bronco. Their softer initial spring rates will net lower than advertised ride heights as weight is added to the rear of the vehicle. For heavier-equipped Broncos, consider part number K40007TX.
