ICON Vehicle Dynamics Stage 7 Suspension System Tubular 2-3" Lift Sasquatch Bronco 2021-2024

This Stage 7 Suspension System by ICON Vehicle Dynamics features tubular upper control arms and a tubular rear link kit with an adjustable track bar. This design allows for caster correction with up to 90 degrees of free movement thanks to the built-in Delta Joint PRO, which accommodates your Bronco's newly lifted height! This USA-made system (K40017T) features a 100% bolt-on installation on 2021-2024 Ford Broncos.

Features and Benefits:
- Stage 7 Suspension System for Sasquatch Broncos
- Tuned remote reservoir front & rear coilover shocks
- CDC Valves control compression damping adjustment fluid
- Corrosion-resistant CAD-plated coilover shock bodies with 7/8" diameter shafts
- Improves ride quality and performance with enhanced vehicle control and damping
- Provides 2-3" front lift & 1-1/4" to 2-1/4" rear lift over stock 4-door model w/Sasquatch
- Up to 11-1/2" front / 14" rear wheel travel with 35" tire fitment
- Remote reservoirs increase heat dissipation & resist overheating/cavitation
- Tubular Upper Control Arms offer caster/camber adjustment
- Delta Joint Pro offers 90° of articulation
- Alloy CNC-machined lower bar pins
- Adjustable billet rear upper links free suspension bind & heighten fuel tank clearance under max articulation
- Adjustable rear track bar frees up bind during travel & offers on-vehicle rear end alignment
- 100% bolt-on installation with no drilling, cutting, or welding
- Includes PTFE-lined spherical bearings and mounting hardware
- Made in the USA

The remote reservoir coilover shocks in this Stage 7 System from ICON feature increased shock oil volume with decreased temperature thanks to a larger surface. They also use CDC valves which allow you to get the perfect ride quality in any easy or tough scenario by controlling shock fluid flow under compression.

This Stage 7 System lifts your Bronco by 2 to 3 inches in the front and 1-1/4 to 2-1/4 inches in the rear over stock 4-door Sasquatch models. It also yields wheel travel up to 11-1/2 inches in the front and 14 inches in the rear.

The rear shafts are installed shaft-up and have triple-rate coil springs. The upper links are designed to clear your fuel tank at any time and have large FK rod ends. The track bar is made with dual-durometer greaseless bushings and an FK rod end, and is adjustable on-ride.

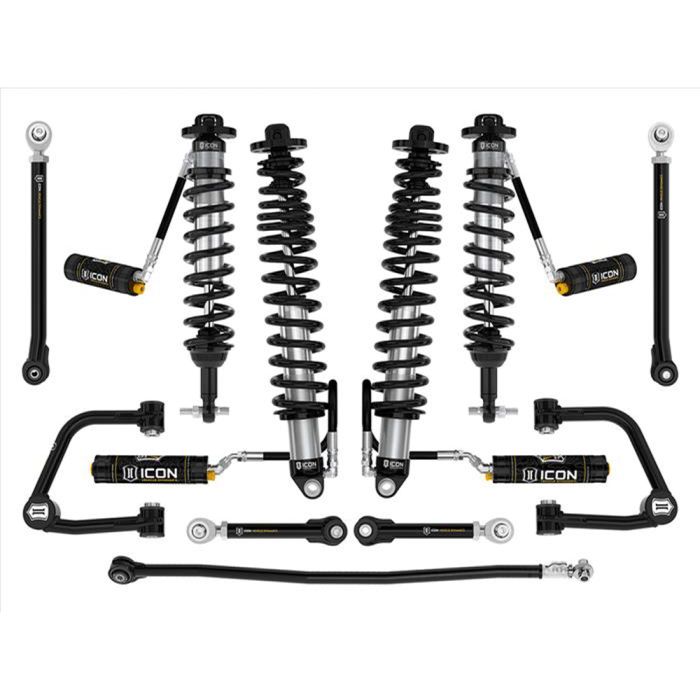

System Includes:
- V.S. 2.5 Series Remote Reservoir CDCV Front Coilover Kit
- V.S. 2.5 Series Remote Reservoir CDCV Rear Coilover Kit
- Tubular Upper Control Arm Kit with Delta Joint Pro
- Tubular Rear Upper Link Kit
- Tubular Rear Lower Link Kit
- Rear Adjustable Track Bar Kit
- Hose Routing Kit for 1-3/4" Links

Tech Info:
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.00” Backspace / 0mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.00” Backspace / 0mm Offset
- Recommended Aftermarket Tires: 35" x 12.50" (37" tires require coilover bump stop spacers along with minor trimming)
- Shocks are fully serviceable. Lift heights indicated are for a stock-equipped vehicle.
- 2-door models will sit taller than 4-door models.
- When running 37" tires use Up Travel Limiters part #611075 in the front.
- When running 37" tires use Up Travel Limiters part #611074 in the rear.
- When running ICON Tubular Lower Links use part #611073.
- Lift heights & app notes based on Sasquatch-equipped vehicles.
- Fitment testing is done with ICON & OE steering components. Due to tight clearances to front coilovers, certain aftermarket steering components may not be compatible.
- Triple-rate rear coils are optimized for improved suspension performance and ride quality for a near-stock weight Bronco. Their softer initial spring rates will net lower than advertised ride heights as weight is added to the rear of the vehicle. For heavier-equipped Broncos, consider part number K40017TX.
- Bronco Everglades will have a front lift height range of 1-1/2" to 2-1/2" over stock.
- When used with 35X12.50 tires, this system provides up to 11-1/2" of front suspension travel and 14" rear. It can be used with 37" or larger when used with separate up-travel limiters.

Vehicle Fitment:
- 2021-2024 Ford Bronco

*Fits Base, Big Bend, Outer Banks, and Black Diamond trim levels.
*Fits trims with Sasquatch package.
*NOT compatible with Bronco Raptor models.
