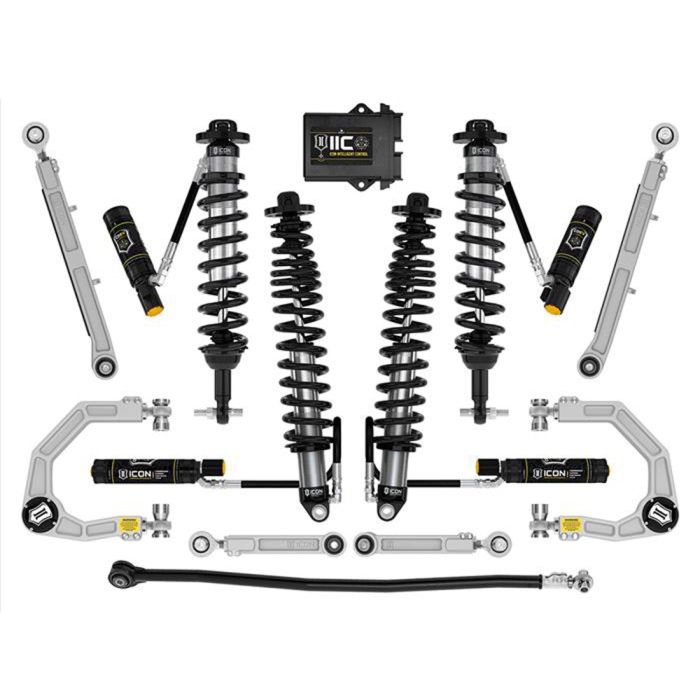

ICON Vehicle Dynamics Stage 8 Billet 3-4" Lift Suspension System Bronco 21-26

ICON Vehicle Dynamics’s Billet Stage-8 Suspension System dramatically improves the offroad performance of your 2021-2026 Bronco. The kit utilizes front and rear coilover shocks specifically tuned to your Bronco for proper shock absorption. Each coilover features an adjustable design, so you can adjust the ride height of your Bronco when hitting the trails. The coilover yields 3-4" of front lift height and 2-3” of rear lift height over stock suspension.

Features and Benefits:
- Up to 11.5" front / 14” rear wheel travel with 35” tire fitment
- Vehicle-specific tuned remote reservoir front and rear coilover shocks for superior damping and vehicle control, even under hard use
- ICON's CDE Valve technology allows for in-vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
- ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user-defined settings to actively make near-instantaneous compression damping changes
- Adjustable coilovers yield up to 3-4" of front lift height and 2-3” of rear lift height over stock 4-door Broncos without the Sasquatch package
- PTFE-lined spherical bearings and application-specific mounting hardware
- Corrosion resistant CAD plated coilover shock bodies with 7/8” diameter shafts
- ICON-engineered coil springs featuring a unique triple-rate rear coil design
- High-strength alloy CNC machined lower bar pins
- Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
- UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation.
- Billet rear lower links improve rear-end articulation and allow for on-vehicle pinion angle adjustment
- Adjustable billet rear upper links improve fuel tank clearance under max articulation and help further free up suspension bind
- Adjustable rear track bar helps to free up bind during rear suspension travel and articulation and offers on-vehicle rear end alignment
- 100% Bolt-on system - no drilling, cutting, or welding necessary for install
- Made in the USA

This Stage 8 kit comes with Billet Aluminum Upper Control Arms which provide on-vehicle caster and camber adjustability. Each control arm also features a Delta Joint PRO technology, enabling up to 90 degrees of freedom of movement. The adjustable billet rear upper links improve fuel tank clearance under max articulation and help further free up suspension bind when on uneven ground. ICON designed this system to be a direct fit replacement for your Bronco, so they easily bolt onto the factory suspension positions. ICON manufactures their Stage-8 Suspension System right here in the USA.

Vehicle Fitment:
- Fits 2021-2026 Bronco
- Fits Base, Big Bend, Outer Banks, and Black Diamond trim levels

*ONLY fits trims without Sasquatch package.
*NOT compatible with Bronco Raptor.
*Does not fit OEM wheels and tires.

 Additional Notes:
- Recommended Aftermarket Wheels: 17x8.5" w/ 4.75” Backspace / 0mm Offset
- Fitment testing is done with ICON & OE steering components. Due to tight clearances to front coilovers, certain aftermarket steering components may not be compatible.
- Triple rate rear coils are optimized for improved suspension performance and ride quality for a near-stock weight Bronco. Their softer initial spring rates will net lower than advertised ride heights as weight is added to the rear of the vehicle. For heavier equipped Broncos, consider part number K40008X.
