ICON Vehicle Dynamics Stage 8 Suspension System Billet 2-3" Lift Sasquatch Bronco 21-26

This Stage 8 Suspension System features CDE Valve technology which allows you to adjust your 2021-2026 Ford Bronco's compression damping through the ICON Intelligent Control (IIC) app on your phone. This feature can almost instantly alter compression settings for each individual shock, making even the wildest of terrains easy to conquer! It is also capable of doing this at a moment's notice, so you can keep your focus on the terrain and let the Stage 8 Suspension System (K40018) do the rest.

Features and Benefits:
- Stage 8 Suspension System for Sasquatch Broncos
- Tuned remote reservoir front & rear coilover shocks
- CDE Valve technology offers in-vehicle compression damping adjustment
- CDE Valve technology provides active adjustment via ICON Intelligent Control (IIC)
- IIC onboard sensors combine G-force readings w/user settings for instant compression damping
- Corrosion-resistant CAD-plated coilover shock bodies with 7/8" diameter shafts
- Improves ride quality and performance with enhanced vehicle control and damping
- Provides 2-3" front lift & 1-1/4" to 2-1/4" rear lift over stock 4-door model w/Sasquatch
- Up to 11-1/2" front / 14" rear wheel travel with 35" tire fitment
- Remote reservoirs increase heat dissipation & resist overheating/cavitation
- Billet aluminum Upper Control Arms offer on-vehicle caster/camber adjustment
- Delta Joint Pro offers 90° of articulation
- Alloy CNC-machined lower bar pins
- Adjustable billet rear upper links free suspension bind & heighten fuel tank clearance under max articulation
- Adjustable rear track bar frees up bind during travel & offers on-vehicle rear end alignment
- 100% bolt-on installation with no drilling, cutting, or welding
- Includes PTFE-lined spherical bearings and mounting hardware
- Made in the USA

This system provides 2 to 3 inches of lift in the front and 1-1/4 to 2-1/4 inches of lift in the rear over stock 4-door Broncos equipped with a Sasquatch Package. It also offers up to 11-1/2 inches of front wheel travel and 14 inches in the rear when combined with 35" tires. Its remote reservoir coilover shocks resist damper fade, overheating, and cavitation by increasing the shock oil volume and enhancing heat dissipation. This system also comes with billet aluminum upper control arms that are equipped with Delta Joint Pro, giving you up to 90 degrees of articulation while adjusting caster and camber on-ride!

Billet rear links provide your Bronco's fuel tank with more clearance during maximum articulation while freeing up suspension bind. Their greaseless bushings and giant FK rod ends are also present on the adjustable track bar, which makes it possible to align the axle for use with any height lift.

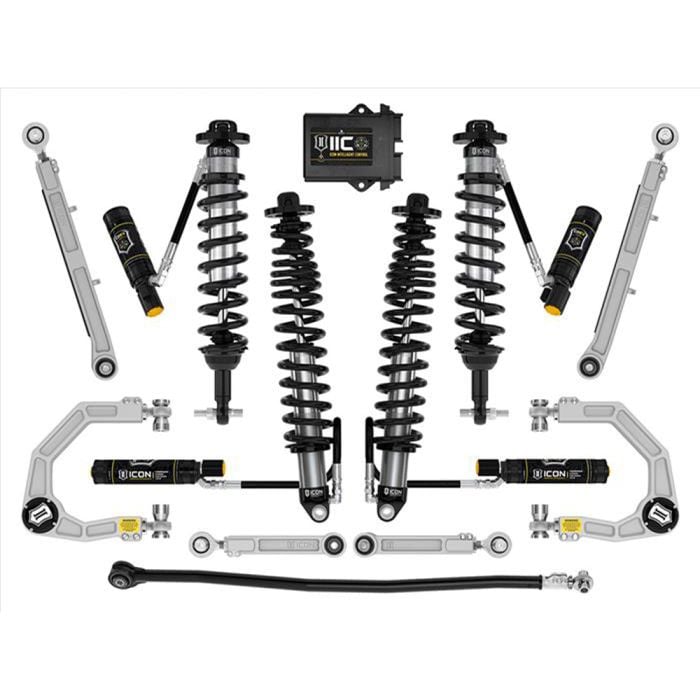

System Includes:
- V.S. 2.5 Series Remote Reservoir CDEV Front Coilover Kit
- V.S. 2.5 Series Remote Reservoir CDEV Rear Coilover Kit
- Billet Aluminum Upper Control Arm Kit with Delta Joint Pro
- Billet Aluminum Rear Upper Link Kit
- Billet Aluminum Rear Lower Link Kit
- Rear Adjustable Track Bar Kit
- ICON Intelligent Control (IIC) Install Kit

Tech Info:
- OEM Wheels & Tires Fitment: No
- Recommended Aftermarket Wheels: 17x8.5" w/ 4.75” Backspace / 0mm Offset
- Recommended Aftermarket Wheels: 18x9" with 5" Backspace / 0mm Offset
- Recommended Aftermarket Wheels: 20x9" with 5" Backspace / 0mm Offset
- Recommended Aftermarket Tires: 35"x12.5" (37" tires require coilover bump stop spacers along with minor trimming)
- Shocks are fully serviceable. Lift heights indicated are for a stock-equipped vehicle.
- 2-door models will sit taller than 4-door models.
- When running 37" tires use Up Travel Limiters part #611075 in the front
- When running 37" tires use Up Travel Limiters part #611074 in the rear
- Lift heights & app notes based on Sasquatch-equipped vehicles
- Fitment testing is done with ICON & OE steering components. Due to tight clearances to front coilovers, certain aftermarket steering components may not be compatible.
- Triple-rate rear coils are optimized for improved suspension performance and ride quality for a near-stock weight Bronco. Their softer initial spring rates will net lower than advertised ride heights as weight is added to the rear of the vehicle. For heavier-equipped Broncos, consider part number K40018X.
- Bronco Everglades will have a front lift height range of 1-1/2" to 2-1/2" over stock.
- When used with 35X12.50 tires, this system provides up to 11-1/2" of front suspension travel and 14" rear. It can be used with 37" or larger when used with separate up-travel limiters. Non-Sasquatch models must have the crash bar removed to clear 35" or larger tires.

Vehicle Fitment:
- 2021-2026 Ford Bronco

*Fits Base, Big Bend, Outer Banks, and Black Diamond trim levels.
*Fits trims with Sasquatch package.
*NOT compatible with Bronco Raptor models.
