ICON Vehicle Dynamics Stage 8 Suspension System Tubular 2-3" Lift Sasquatch Bronco 21-26

This Stage 8 Suspension System (K40018T) by ICON Vehicle Dynamics lifts your 2021-2026 Ford Bronco 2 to 3 inches in the front and 1-1/4 to 2-1/4 inches in the rear over a stock 4-door Sasquatch-equipped Bronco. It also features CDE Valve technology which utilizes a phone-based ICON Intelligent Control (IIC) to provide you with compression damping adjustment at your fingertips! This makes rough and tumble terrains easier to overcome without forcing you to take your eyes off the trail.

Features and Benefits:
- Stage 8 Suspension System for Sasquatch Broncos
- Tuned remote reservoir front & rear coilover shocks
- CDE Valve technology offers in-vehicle compression damping adjustment
- CDE Valve technology provides active adjustment via ICON Intelligent Control (IIC)
- IIC onboard sensors combine G-force readings w/user settings for instant compression damping
- Corrosion-resistant CAD-plated coilover shock bodies with 7/8" diameter shafts
- Improves ride quality and performance with enhanced vehicle control and damping
- Provides 2-3" front lift & 1-1/4" to 2-1/4" rear lift over stock 4-door model w/Sasquatch
- Up to 11-1/2" front / 14" rear wheel travel with 35" tire fitment
- Remote reservoirs increase heat dissipation & resist overheating/cavitation
- Tubular Upper Control Arms offer alignment adjustability & enhanced drivability
- Tubular Rear Lower Links allow for pinion angle adjustment & improve rear end articulation
- Adjustable Tubular Rear Upper Links free suspension bind & heighten fuel tank clearance under max articulation
- Adjustable Rear Track Bar frees up bind during travel & offers on-vehicle rear end alignment
- Delta Joint Pro offers 90° of articulation
- Alloy CNC-machined lower bar pins
- 100% bolt-on installation with no drilling, cutting, or welding
- Includes PTFE-lined spherical bearings and mounting hardware
- Made in the USA

This Stage 8 suspension system alters the compression settings for each of its shocks almost instantly. When used with 35" tires, you'll see up to 11-1/2 inches of front wheel travel and 14 inches of rear wheel travel. Its tubular upper control arms enhance drivability with superior alignment adjustability. It also features tubular rear lower links which improve the articulation of your Bronco's rear end with an adjustable pinion angle, as well as built-in Delta Joint Pros which offer 90 degrees of articulation.

This USA-made suspension system is designed for a 100% bolt-in installation without the need to cut, drill, or weld. It comes with PTFE-lined spherical bearings and includes mounting hardware to help with installation.

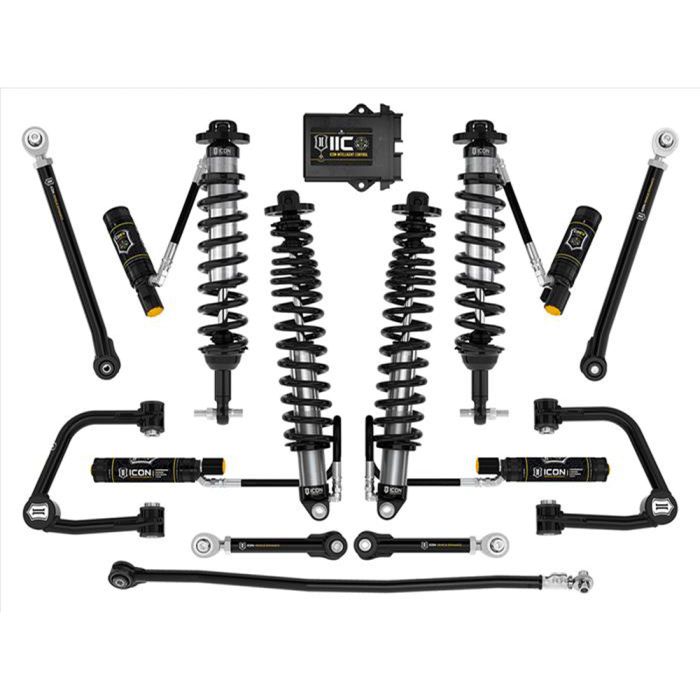

System Includes:
- V.S. 2.5 Series Remote Reservoir CDEV Front Coilover Kit
- V.S. 2.5 Series Remote Reservoir CDEV Rear Coilover Kit
- Tubular Upper Control Arm Kit with Delta Joint Pro
- Tubular Rear Upper Link Kit
- Tubular Rear Lower Link Kit
- Rear Adjustable Track Bar Kit
- Hose Route Kit Rear Link 1-3/4"
- ICON Intelligent Control (IIC) Install Kit

Tech Info:
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: 17x8.5" w/ 4.75” Backspace / 0mm Offset
- Recommended Aftermarket Wheels: 18x9" with 5" Backspace / 0mm Offset
- Recommended Aftermarket Wheels: 20x9" with 5" Backspace / 0mm Offset
- Recommended Aftermarket Tires: 35"x12.5" (37" tires require coilover bump stop spacers along with minor trimming)
- Shocks are fully serviceable. Lift heights indicated are for a stock-equipped vehicle.
- 2-door models will sit taller than 4-door models.
- When running 37" tires use Up Travel Limiters part #611075 in the front.
- When running 37" tires use Up Travel Limiters part #611074 in the rear.
- When running ICON Tubular Lower Links use part #611073.
- Lift heights & app notes based on Sasquatch-equipped vehicles.
- Fitment testing is done with ICON & OE steering components. Due to tight clearances to front coilovers, certain aftermarket steering components may not be compatible.
- Triple-rate rear coils are optimized for improved suspension performance and ride quality for a near-stock weight Bronco. Their softer initial spring rates will net lower than advertised ride heights as weight is added to the rear of the vehicle. For heavier-equipped Broncos, consider part number K40018X.
- Bronco Everglades will have a front lift height range of 1-1/2" to 2-1/2" over stock.
- When used with 35X12.50 tires, this system provides up to 11-1/2" of front suspension travel and 14" rear. It can be used with 37" or larger when used with separate up-travel limiters. Non-Sasquatch models must have the crash bar removed to clear 35" or larger tires.

Vehicle Fitment:
- 2021-2026 Ford Bronco

*Fits Base, Big Bend, Outer Banks, and Black Diamond trim levels.
*Fits trims with Sasquatch package.
*NOT compatible with Bronco Raptor models.
