Icon Vehicle Dynamics VS Coilover Kit 1.75-2.63” 2.5 RR 2WD F-150 2014

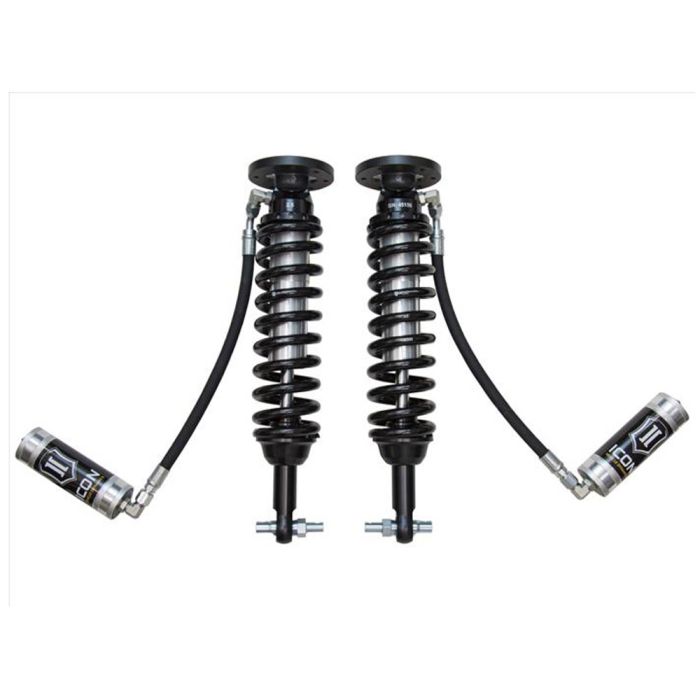

This VS series Coilover Kit from Icon Vehicle Dynamics uses 2.5” remote reservoir coilover shocks to improve the ride quality of your 2014 F-150 when heading offroad. The design of the Coilover provides a large 1.75-2.63” lift to F-150 so you can easily traverse harsher ground on the trails. The larger 2.5” shock body disperses shock across a larger area for shock more effectively compared to the OEM components. A larger internal piston reduces felt vibration on bumps and increases control on rocky terrain. The new system also increases the wheel travel of your F-150 and enables you to mount larger tires without risking wheel rub.

Features and Benefits:
- Increased Wheel Travel and Ride Quality over Stock
- Vehicle Specific Tuned for Superior Shock Damping and Control
- External Reservoir to Attain Cooler Operating Temperatures during Extended Offroad Use
- Adjustable 1.75-3” Lift Height
- Icon Engineered Eibach Springs
- High Strength Alloy CNC Machined Lower Bar Pin
- 6061 Aircraft Grade Aluminum CNC Machined Components
- Corrosion Resistant Cad Plated Shock Body with 7/8” Diameter Shaft
- FK Rod End Bearings for Extended Longevity and Minimal Deflection
- 100% Bolt-on - No Cutting or Welding Necessary for Installation

ICON has partnered with Eibach to engineer customized springs that work in perfect tandem with the rest of the coilover. To prevent corrosion, each component in the kit is fully coated from the factory. ICON designed their system around the original suspension layout, so installation is as simple as swapping out the factory components. Icon Vehicle Dynamics manufactures their VS series Coilover Kit right here in the USA.

Vehicle Fitment:
- Fits 2014 F150
- Fits 2wd models

Technical Information:
- Factory Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: 17x8.5" w/ 5.00” Backspace / 6mm Offset
- Recommended Aftermarket Wheels: 18x9" w/ 5.25" Backspace / 6mm Offset
- Recommended Aftermarket Wheels: 20x9" w/ 5.625" Backspace / 16mm Offset
- Recommended Aftermarket Tires: 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
