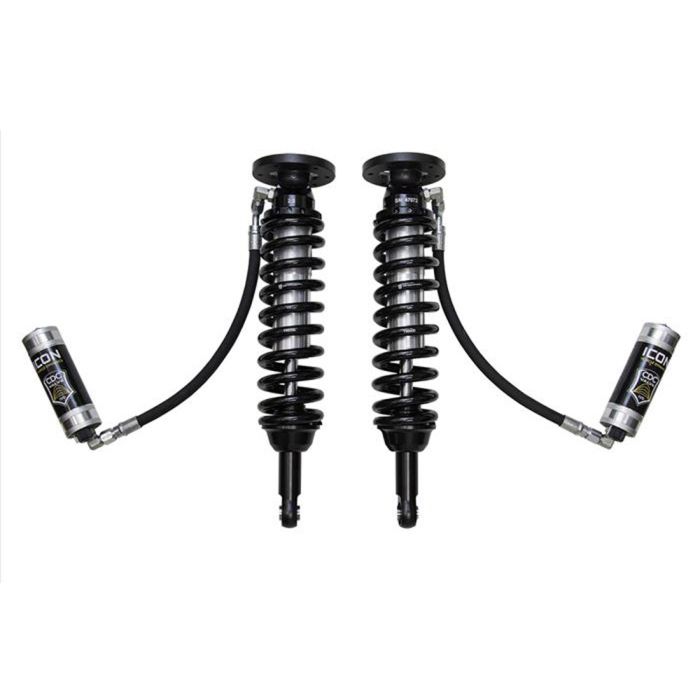

ICON Vehicle Dynamics VS Coilover Kit 1.75-2.63” Lift 2.5” CDCV 4WD F-150 09-13

The VS Series Coilover Kit from ICON Vehicle Dynamics features a 1.75”-2.63” Lift and 2.5” CDCV to offer improved offroad ride quality to your 2009-2013 F-150. The coilover kit includes custom-tuned Eibach springs for excellent shock reduction on bumpy roads. ICON’s larger 2.5“shock body spreads vibration over a wider area for better shock absorption. An external remote reservoir to keep internal piston temperatures cooler during extended use. The system also offers a 1.75”-2.63” adjustable ride height, so you can easily handle rougher roads without worrying about wheel rub. The increased height also increases wheel travel, so you can mount larger tires. The entire system is made to mount onto the original positions, so no drilling is needed.

Features and Benefits:
- Increased Wheel Travel and Ride Quality over Stock
- Vehicle Specific Tuned for Superior Shock Damping and Control
- External Reservoirs to Attain Cooler Operating Temperatures during Extended Offroad Use
- Icon CDCV Equipped for External Tuneability of Your Shocks
- Adjustable 1.75”-2.63” Lift Height
- Icon Engineered Eibach Springs
- 6061 Aircraft Grade Aluminum CNC Machined Components
- Corrosion Resistant Cad Plated Shock Body with 7/8” Diameter Shaft
- FK Rod End Bearings for Extended Longevity and Minimal Deflection
- 100% Bolt-on - Cutting or Welding Necessary for Installation
- Made in the USA

Vehicle Fitment:
- Fits 2009-2013 F-150
- Fits 4WD Models

Technical Information:
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: 17x8.5" w/ 5.00” Backspace / 6mm Offset
- Recommended Aftermarket Wheels: 18x9" w/ 5.25" Backspace / 6mm Offset
- Recommended Aftermarket Wheels: 20x9" w/ 5.625" Backspace / 16mm Offset
- Recommended Aftermarket Tires: 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
