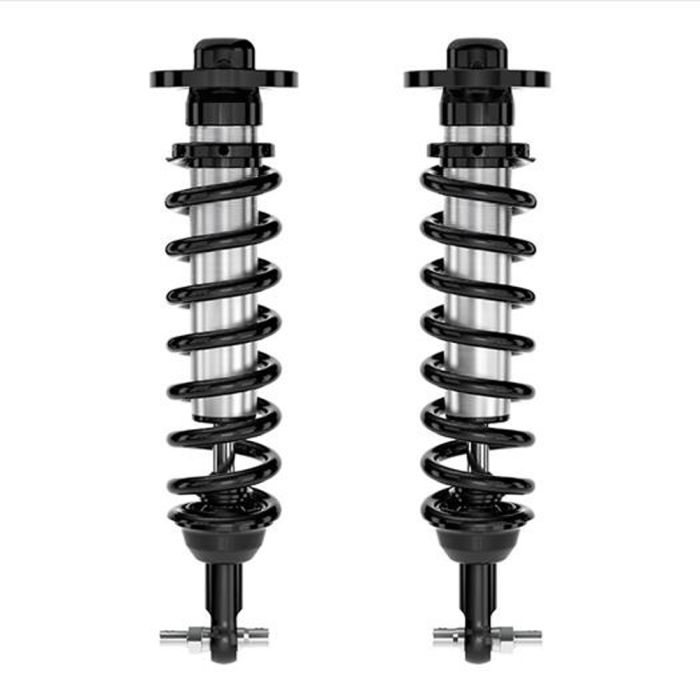

ICON Vehicle Dynamics VS Series Coilover Kit IR 0-3” Lift 4WD F-150 21-26

ICON Vehicle Dynamics designed their VS Series Coilover Kit with a 0”-3” Lift offers an upgrade to your 2021-2026 F-150’s ride quality. The coilover kit features custom-tuned springs from Eibach that are specifically tailored to your truck for incredible shock reduction. The system offers a 0”-3” adjustable ride height, so you can customize the lift you need for your specific needs. The adjustable height also increases wheel travel, so you can mount larger tires. The entire system is made to mount onto the original positions, so no drilling is needed. ICON Vehicle Dynamics makes this VS Series Coilover Kit right here in the USA.

Features and Benefits:
- Increased Wheel Travel and Ride Quality over Stock
- FK Rod End Bearings for Extended Longevity and Minimal Deflection
- 100% Bolt-on - No Drilling, Cutting or Welding Necessary for Installation
- Unique Valving Developed for the Lighter Weight of the 2015+ F-150
- Vehicle Specific Tuned for Superior Shock Damping and Control
- Adjustable 0-2.75” Lift Height
- Icon Engineered Eibach Springs
- 6061 Aircraft Grade Aluminum CNC Machined Components
- Corrosion Resistant Cad Plated Shock Body with 7/8” Shaft
- High Strength Alloy CNC Machined Lower Bar Pin

Vehicle Fitment:
- 2021-2026 Ford F-150
- 4-Wheel Drive models

Technical Information:
- Factory Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: 17x8.5" w/ 5” Backspace / 6mm Offset
- Recommended Aftermarket Wheels: 18x9" w/ 5.25" Backspace / 6mm Offset
- Recommended Aftermarket Wheels: 20x9" w/ 5.625" Backspace / 16mm Offset
- Recommended Aftermarket Tires: 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
- Only compatible with 4-wheel drive (4WD) models
- Lift heights above 2” over stock may require aftermarket front upper control arms to maintain proper alignment
- Models equipped with PowerBoost hybrid engines will have lift height range of 0-2.5" over stock
- Models equipped with Power-Stroke diesel engines will have lift height range of 0-2.25" over stock
- Not compatible with F-150 Tremor or F-150 Raptor
- Not compatible with models equipped with Continuously Controlled Damping (CCD) system
- Not compatible with models equipped with BlueCruise
