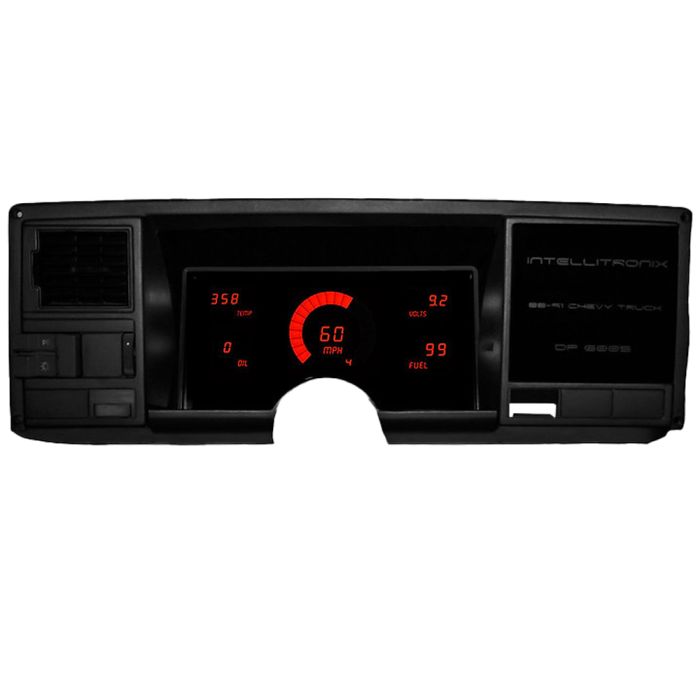

Intellitronix LED Digital Gauge Panel Kit Chevy C/K 1988-1991

Intellitronix designed their LED digital gauge panel kit to be a direct fit addition to your 1988-1991 Chevy or GMC C/K truck. The kit features multiple gauges, including an odometer, trip meter, water pressure display, and oil pressure display. The kit includes a direct-fit printed circuit board for easy installation. A custom smoked plexiglass faceplate provides a modern look to your interior.

Features and Benefits:
- Multiple gauges and read outs
- Tachometer reads 0-9900 RPM in 100 RPM increments.
- Water temperature displays 100-300°F range with sender S8013 included.
- Oil pressure displays 0-100 PSI range. Oil pressure sender included.
- Voltmeter displays a 7.0-25.5 volts range and no sending unit is required.
- Fuel level displays 0-99% range in 1% increments and works with existing GM fuel level sending unit.
- This board features a high beam indicator and reuses the factory turn signals.

Kit Includes:
- Odometer
- Trip meter
- One-button calibration regardless of tire size, gear ratio, or transmission
- 0 to 60 Time 1⁄4 mile elapsed time
- High-speed recall all with the push of a button
- Hooks up directly to your vehicles supplied VSS (vehicle speed sender)

Additional Notes:
- Bezel NOT included.
- When installed, the gauge cluster may disable the cruise control system.
- When ordering, please specify 3/8” or 1/2” bushing for oil pressure sending unit.
