Northern 28” Billet 2-Row Radiator W/ Cooler/ LS Chevy C10 1966-1977

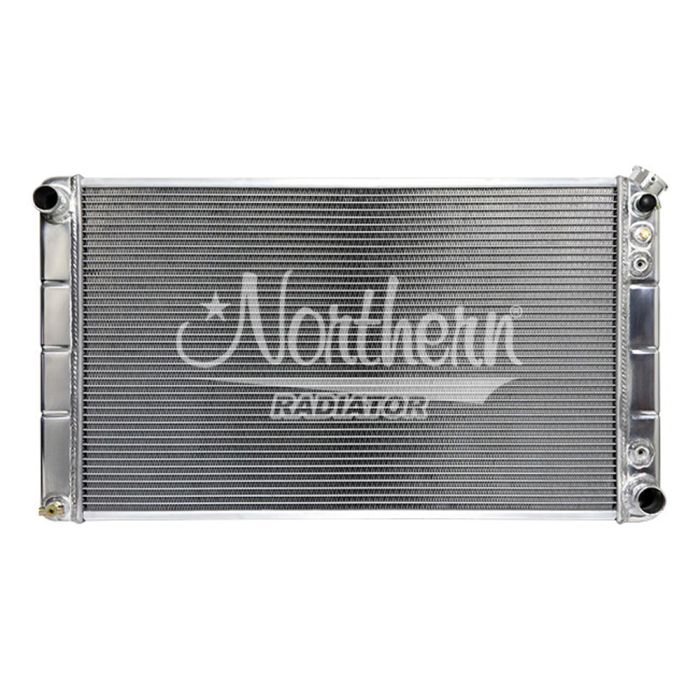

This radiator (205215) provides an excellent cooling complement to your 1966-1977 Chevy C10. It is designed to handle the demands of modern LS powerplants. This radiator features a 2-row core with large 1" tubes for superior cooling efficiency and a 7-plate aluminum transmission cooler for added drivetrain protection. The machined billet aluminum SAE-compliant filler neck provides long-lasting reliability, while a capped 5/8" heater return line and 1/8" NPT sensor port offer additional flexibility.

Features and Benefits:
- 7-plate high-performance aluminum transmission cooler
- 2-row core with 1" tubes
- Billet aluminum SAE-compliant filler neck
- Strong cooling performance
- Built for strength, fitment, and reliability
- Ideal for LS conversions

Specifications:
- Depth: 2-1/4”
- Heater return: 5/8” capped
- Inlet: 1-3/8"
- Outlet: 1-1/2"
- Sensor port: 1/8 NPT
- TOC: 5/16 inverted flare
- Core height: 28-3/4"
- Core width: 17-1/4"
- Overall dimensions: 33" T x 18-1/4" W x 3-1/8" D

Vehicle Fitment:
- 1966-1977 Chevy C10s
