Oracle Lighting Headlight Bulb Conversion Kit LED Without Factory HID Headlights F-150 2004-2014
Oracle Lighting LED Headlight Bulb Conversion Kit for 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013 and 2014 F-150s Without Factory HID Headlights.
Are you sick and tired of not being able to see while you drive your 2004-2014 Ford F-150 at night? It could just be that your headlight lenses are faded and need replacing, or it could be that those standard factory light bulbs just aren't cutting it. Time to upgrade your truck's headlights to premium-quality LED bulbs! Order this complete Oracle Lighting 5236-001 LED Headlight Bulb Conversion Kit for your truck from CJ Pony Parts today!
The unique construction and design of each of these direct-fit upgraded LED bulbs allows for efficient heat dissipation in your truck's headlights. A slim fan is built into each bulb making it cool to the touch, even after hours of continuous use, unlike HID bulbs which can reach melting temperatures. Each bulb is designed specifically to allow a more fluid light pattern, further light visibility, and anti-glare against oncoming traffic. Each of the included bulbs also has both high beam and low beam functions. The Oracle Lighting LED Headlight Bulb Conversion Kit is dust-proof and shockproof, removing the hassle of changing bulbs due to shattering. This complete kit will allow you to simply unplug the old, out-dated bulbs and, using the included H13 connectors and LED drivers, simply plug the new bulbs in and get going. Take 20 minutes to upgrade your favorite Ford truck today!
Upgraded LED Headlight Conversion Kit Features and Benefits:
- Unique Design Allows for Efficient Heat Dissipation
- 4,000 Lumen Output
- 6500k Color Temperature HID Equivalent
- Built-In Slim Fan Keeps Bulb Cool
- Designed to Allow a More Fluid Light Pattern
- Retains Both High and Low Beam Functions
- Dust-proof and Shockproof Construction

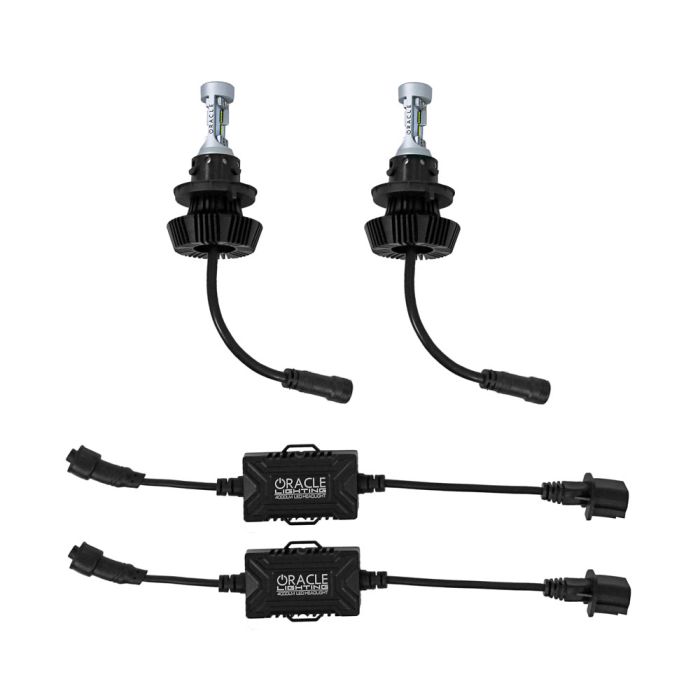

- Full kit includes two (2) H13 LED Bulbs, two (2) H13 Compact LED Drivers and two (2) H13 connectors
- 100% Plug and Play Installation
*Not Compatible with with F-150s equipped with factory HID headlights. Also not compatible with HID-style aftermarket headlight housings.
The Oracle Lighting products that are now available from CJ Pony Parts are truly some of the best and brightest on the market, guaranteeing that you can see much better, and people will have no problem seeing you coming. They utilize the latest in lighting technology, so you can be sure you're getting the most advanced products on the market. Browse our selection below and make your order today!
Order this upgraded Oracle Lighting 5236-001 LED Headlight Bulb Conversion Kit for your 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013 or 2014 F-150 Without Factory HID Headlights today from CJ Pony Parts!
California Residents: Proposition 65 Warning
Related Categories: Ford F-150 Parts, F-150 Lighting, F-150 Headlights, F-150 LED Lighting
Installation Videos
Video Transcript
These LED headlights will be direct replacements for the factory headlights found in your 2005-2014, assuming you don't have the factory projectors. These 6000K color temperature lights will produce a nice bright white, and it'll be a direct plug and play replacement. They include the necessary ballast, along with a built-in fan to keep them nice and cool.
For this installation, you need a quarter- inch ratchet, 10 mm socket, and a Phillips head screwdriver. The first step in the installation is gonna be to remove the headlight housing from the car. To do that, remove this rubber seal first, here. Then one, two, and a third screw down here to remove the headlight. This rubber seal is just held on by this simple plastic screw here. Remove the screw, this'll pop right out.
And what I'm gonna do with this is basically, just fold it out of the way. Now, you can see the lower screw we have to remove. Now, we'll get the two uppers. There's two additional clips back here in the core. To get the headlight out, you sort of want to shimmy it a little bit. That'll pop those clips for you.
To get the headlight off the car now, just release all three harnesses. And now, you're gonna remove the housing. To install our LED headlights with the housing off the car, grab the factory bulb first. Get a good grip on it and turn it counterclockwise to unlatch it, and remove the factory bulb. Make sure the LED is locked into this ring and properly seated, that it hasn't moved around. And this ring here, is gonna go right where the factory headlight bulb was. Down to place, and turn it clockwise.
The next step is to mount these little LED drivers, and you mount them pretty much anywhere you want. We've found on the F-150, there's a nice flat section right here. Get a little double stick tape. It'll stick right there. Make sure it's nice and clean so it sticks. A little alcohol will get the job done. And, place on the core here, and stick it on.
This end here, goes to your factory headlight plug, and these two just screw together. Ready to be reinstalled. Now, you want to grab your plugs and plug everything back in. Make sure you line up the tabs with the side properly. Pop it in and replace the screws. Put this rubber flap back in, reinstall the plastic clip you removed earlier. Repeat the process on the other side. Your installation's finished.
As you can see, the LED headlight makes a huge difference in the front of our 2014 F-150. They're a much brighter, truer light, also a lot more focused than the standard headlight bulbs. The installation's pretty simple. You have to remove the housings. But, overall, it should take you no more than about half an hour, 45 minutes, and you're back on the road in no time.
