Oracle Lighting LED Light Bar Black Integrated Windshield Roof Bronco 21-26
Highlights
- Tap To View 3D Model
- Integrated Housing Design
- LED Lifespan of 50,000+ Hours
- Selectable Clearance Lights

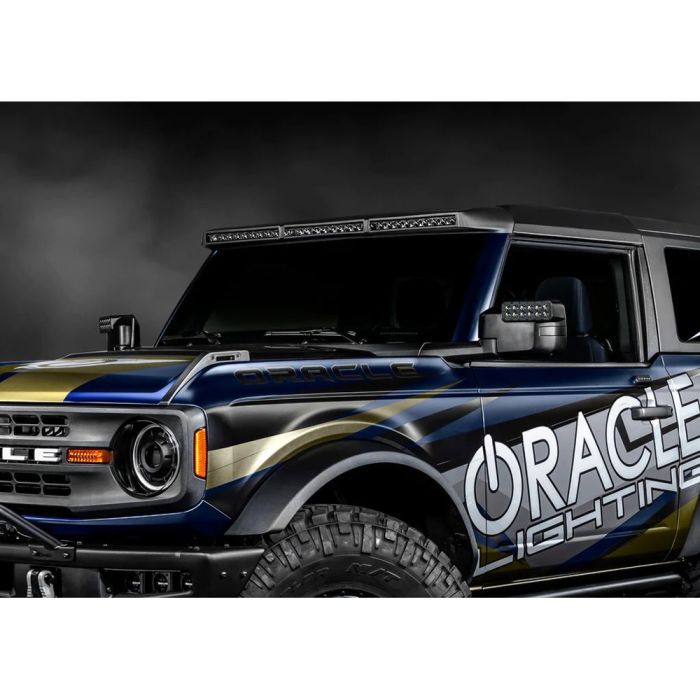

Oracle Lighting Black Integrated Windshield Roof LED Light Bar for 2021-2026 Broncos.
Give your 2021-2026 Bronco a brilliant, eye-catching upgrade with this Oracle Lighting Black Integrated Windshield Roof LED Light Bar! The light bar features reflector-facing LED technology that enhances the light output from thirty 8W LED chips, allowing it to produce 18,000 LM and a projection distance of 600+ meters. It provides a seamless appearance thanks to its molded cowling, which integrates into your ride’s factory roofline. This aerodynamic light bar features polycarbonate housing that matches the look of your stock hard top, making it look as though it came from the factory. If you have a soft top or prefer to remove the top, don't fret—this light bar works with both styles!
Features and Benefits:
- Direct-fit upgrade for 2021-2026 Broncos
- Aerodynamic integrated housing design
- LED lifespan of 50,000+ hours
- Clearance lights W/ selectable color (amber or white)
- Precision LED reflector-facing technology
- Works W/ soft-top Broncos
- Remains functional if the vehicle’s top is removed
- Mounts using factory hardware
- Easy, mod-free installation
- Under/over voltage & reverse polarity protection
- Electronic thermal management
- Paintable housing
To maximize visibility in dark or unsafe conditions, the bar’s 40° driving beam has an advanced optic design and a color temperature of 5500K to 6000K. Built with a lifespan of more than 50,000 hours, this black LED light bar is guaranteed to live a long time. You can choose between an amber or white clearance light color by connecting this product to your aux switch, DRL, or parking lights. If you don’t need an additional clearance light, you can simply leave them disconnected.
This upgrade mounts to your stock accessory mounting points with your factory hardware, so installation is simple and hassle-free. Anti-fog breather valves and waterproof connectors work to protect this light bar from damage. To ensure longevity, these lights are engineered with under/over voltage and reverse polarity protection. This sturdy, polycarbonate light bar has an electronic thermal management system that prevents the LEDs from overheating. The light’s housing can be painted to match your Bronco’s paint color.
Driving Beam Specifications:
- Raw Lumen Light Output: 18,000LM
- Effective Lumen Light Output: 14,200LM
- Peak Intensity: 420,000CD
- Total Wattage: 240 Watts
- Total Amp Draw: 14A @12V DC
- Beam Angle: 40° Driving Beam
- Max Projection Distance: 1Lux@648M
- Color Temperature: 5500K-6000K
- Advanced Optic Design for Optimal Visibility
Material Specifications:
- Outer Housing Material: Polycarbonate
- Lamp Housing Material: 6030 Aluminum
- Reflector Material: Plated Polycarbonate
- Lens: Material: Lexan Polycarbonate
- Lamp Finish: Polyester Powder Coat
- Stainless Steel Anti-Fog Breather Valves
- Molded IP68 Waterproof Connectors
- Waterproof Rating: IP68 Ingress Protection
California Residents: Proposition 65 Warning
Related Categories: Bronco LED Lighting, Bronco Off-Road Lighting, Bronco Light Bars
Installation Difficulty

Novice skill is required for this installation.
