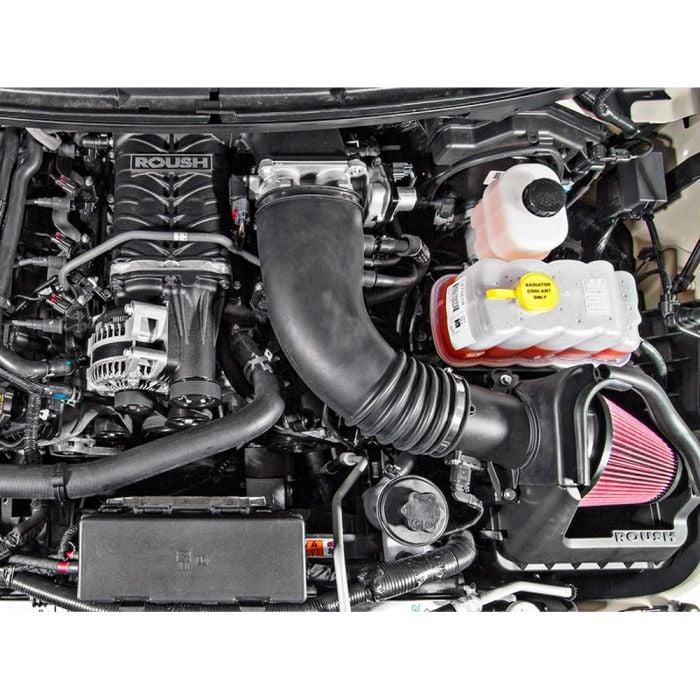

Roush Supercharger Kit Phase 2 590HP 6.2L F-150 Raptor 2011-2014

This F150 Supercharger Kit by ROUSH delivers 590 HP and 590 LB/FT of torque to the 2011-2014 Ford F150 6.2L-2v V8 powertrain, an increase of 179 HP and 156 FT/LB over stock. How do you say no to that kind of power on your Raptor?!

This roots-type, positive displacement Phase 2 supercharger kit specifically designed for your 2011-2014 6.2L F150 Raptor is part of the TVS (Twin Vortices Series) line of superchargers developed by Roush. This kit offers the best in the industry when it comes to both performance and long-lasting reliability. You know this kit will last because it is the same line that has been used and proved for years in Roush-built vehicles.

What makes this type of supercharger kit unique is the twin four-lobe rotors that are twisted 160-degrees for maximum performance and reliability potential. By comparison, the original Eaton rotating assembly featured three lobes twisted 60 degrees. The fourth lobe and added twist, when combined with NEWLY redesigned air inlet and outlet ports, greatly enhance thermal efficiency, deliver higher volumetric capacity, enable higher operating speeds, creates a smoother, more efficient flow of air into the engine and has improved noise and vibration characteristics.

Unlike turbo-charging or adding a centrifugal supercharger, the Roush R2300 TVS supercharger provides instant throttle response that can be seen throughout the entire powerband.

Kit Includes:
- Roush R2300 2.3L TVS Supercharger
- Fuel Charging Assembly With Roush Designed Upper And Lower Aluminum Intake Manifolds
- Twin 60mm Throttle Body
- Throttle Body Spacer
- High-Flow Cold Air Induction System With Air Box, Clean Air Tube And High Flow, Washable Air Filter
- 100mm Mass Air Flow Tube
- Unique High Flow Fuel Rail With 47lb Injectors
- High Efficiency Intercooler System Featuring Dual-Core Radiator
- High Capacity Air-To-Water Intercooler With Formed Hoses And Abrasion-Resistant Sleeves
- All Required Fasteners, Wiring, Brackets, Hoses And Clamps

*This part now utilizes the ROUSH Flash Voucher card to be calibrated using ROUSH Diagnostic Tool (RDT) software and pass-thru device. If you do not have access to an approved pass-thru device, you can send your PCM back to ROUSH to be flashed for an additional $100.00 fee.

ATTENTION: Updated Operating System Requirements for the Roush Diagnostic Tool (RDT). The Technical Service Bulletin TSB 21-0802-AA has been issued by Roush. As of September 10, 2021, Windows 10 will be the ONLY operating system that will be supported by Roush Performance for the Roush Diagnostic Tool (RDT). Older operating systems, such as Windows 7 or earlier Windows operating systems (XP, Vista, etc.), will not be supported. All instances of RDT will need to be updated to the most current release. All previous versions of RDT will NOT be able to program or configure modules due to a software license time-out.

The updated minimum recommended PC Hardware Configuration will be:
- Processor minimum: 2.4 gigahertz (GHz) or greater Intel I5/I7 Dual Core
- Memory minimum: 4 gigabyte (GB) RAM or greater
- Windows 10
- Microsoft .NET Framework 4.0 or later
