Transmission Line Fittings Brass Pair

These new Transmission Line Fittings are designed to meet ASME and SAE conformance, making for industry-standard replacements! These fittings meet OEM specifications and will provide a leak-free connection with ease.

Features and Benefits:
- Sold as a pair
- For air, fuel, oil, power steering, and water applications
- For copper, brass, aluminum, and steel tubing that can be flared
- Meets standard industry specifications (ASME & SAE conformance)

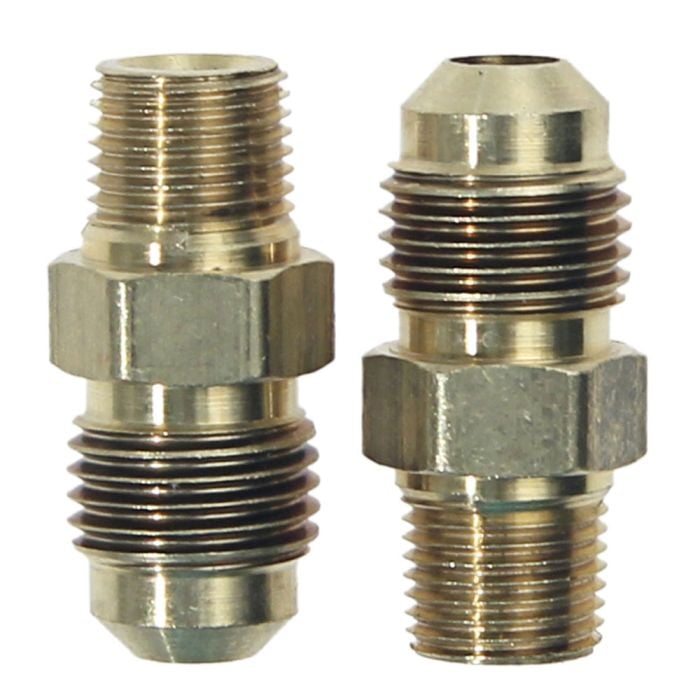

These Transmission Line Fittings are sold as a pair and are made from brass. Each one has a male end, no bend, and a 1/8-inch MPT thread size. They are designed for various applications including air, fuel, and oil, and will work with any copper, brass, aluminum, or steel tubing that is able to be flared. They also provide a maximum working pressure of 2,000 PSI.

Specifications:
- Degree of Bend: None (Straight)
- End 1 Size: 1/2"
- Fitting Angle: Straight
- End 1 Gender: Male
- End 2 Gender: Male
- VMRS Code: 059032033
- Maximum Working Pressure: 2,000 PSI
- Thread Size: 1 – T1 1/2-20
- Fitting Type: Male Thread
- Thread Size: 2 – T2 1/8-27
- Fitting Flare Thread Size: #5 MSF (1/2"-20 )
- Minimum Temperature: -65°F
- Overall Length: 0.88"
- Material: Brass
- Thread Size: 1/8" MPT
- Maximum Temperature: 250°F
- Thread Type: SAE
- Adapter Type: SAE Flare
- Weight: 0.04 lb
- O-Ring Or Seal Included: No
- End 2 Size: 0.13"
- Temperature Range: -65°F to +250°F / -53°C to +121°C
- Tube 1 Inside Diameter: 5/16"
- Degree of Flare: 45°
