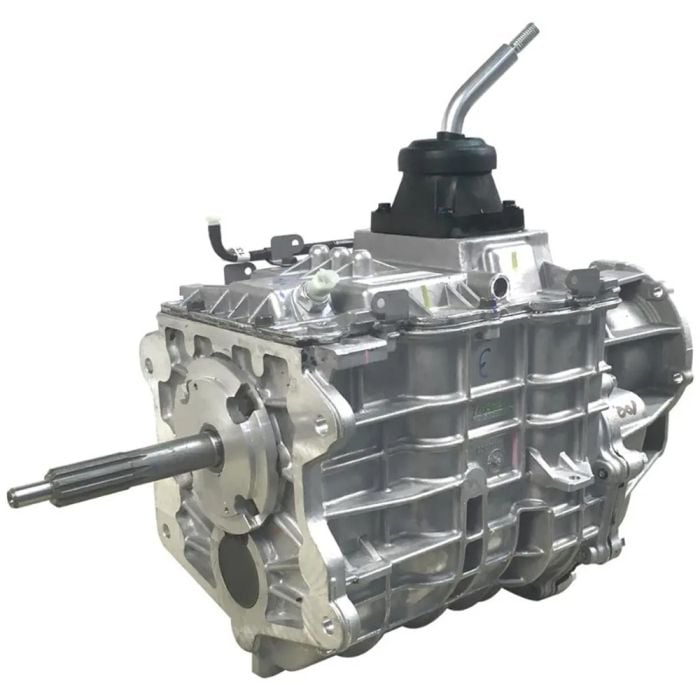

TREMEC TR-4050 Manual Transmission W/ OD Chevy C10 60-87 Heavy-Duty 5-Speed

This manual transmission enhances the drivetrain capabilities of your classic 1960-1987 Chevy C10. It offers a seamless replacement for your NV4500 unit. This transmission is the ideal solution for restoration projects and performance enhancements. It offers a formidable 600 lb/ft of torque and outstanding versatility and strength. Available for 2WD and 4WD to best suit your vintage ride's needs.

Features and Benefits:
- Seamless alternative to NV4500, ensuring perfect fitment
- Engineered for massive 600 lb/ft torque-retaining strength and reliability
- Innovative 6.16 "Granny" 1st gear for robust off-line power
- Overdrive gear is highly economic, reducing fuel consumption
- Distinctive helix gear design for strong mesh and quieter operation
- Aluminum housing reduces weight while enhancing strength
- Incorporates a right-hand 6-bolt PTO for additional vehicle utility
- Multiple rail, internal shifter provides excellent shift feel and performance
- Tapered bearing on input, main, and counter shafts provide excellent internal stability
- Needle bearings under gears reduce friction and noise output
- Advanced synchronizer technology promotes smoother shifting
- 5th gear synchronizer mounted to the countershaft to improve NVH in overdrive
- 3.67-quart oil capacity
- Available for 2WD or 4WD setups

Specifications:
- Gear ratios: 6.16, 3.11, 1.71, 1.00, .76 od. rev 6.03
- Torque capacity: 600 lb.ft / 813 n/m
- Oil capacity: 3.7 QT/3.5ltr.
- Weight: 164 lbs./74kg
- Overall length: 19.5″
- Pilot diameter: .590″
- Index retainer diameter: 5.125″
- Input shaft diameter: 1.125″, 10-spline, 6.5″ length
- 10-spline input shaft/output 23-spline
- Bolt pattern: NV4500

Vehicle Fitment:
- 1960-1987 Chevy C10s
