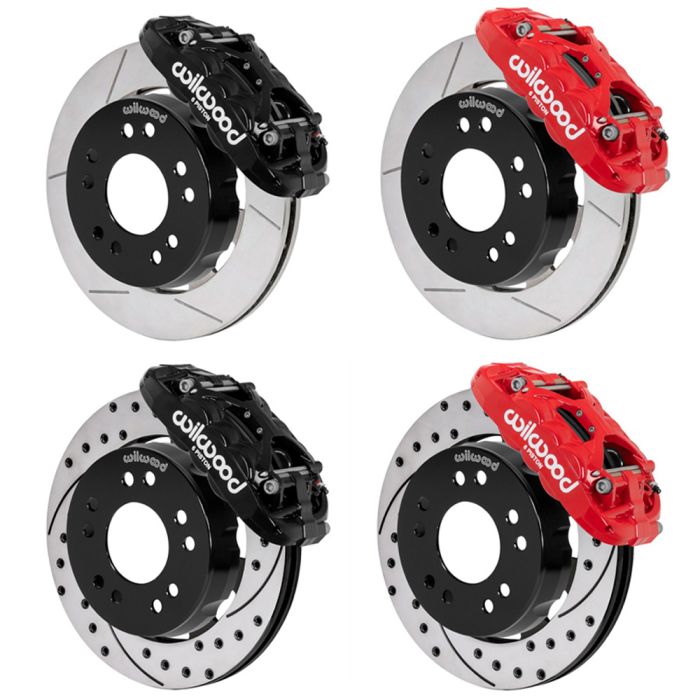

Wilwood Forged XRS6R 13.06" Front Big Brake Kit Chevy C10/ GMC C15 63-87
Highlights
- 13.06" Cast Iron Rotors
- Forged 6-Piston Calipers
- 5-Lug Configuration
- For Wilwood Pro-Spindles
Wilwood Forged XRS6R 13.06" Front Big Brake Kit for 1963-1987 Chevy C10s and GMC C15s with Wilwood Pro-Spindles.
Increase front braking capacity on your 1963-1987 Chevy C10 or GMC C15 with this Wilwood front big brake kit! It combines forged XRS6R six-piston calipers with large 13.06" cast iron rotors to support performance builds.
Features and Benefits:
- Forged XRS6R six-piston calipers
- 13.06" cast iron rotors increase braking capacity
- 1.25"-wide rotors with 32 cooling vanes help manage heat
- Aluminum rotor hats help reduce rotating and unsprung weight
- High-friction brake pads support responsive braking
- Electro-coated finish protects against corrosion
- 5-lug configuration supports 5x4.75 and 5x5.0 bolt patterns
- Designed for Wilwood Pro-Spindles
The 1.25"-wide rotors feature 32 cooling vanes and aluminum hats. High-friction brake pads provide the stopping characteristics needed for street and strip applications. An electro-coated finish helps protect the components against corrosion.
Please Note:
- Requires DBF247 or DBF248 Wilwood Pro-Spindles for proper installation.
- Requires a minimum 17" wheel diameter for brake system clearance.
Vehicle Fitment:
- 1963-1987 Chevy C10
- 1963-1987 GMC C15
California Residents: Proposition 65 Warning
Related Categories: C10 Front Disc Brake Kits, C10 Restomod Brakes
Installation Difficulty
Intermediate skill is required for this installation.
