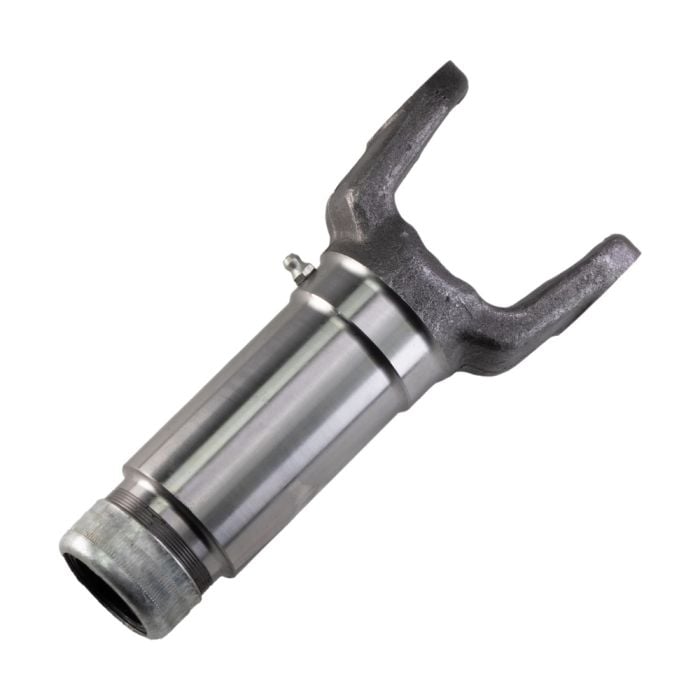

1310 Series 6.88" 16-Spline Driveshaft Slip Yoke Chevy/ GMC Truck 47-98
Highlights
- 16-Spline Design
- 1310 U-Joint
- 6.88" Length
- Steel Construction
1310 Series 16-Spline Driveshaft Slip Yoke with a 6.88" Length for 1947-1998 Chevy and GMC Trucks.
Restore a proper connection within your classic Chevy or GMC drivetrain with this 16-spline driveshaft slip yoke. Designed for select Truck, Blazer, Jimmy, Suburban, Panel Truck, and C/K applications, this slip yoke provides the dimensions needed to connect compatible drivetrain components while allowing the driveshaft to move as the suspension and drivetrain operate.
Features and Benefits:
- Fits select Chevy and GMC drivetrain applications
- Designed for 1310 Series U-joints
- 16-spline configuration
- 1.375"-16 spline size
- 6.88" center-to-end-of-spline measurement
- 1.06" bearing cap diameter
- 3.47" dimension across yoke ears
- 30-degree joint angle
- Ideal for replacing a worn or damaged driveshaft slip yoke
- Durable steel construction
Constructed from steel, the slip yoke features a 1.375"-16 spline size with 16 splines and is designed for a 1310 Series U-joint. It measures 6.88" from the center to the end of the spline, with a 1.06" bearing cap diameter and 3.47" dimension across the yoke ears.
Specifications:
- Bearing Cap Diameter: 1.06"
- Center To End of Spline: 6.88"
- Material: Steel
- Series: 1310 Series
- Spline Size: 1.375 - 16
- Yoke Dimension Across Ears: 3.47
- Spline Quantity: 16
- Joint Angle: 30
Vehicle Fitment:
- 1947-1959 Chevy/GMC Truck
- 1960-1987 Chevy/GMC Truck/Suburban/Panel
- 1969-1991 Blazer/Jimmy/Suburban
- 1988-1998 Chevy C/K
California Residents: Proposition 65 Warning
Related Categories: C10 Drivetrain, C/K Drivetrain, 1947-1959 GMC Truck Parts, 1947-1959 Chevrolet Truck Parts
Vehicle Fitment
This product will fit the following C/K years:
- 1988,
- 1989,
- 1990,
- 1991,
- 1992,
- 1993,
- 1994,
- 1995,
- 1996,
- 1997,
- 1998,
This product will fit the following C10 years:
- 1960,
- 1961,
- 1962,
- 1963,
- 1964,
- 1965,
- 1966,
- 1967,
- 1968,
- 1969,
- 1970,
- 1971,
- 1972,
- 1973,
- 1974,
- 1975,
- 1976,
- 1977,
- 1978,
- 1979,
- 1980,
- 1981,
- 1982,
- 1983,
- 1984,
- 1985,
- 1986,
- 1987,
This product will fit the following 47-59 Chevy Truck years:
- 1947,
- 1948,
- 1949,
- 1950,
- 1951,
- 1952,
- 1953,
- 1954,
- 1955,
- 1956,
- 1957,
- 1958,
- 1959,
This product will fit the following 47-59 GMC Truck years:
- 1947,
- 1948,
- 1949,
- 1950,
- 1951,
- 1952,
- 1953,
- 1954,
- 1955,
- 1956,
- 1957,
- 1958,
- 1959,
