3-Row Aluminum Radiator Kit W/ Shroud And 16” Electric Fan Chevy C10 60-62

A CJ Classic Trucks 3-row aluminum radiator kit is the perfect upgrade for your 1960-1962 Chevy C10. Featuring a shroud and 16” electric fan, this kit elevates your classic truck's efficiency and performance. The aluminum radiator features advanced cooling technology that far surpasses traditional copper or brass units. TIG welding promises durability and a long service life. It mounts seamlessly onto the existing holes of your original setup. This kit is capable of cooling engines producing up to 650 horsepower. Say goodbye to overheating issues and hello to smooth, reliable operation on the go.

Features and Benefits:
- Triple-row design for superior heat dissipation
- Designed to cool up to 650 horsepower
- Mounts with original hardware
- Constructed from lightweight and durable TIG-welded aluminum
- Includes fan shroud and high-performance 16” electric fan

Radiator Specifications:
- Height of 25” with cap
- Width of 26.6”
- Tube thickness of .63”
- Tank thickness of 2.5”

Core Specifications:
- Core height of 18.88”
- Core width of 21-3/4”
- Core thickness of 2”

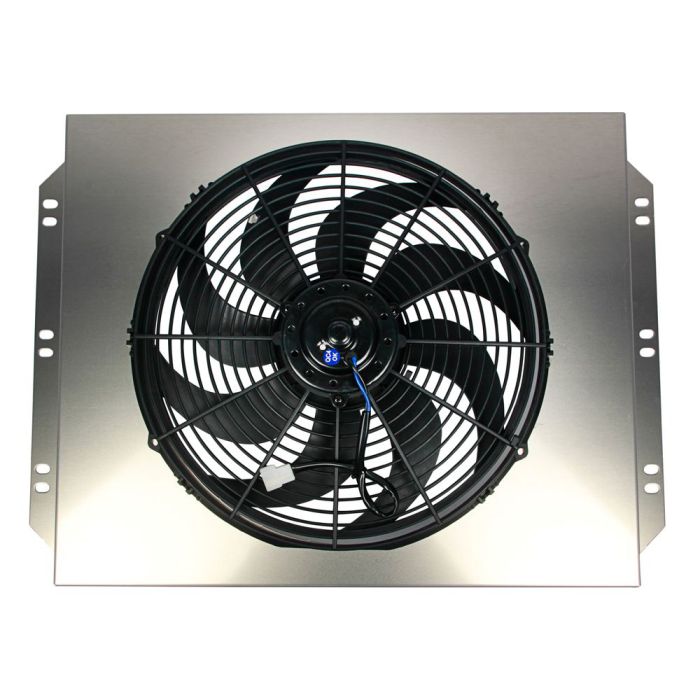

Electric Fan Specifications:
- Dimensions of 15 5/8" wide by 16" tall by 3.5" thick
- Air flow capacity of 2500cfm
- Swiped-blade design for optimal airflow
- Balanced for minimal vibration
