aFe Cold Air Intake System Momentum XP PRO 5R Black F-150 Raptor 2017-2020
Highlights
- Dual Inlet Pro 5R Oiled Filter
- Coolest Air Intake Charge
- Smooth CAD-Designed Housing
- One-Piece Sealed Housing

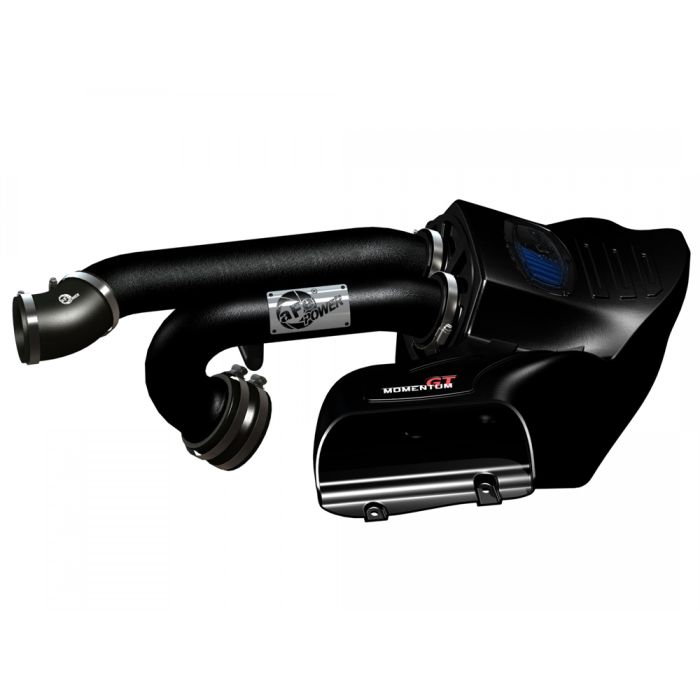

aFe Momentum XP PRO 5R Black Cold Air Intake System for 2017, 2018, 2019, and 2020 F-150 Raptors.
If you want a new cold air intake for your brand-new 2017-2020 F-150 Raptor that’s easy to install and won’t break the bank, you’re in the right place. Take a look at this aFe Momentum XP PRO 5R Black Cold Air Intake System that’s available at CJ Pony Parts!
Cold Air Intake Features & Benefits:
- Smooth CAD-Designed, Roto-Molded, One-Piece Sealed Housing
- Housing Design Helps Ensure Coolest Air Intake Charge Available
- Built-In Sight Window for Easy Inspection of Filter without Disassembly and for Aggressive Style
- Unique Patent-Pending Filter-to-Housing Interface for Easy Installation
- Dual Inlet PRO 5R Pre-Oiled Washable, Reusable 7" Radial Flow Performance Air Filter with 5 Layers of Progressively Finer Mesh Cotton Media for Maximum Airflow and Performance
- Dual Mandrel-Bent Equal-Length Black Powder-Coated 3" Intake Tubes Designed with H-Pipe to Balance Intake Tube Pressures and Maximize Airflow and Velocity
- Exclusive Black Riveted aFe Power Badge
- Quick and Easy to Install: Direct Bolt-On Kit with No Cutting or Drilling Needed on Factory Parts
- All Clamps, Couplings and Hardware Included
This aFe (54-73120-B) Momentum XP PRO 5R Black Cold Air Intake System features a smooth CAD-designed roto-molded one-piece sealed housing with a built-in sight window so you can easily inspect your filter without taking anything apart! This design helps ensure the coolest air intake charge possible too. Not only that, this cold air intake system has a unique patent-pending filter-to-housing interface that makes installation a breeze! This system comes with a dual inlet PRO 5R pre-oiled air filter that you can wash and reuse and has 5 layers of progressively finer mesh cotton media that will give your F-150 maximum airflow and performance. This kit also includes dual mandrel-bent equal-length black powder-coated 3" intake tubes with an H-pipe design that balances the intake tube pressures and maximizes airflow and velocity, and the tubes feature an eye-catching black riveted aFe Power badge on them! Installation is quick and easy thanks to the fact that this is a direct bolt-on kit that won’t require any cutting or drilling on your factory parts. You’ll also get all of the clamps, couplings and hardware you’ll need to get the job done.
Please Note: This cold air intake system is not currently CARB exempt and is not available for sale in California or for use on any vehicle registered with the California Department of Motor Vehicles.
Order an aFe (54-73120-B) Momentum XP PRO 5R Black Cold Air Intake System for your 2017-2020 F-150 Raptor from CJ Pony Parts today!
California Residents: Proposition 65 Warning
Related Categories: Ford F-150 Raptor Parts, Ford F-150 Parts, F-150 Engine, F-150 Raptor Engine, F-150 Cold Air Intakes
Note: This item is not CARB (California Air Resource Board) exempt and is not legal for sale or use in the state of California.
Installation Videos
Video Transcript
The factory intake on the F150 Raptor is quite ugly and restrictive, and that's just not okay for us here at CJ's. So today we're gonna upgrade our intake with this aFe cold air intake.
This is aFe's Momentum XP Pro 5R cold air intake for your 2017 to 18 F150 Raptor. It features three inch mandrill bent aluminum intake tubes with a textured black powder coat finish and a massive pre-oiled air filter protected by a high flow Rotomolded housing. It'll significantly outflow the factory intake for improved performance, and it'll give you a better look under the hood.
For more information and pricing, click the link in the description down below. Now, let's get to the install.
Tools you'll need for this installation, 7 mm socket, 8 mm socket, 1/4" extension, 1/4" ratchet, 13 mm socket, 3/8" extension, 3/8" ratchet, and a trim panel removal tool.
Installing this intake is pretty simple. What we have to do is remove this Y pipe section here. There's two clamps that hold it on, one down here, and one up here. Loosen the 7 mm hose clamp. The one down here is very difficult to see. It's on the back side of the pipe. You'll need a small extension to get to it.
Remove these two clips, and then there's a sensor on the back that we have to unplug. We can remove the factory air filter. Use a flathead screwdriver or a trim panel removal tool to pop this clip off, and the two up front.
Remove this third 13 mm bolt on the side of the factory airbox. Then the whole airbox can be removed. Then the airbox comes right out.
This PCV hose on the driver side inlet pipe right near the turbo needs to be removed. Press on this gray tab right here and pull it off.
Take the provided tube insert, and make sure that the opening at the bottom of the insert is facing the turbo, and install it, along with the PCV hose.
Remove the grommet off your factory airbox and install it into your new aFe airbox. Take the two pieces apart, put the rubber piece in there, and then insert this from the inside. And this goes in place of the factory airbox.
Reinstall the bolt that you previously removed from the factory airbox, and use it to secure your new airbox. Install the two clips up front. Use the provided weather stripping and install this along the rim of the air inlet.
Install your new massive air filter into the airbox. It'll snap right in. Then we can install the intake tubes.
Remove the intake sensor from the factory intake and install it into your new aFe intake. Twist it. Lock it in place. Then install your intake tubes with the provided couplers and clamps. And install the other tube.
The two pipes then get connected together with this hose underneath the two pipes. Once everything's together, you can tighten the clamps.
Last thing you need to do is plug in your intake sensor, and you're done.
Okay, we got our aFe cold air intake installed in our 2017 Raptor. We got rid of that ugly factory intake. Looks a lot better under the hood and now it's gonna breathe a whole lot getter too. Install is really straightforward. It shouldn't take you more than an hour to do this, and before you know it, you'll be heading off-road.
