aFe Cold Air Intake System Momentum XP PRO Dry S Black F-150 Raptor 2017-2020
Highlights
- Includes Mounting Hardware
- 3" Mandrel Bent Piping
- Wrinkle Black Powder Coat
- Quick Installation

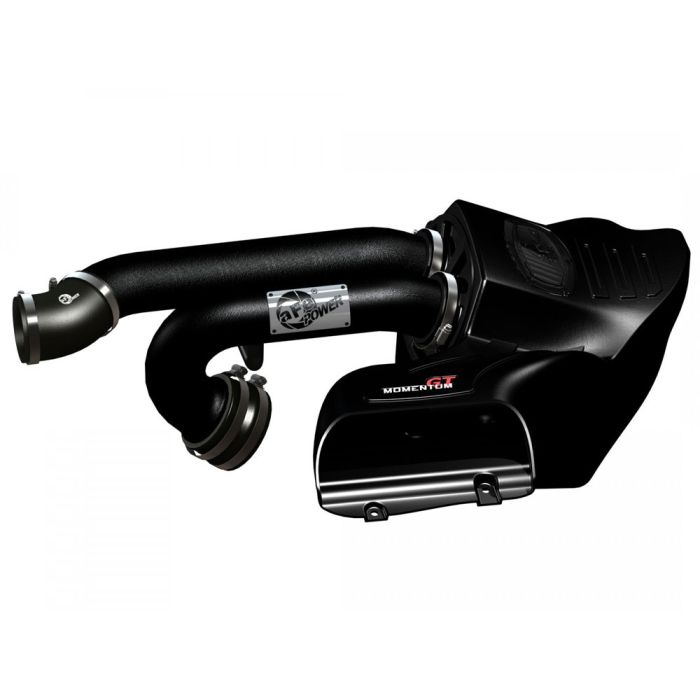

aFe Momentum XP PRO Dry S Black Cold Air Intake System for 2017-2020 F-150 Raptors.
Are you interested in installing a new cold air intake on your 2017-2020 F-150 Raptor? But you don't want to spend hours and hours in your garage? If so, you should definitely take a closer look at this aFe Momentum XP PRO Dry S Cold Air Intake System that's now available at CJ Pony Parts!
Cold Air Intake Features & Benefits:
- Smooth CAD-Designed, Roto-Molded, One-Piece Sealed Housing
- Housing Design Helps Ensure Coolest Air Intake Charge Available
- Built-In Sight Window for Easy Inspection of Filter without Disassembly and for Aggressive Style
- Unique Patent-Pending Filter-to-Housing Interface for Easy Installation
- Dual Inlet PRO Dry S Oil-Free 3-Layer Progressively Finer Porosity Synthetic Media 7" Conical 360-Degree Radial Flow Performance Air Filter for Maximum Convenience with Excellent Filtration Efficiency
- Dual 3" Mandrel-Bent Wrinkle-Black Powder-Coated Equal-Length Aluminum Intake Tubes Designed with H-Pipe to Balance Intake Tube Pressures and Maximize Airflow and Velocity
- Exclusive Black Riveted aFe Power Badge
- Quick and Easy to Install: Direct Bolt-On Kit with No Cutting or Drilling Needed on Factory Parts
- All Clamps, Couplings and Hardware Included
This aFe (51-73120-B) Momentum XP PRO Dry S Cold Air Intake System has a smooth CAD-designed roto-molded one-piece sealed housing with a built-in sight window so you can easily inspect your filter without having to take the whole thing apart! The housing design also helps ensure the coolest air intake charge possible. This cold air intake also has a unique filter-to-housing interface that makes installation easy. It comes with a dual inlet PRO Dry S oil-free air filter that offers maximum convenience and excellent filtration efficiency as well as dual 3" mandrel-bent equal-length aluminum intake tubes with an H-pipe design that balances intake tube pressures and helps maximize airflow and velocity. Installation is quick and easy because it's a direct bolt-on kit, and you won't need to do any drilling or cutting into your factory parts to put it on your pick-up!
Please Note: This cold air intake system is not currently CARB exempt and is not available for sale in California or for use on any vehicle registered with the California Department of Motor Vehicles.
California Residents: Proposition 65 Warning
Related Categories: Ford F-150 Raptor Parts, Ford F-150 Parts, F-150 Engine, F-150 Raptor Engine, F-150 Cold Air Intakes
Note: This item is not CARB (California Air Resource Board) exempt and is not legal for sale or use in the state of California.
Installation Videos
Video Transcript
The F-150 Raptor's a great truck right from the factory, makes ton of power, but there's always room for improvement, so today we're gonna be installing this aFe Cold Air Intake on our 2017 Raptor.
This is aFe's Momentum XP Pro Dry S Cold Air Intake, designed to fit the 2017/18 F-150 Raptor. It features two high-flow texture block powder-coated mandrel-bent tubes with a massive dry air filter protected by a high flow roto-molded housing. It comes with everything you need to make the install a breeze, and to give your Raptor a more custom look and improved performance. For more information and pricing, click the link in the description down below. Now let's get to the install.
Tools you'll need for this installation: 7-millimeter socket, 8-millimeter socket, quarter-inch ratchet, 11-millimeter socket, 13-millimeter socket, 3/8 ratchet, and a trim panel removal tool.
So we actually currently have an AFE intake on this truck, so we can't show you how to remove the factory intake right this second with this truck, so we're gonna show you footage from a previous install on how to remove the factory intake, and then we'll install our new AFE intake.
Disconnect the tube clips on the factory air box. Then there's two 7-millimeter clamps on the air intake. This one's pretty easy to get to, but the next one's kinda hard to see. Once you get that clamp loosened, the upper portion of the intake can come right off. Unplug this intake sensor, and then set your intake aside.
There's a 13-millimeter bolt that secures the lower portion of the air box that needs to be removed. Remove the five plastic clips from the air box. The air box can now pop right off.
With the factory system removed, take the grommet from the factory air box and put onto your new aFe air box. Then take this metal sleeve and install it into the grommet from the inside. Install your aFe air box into the factory location. Place the factory bolt through the grommet that you just installed, and thread it in. To make this easier, you are gonna want some extensions in a 13-millimeter socket.
Take the provided rubber trim and install this around the edge of the air inlet of the air box. This will make for a nice, tight seal against the hood. Then we can install our two clips right here.
Grab the massive air filter and install it into the air box ... just like that. Install the 3-4 inch coupler on the drive's side inlet pipe. Install another clamp onto the coupler. Install the shorter pipe that comes with the kit onto the driver's side inlet tube.
Install the other coupler onto the passenger's side inlet tube with both clamps. Install the intake temperature sensor onto the other inlet tube that comes with the kit. Twist it to lock it in place, and get it into this coupler, and then into the air filter.
Install the crossover tube onto the bottom of the intakes. And now you can go back and tighten all the clamps. And we are done.
Okay, we got our aFe Cold Air Intake installed in our 2017 Raptor, and I'm loving the way it looks. It looks way better than the factory intake, but the texture block isn't over the top or anything crazy. I'd say give yourself an hour, maybe an hour and a half, to do this, and before you know it you'll be heading off-road.
