aFe Cold Air Intake System Momentum XP PRO Dry S Blue F-150 Raptor 2017-2020
Highlights
- Smooth CAD-Designed
- Dual Inlet Pro Dry S Filters
- Dual 3" Mandrel-Bent
- Blue Powder-Coated Tubes

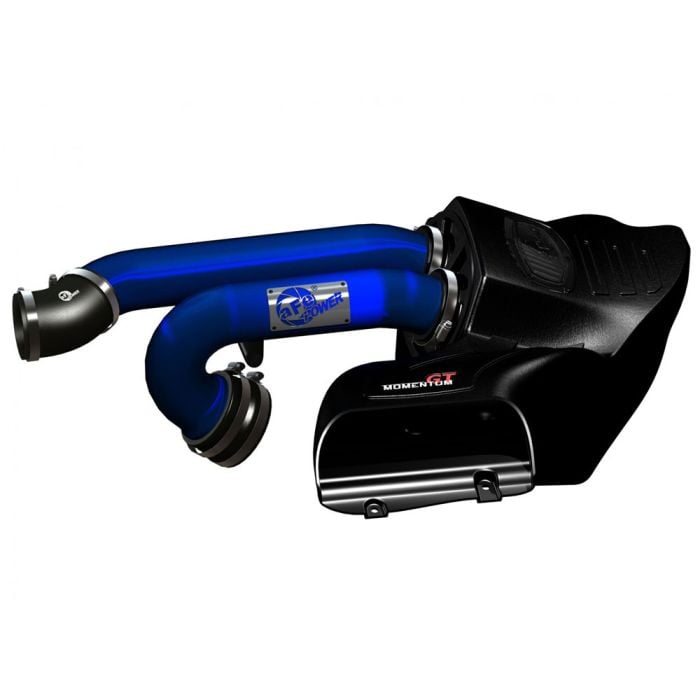

aFe Momentum XP PRO Dry S Blue Cold Air Intake System for 2017-2020 F-150 Raptors.
A new aftermarket cold air intake system is just what you need to give your 2017-2020 F-150 Raptor a power boost. So be sure to pick up this aFe Momentum XP PRO Dry S Blue Cold Air Intake that's now available from CJ Pony Parts!
Cold Air Intake Features & Benefits:
- Smooth CAD-Designed, Roto-Molded, One-Piece Sealed Housing
- Housing Design Helps Ensure Coolest Air Intake Charge Available
- Built-In Sight Window for Easy Inspection of Filter without Disassembly and for Aggressive Style
- Unique Patent-Pending Filter-to-Housing Interface for Easy Installation
- Dual Inlet PRO Dry S Oil-Free 3-Layer Progressively Finer Porosity Synthetic Media 7" Conical 360-Degree Radial Flow Performance Air Filter for Maximum Convenience with Excellent Filtration Efficiency
- Dual 3" Mandrel-Bent Equal-Length Blue Powder-Coated Intake Tubes Designed with H-Pipe to Balance Intake Tube Pressures and Maximize Airflow and Velocity
- Exclusive Black Riveted aFe Power Badge
- Quick and Easy to Install: Direct Bolt-On Kit with No Cutting or Drilling Needed on Factory Parts
- All Clamps, Couplings and Hardware Included
This aFe (51-73120-L) Momentum XP PRO Dry S Blue Cold Air Intake System has a smooth CAD-designed roto-molded one-piece housing that ensures the coolest air intake charge possible! It also has a built-in sight window that allows you to inspect your air filter without having to take the whole thing apart. This cold air intake also has a unique patent-pending filter-to-housing interface that makes installation that much easier. As a matter of fact, you won't have to drill or cut into any of your factory parts to install it! You'll also get a dual inlet PRO Dry S oil-free 3-layer synthetic media air filter that offers maximum convenience and excellent filtration efficiency and dual 3" mandrel-bent blue powder-coated intake tubes with a riveted aFe Power badge on them! These tubes feature an H-pipe design that balances the intake tube pressures and maximizes airflow and velocity. Your new cold air intake system will also come with all of the clamps, couplings and hardware you'll need to install it.
Please Note: This cold air intake system is not currently CARB exempt and is not available for sale in California or for use on any vehicle registered with the California Department of Motor Vehicles.
California Residents: Proposition 65 Warning
Related Categories: Ford F-150 Raptor Parts, Ford F-150 Parts, F-150 Engine, F-150 Raptor Engine, F-150 Cold Air Intakes
Note: This item is not CARB (California Air Resource Board) exempt and is not legal for sale or use in the state of California.
Installation Videos
Video Transcript
The F-150 Raptor is a great truck right from the factory, and it already makes a ton of power but there's always room for improvement. So today we're going to be installing this aFe Cold Air Intake.
This is aFe's Momentum XP Pro Dry S Cold Air Intake, designed to fit the 2017-18 F-150 Raptor. It features two high-flow blue powder coated mandrel-bent intake tubes with a massive dry air filter protected by a high-flow rotor mounted housing. It comes with everything you need to make install a breeze to give your Raptor a more custom look under the hood, and improve the performance.
For more information and pricing, click the link in the description down below. Now let's get to the install.
So we actually currently have an aFe intake on this truck, so we can't show you how to remove the factory intake right this second with this truck. So we're going to show you footage from a previous install on how to remove the factory intake and then we'll install our new aFe intake.
Disconnect the tube clips on the factory air box. Then there's two 7 millimeter clamps on the air intake. This one's pretty easy to get to, but the next one's kind of hard to see.
Once you get that clamp loosened, the upper portion of the intake can come right off. Unplug this intake sensor, and then set your intake aside.
There's a 13 millimeter bolt that secures the lower portion of the air box that needs to be removed. Remove the 5 plastic clips from the air box. The air box can now pop right off.
With the factory system removed, take the grommet from the factory air box and put it onto your new aFe air box. Then take this metal sleeve and install it into the grommet from the inside.
Install your aFe air box into the factory location. Place the factory bolt through the grommet that you just installed and thread it in. To make this easier, you are going to want some extensions on a 13 millimeter socket.
Take the provided rubber trim, and install this around the edge of the air inlet of the air box. This will make for a nice tight seal against the hood. Then we can install our two clips right here.
Grab the massive air filter and install it into the air box, just like that. Install the 3-4 inch coupler on the driver’s side inlet pipe. Install another clamp onto the coupler, and you're going to install the shorter pipe from the driver’s side inlet to this side of the air filter.
Install the other coupler onto the passenger side inlet pipe. Get the other pipe installed into the air filter, and then the passenger side inlet tube, just like that.
Install the crossover hose, connecting both inlet tubes. Now we can tighten all the clamps on this intake.
Last thing we need to do, is to install our temperature sensor in this intake pipe. There's a port on the back that it threads into, just like the factory one.
Okay, we got our aFe Cold Air Intake installed in our 2017 Raptor, and it looks so much better than the factory intake. I'm loving the blue. I'd say give yourself about an hour to install this, and before you know it you'll be heading off-road.
