Baja Designs LED Light Bar OnX6 Arc Dual Control 30" Amber/White

Baja Designs:
523003DC

Highlights

  • Amber and White Lights
  • Waterproof and Submersible
  • 5000K Daylight Color
  • Made in the USA
$1,390.95
Earn
points.
Product Description

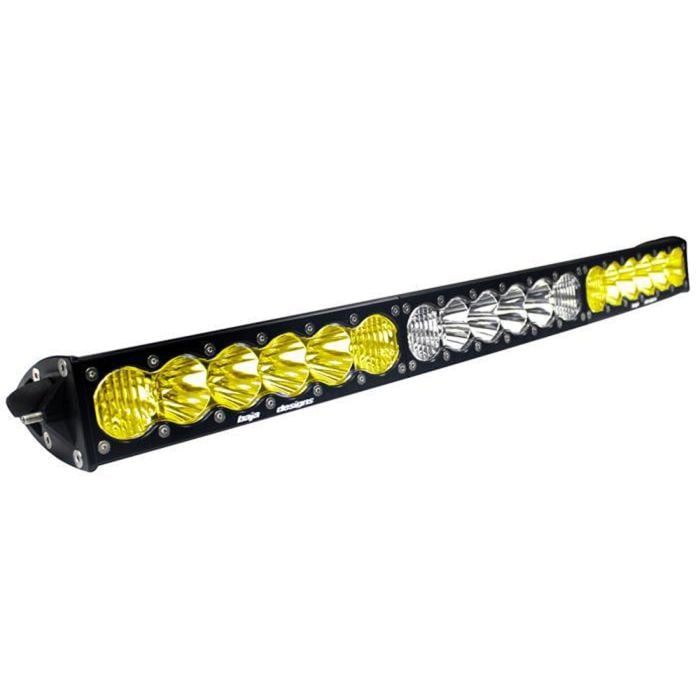

Baja Designs Amber and White 30" Dual Control Arc OnX6 LED Light Bar.

If you’re looking for a high-quality LED light bar that will help illuminate the trail in front of you when you’re off-roading, it’s time to pick up this Baja Designs Amber and White 30" Dual Control Arc OnX6 LED Light Bar that’s now available from CJ Pony Parts!

Features and Benefits:
- Additional Power Cord and Switch Included to Control Inner and Outer Sections Individually
- Versatile: One Light Bar with Both Amber and White Lights
- Maximum Trail Coverage in Single Light
- Driving/Combo Pattern Equipped with Wide Driving (42°) and Spot (6°) Optics for Smooth Blend of Light for Near-Field Applications and Distance
- Replaceable Lenses and Optics
- Waterproof, Rain Proof and Submersible
- CopperDrive®: Only LED Driven at 100%
- 5000K Daylight: Less Driver Fatigue, Natural Color
- IP69K and IK10 Compliant

This Baja Designs (523003DC) OnX6 Arc Dual Control 30" Amber and White LED Light Bar comes with an additional power cord and switch so you can control the inner and outer lights individually! You’ll get a light bar with both amber and white lights and mounting brackets to make installation easier. This LED light bar has a driving/combo pattern that’s equipped with wide driving and spot optics that offer a smooth blend of light for near-field applications and distance. The lenses and optics are replaceable, and the light bar itself is waterproof, rain proof and submersible. Plus, it’s also IP69K and IK10 compliant!

LED Light Bar Specifications:
Lumens: 22,050 Utilizing 18 Cree LEDs
Wattage/Amps: 175.5W / 15A
Dimensions: 30" x 4.29" x 2.69"
Weight: 11.45 lbs.
LED Life Expectancy: 49,930 Hours
Front Lens: Hard-Coated Polycarbonate
Housing: Aircraft Grade Aluminum with Mil-Spec Hard Anodize
Bezel: Billet Machined Aluminum
Hardware and Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof Up to 9ft and Pressure Washable)
IK10 Compliant (Mechanical Impact Testing)

Includes:
- OnX6 30" Arc Dual Control LED Light Bar
- Mounting Brackets

California Residents: Proposition 65 Warning

Related Categories: F-150 Lights, F-150 LED Lighting, F-150 Raptor LED Lighting, Bronco LED Lighting, F-100 Restomod Lighting

Installation & Fitment

Vehicle Fitment

This product will fit the following Bronco years:

This product will fit the following F-100 years:

  • 1948,
  • 1949,
  • 1950,
  • 1951,
  • 1952,
  • 1953,
  • 1954,
  • 1955,
  • 1956,
  • 1957,
  • 1958,
  • 1959,
  • 1960,
  • 1961,
  • 1962,
  • 1963,
  • 1964,
  • 1965,
  • 1966,
  • 1967,
  • 1968,
  • 1969,
  • 1970,
  • 1971,
  • 1972,
  • 1973,
  • 1974,
  • 1975,
  • 1976,
  • 1977,
  • 1978,
  • 1979,

This product will fit the following F-150 years:
