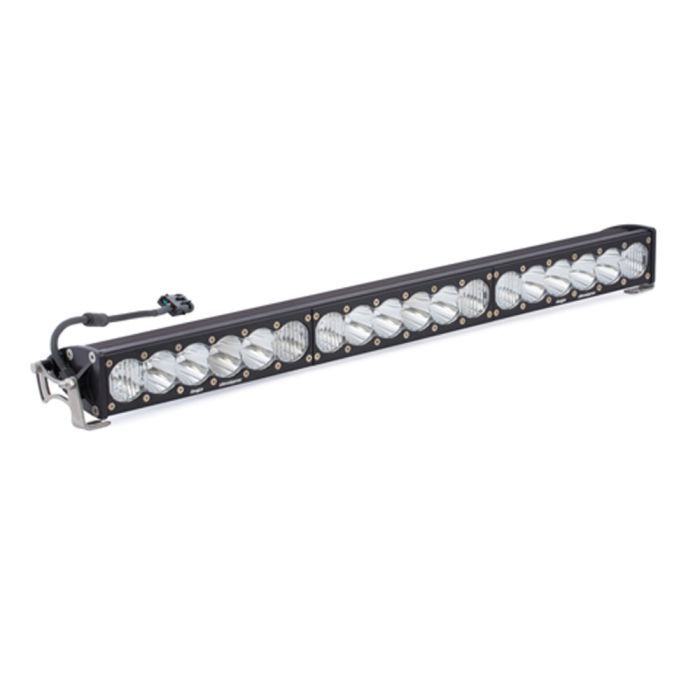

Baja Designs LED Light Bar OnX6 Series 30" Driving/Combination Pattern
Highlights
- Made In The USA!
- Eliminates Flickering
- 30" LED Light Bar
- 5000K Daylight
Baja Designs Driving and Combination Pattern 30" OnX6 Series LED Light Bar.
At an impressive 31,910 lumens, the brightest just got up to 30 percent brighter. The OnX6 LED light bar also integrates Baja DesignsG¦+ trademarked High Speed Spot reflector, the same one used by our Team Enlightened racers, to give you the guaranteed furthest projecting LED Light Bar on the planet. In addition, the OnX6 LED light bar adopts industry standard sizing and is now compatible with aftermarket mounting systems. An industry first 30 Day Satisfaction Guarantee and Limited Lifetime Warranty is included for the ultimate in purchase protection. This bar is equipped with battery management technology.
Features and Benefits:
- Elimination Of Flickering at Low Voltage
- Added Protection to Vehicle Wiring and Systems
- Protection from Dangerous Current Spikes
- Limited Lifetime Warranty Complete Purchase Protection
- uService Replaceable Lenses And Optics
- MoistureBlock Waterproof, Rain Proof, Submersible
- CopperDrive Only LED Driven At 100 percent
- 5000K Daylight Less Driver Fatigue, Natural Color
- Front Lens: Hard Coated Polycarbonate
- Housing: Aircraft Grade Aluminum w/Mil-Spec Hard Anodize
- Bezel: Billet Machined Aluminum
- Hardware and Bracket Material: Stainless Steel
- Exceeds MIL-STD810G (Mil-Spec Testing)
- Built-In Overvoltage Protection
- IP69K (Waterproof up to 9ft and Pressure Washable)
- IK10 Compliant (Mechanical Impact Testing)
Specifications:
- Lumens: (High) 31,910 (Low) 25,450 Utilizing 18 Cree LEDs
- Wattage/Amps: (High) 281W / 21.7A (Low) 225W / 17.1A
- Dimensions: 30 x 4.29 x 2.69 inch
- Weight: 11.45 lbs
- LED Life Expectancy: 49,930 Hours
Light Pattern:Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both wide cornering (42 degree) and Spot (6 degree) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3).
