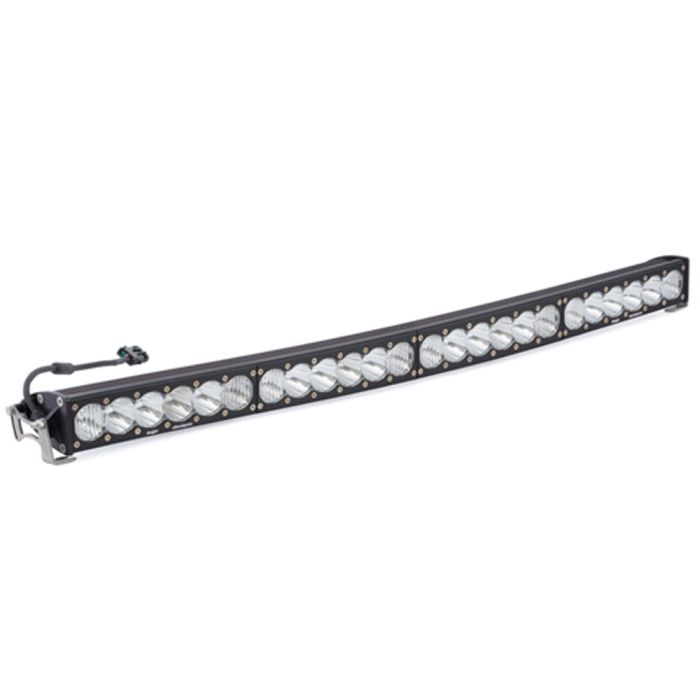

Baja Designs OnX6 Arc Series Light Bar LED 40” Driving/Combo Beam

Balance near and far-sighted lighting within your vehicle all in one using this 40” LED light bar from Baja Designs (524003). Powered by 24 Cree LEDs, this light bar is great at keeping up with high speeds, ensuring ample lighting ahead of the vehicle. It shines in a natural, white light for minimal driver fatigue through all 49,930 hours of its life expectancy. A housing made from aircraft grade aluminum protects it, hard anodized to military specifications. Paired with polycarbonate lenses that are hard coated, it ensures brilliant, lasting lighting.

Features and Benefits:
- Perfect for High-Speed Visibility
- Powered by 24 Cree LEDs
- 42° Wide Driving Beam & 9° Spot Beam
- Balanced Near & Far-Sighted Lighting
- 5000K Natural Color Temp. for Less Driver Fatigue
- LEDs Have Life Expectancy of 49,930 Hours
- Housing Built from Aircraft Grade Aluminum
- Mil-Spec Hard Anodized Coating on Housing
- Billet, Machined, Aluminum Bezel
- Polycarbonate Lenses are Hard-Coated
- Mechanical Impact Tested for IK10 Compliance
- IP69K Rating: Waterproof up to 9’ & Pressure Washable
- Built-In Overvoltage Protection
- Exceeds MIL-STD810G (Mil-Spec Testing)
- Includes Steel Hardware, Brackets, & Hi-Low Dongle

For the utmost strength, the light bar is mechanically impact-tested to achieve IK10 compliance. It’s also IP69K-rated, meaning it can be submerged up to 9’ underwater and pressure washed without harm. On top of that, it exceeds MIL-STD810G Mil-Spec testing, certifying it’s incredibly sturdy. To simplify the installation process, it comes with mounting brackets, a hi-low dongle, and hardware made of stainless steel.

Specifications:
- Dimensions: 40” x 4.29” x 2.69”
- High Lumens: 39,220
- Low Lumens: 32,760
- High Wattage & Amps: 340 Watts & 26.8 Amps
- Low Wattage & Amps: 284 Watts & 22.4 Amps

Vehicle Fitment:
- 1948-1979 Ford F-100
- 1966-1977 Ford Bronco
- 2021-2024 Ford Bronco
- 2009-2024 Ford F-150
