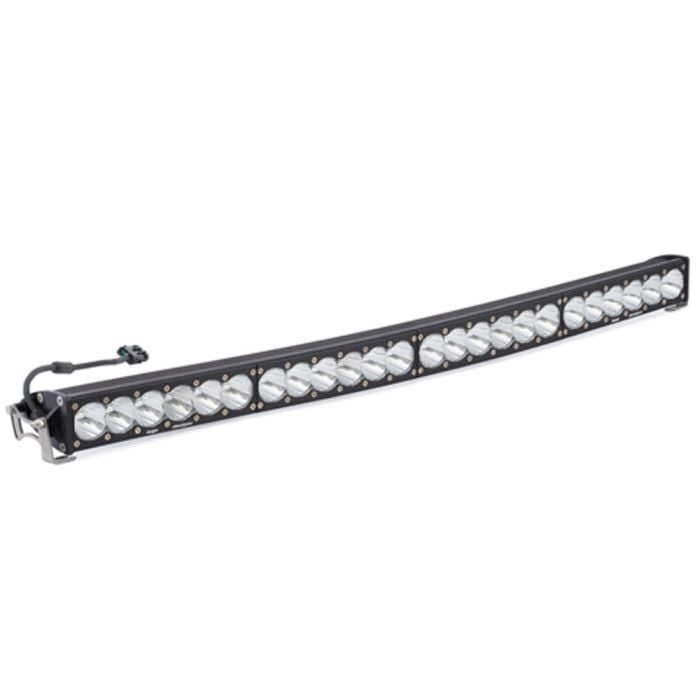

Baja Designs OnX6 Arc Series Light Bar LED 40” Spot Beam

Get lighting further down the road when you’re driving at high speeds with the help of this Baja Designs light bar (524001). At an angle of 9°, this 40” bar uses a longer and narrower spot beam to amplify on-road clarity. 24 Cree LEDs power it, shining in a natural, warm, white color to lessen the strain on your eyes. Polycarbonate lenses and an aircraft grade, aluminum housing protect it, making for a durable duo. While the housing uses a Mil-Spec, hard anodized coating, the lenses sport a simple hard coating. With their combined strength, you can expect 49,930 hours of operation.

Features and Benefits:
- Great for Keeping up with High Speeds
- Powered by 24 Cree LEDs
- Longer, Narrower Spot Beam Angled at 9°
- 5000K Natural Color Temp. for Less Driver Fatigue
- LEDs Have Life Expectancy of 49,930 Hours
- Housing Built from Aircraft Grade Aluminum
- Mil-Spec Hard Anodized Coating on Housing
- Billet, Machined, Aluminum Bezel
- Polycarbonate Lenses are Hard-Coated
- Mechanical Impact Tested for IK10 Compliance
- IP69K Rating: Waterproof up to 9’ & Pressure Washable
- Built-In Overvoltage Protection
- Exceeds MIL-STD810G (Mil-Spec Testing)
- Includes Steel Hardware, Brackets, & Hi-Low Dongle

To guarantee the light bar is capable of withstanding collisions with road debris, it’s mechanically impact tested. This makes it compliant with IK10 standards on top of having an IP69K rating, meaning it can be pressure washed and submerged up to 9’ underwater. However, if the bar ever goes over its voltage range, the built-in overvoltage protection prevents further damages. It’s complete with stainless steel hardware, mounting brackets, and a hi-low dongle for straightforward installation.

Specifications:
- Dimensions: 40” x 4.29” x 2.69”
- High Lumens: 39,220
- Low Lumens: 32,760
- High Wattage & Amps: 340 Watts & 26.8 Amps
- Low Wattage & Amps: 284 Watts & 22.4 Amps

Vehicle Fitment:
- 1948-1979 Ford F-100
- 1966-1977 Ford Bronco
- 2021-2024 Ford Bronco
- 2009-2024 Ford F-150

Please Note: This light bar’s spot beam pattern is designed for use in conjunction with additional wide driving or combo beam lights. It can also be used with lights that combine both.
