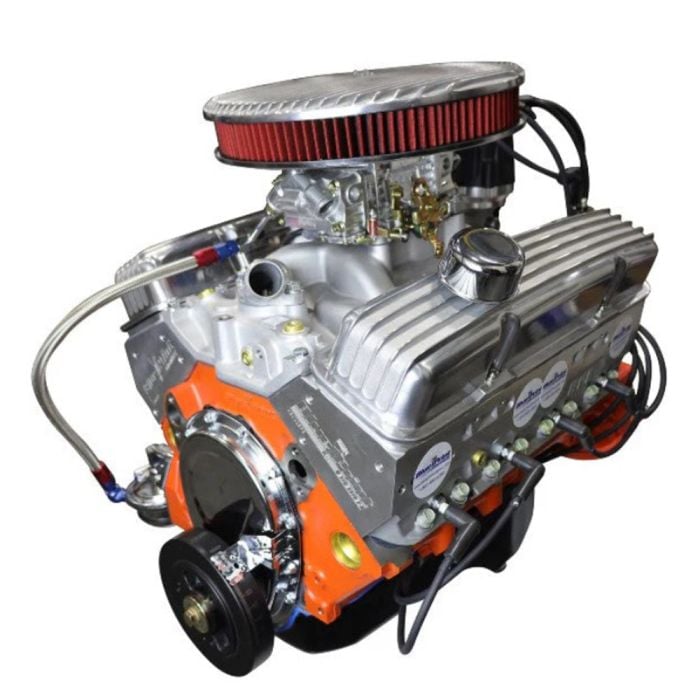

BluePrint Engines GM 383 Crate Engine Low Profile Carbureted Deluxe Dressed 436 HP

This low-profile crate engine (BP38318CTCV) adds loads of horsepower and torque for excellent power gains and a sleek look under the hood. It is designed for vehicles with low firewall or hood clearance, utilizing a maximum air cleaner height of 11.5" measuring from the block end rail. It is also deluxe dressed, including a distributor, spark plug wires, vintage orange valve covers, and more!

Features and Benefits:
- High-strength cast iron deluxe-dressed low profile crate engine block
- 436 Horsepower / 443 FT. LBS. Torque
- Compression Ratio: 10.0:1
- Features 4-bolt main, 4.000" bore, and 1-piece rear main seal
- Drilled and tapped for clutch linkage
- Features mechanical fuel pump provision and passenger side dipstick
- Cast crankshaft with hypereutectic pistons and 3.750" rotation stroke
- OEM-type 5.700" crankshaft connecting rods w/ 150,000 PSI bolts
- Crankshaft is externally balanced front and rear
- Aluminum cylinder heads feature 64cc chamber
- Roller cam design
- Ignition Timing: 34° total at 3500 RPM
- Holley Classic 750cfm vacuum secondary carburetor w/ manual choke
- Backed by BluePrint Engines' 30-month/50,000-mile warranty

Cylinder Head Specifications:
- 64cc Chambers
- 2.02" Intake / 1.60" Exhaust Valves
- 195cc Intake / 75cc Exhaust Runners

Camshaft Specifications:
- 0.544” Intake / 0.555” Exhaust Lift
- 230 Intake / 236 Exhaust Duration
- @ 0.050-110° Lobe Separation

Deluxe Dressed Includes:
- Small Cap Ready to Run Distributor Equipped with Tach Drive and Coil
- Under Header Spark Plug Wires (Perfect for Rams Horn exhaust manifolds)
- Thermostat and Thermostat Housing
- Premium Vintage Valve Covers
- Premium Vintage Air Cleaner
- 6.75" Harmonic Balancer
- Aluminum Intake Manifold
- Fuel Pump and Feed Line
- Oil Pan
- Timing Cover
- Spark Plugs

Additional Notes:
- This engine features a true 4" bore, which mathematically yields 377 CID with a 3.75" stroke.
- NOT for use on pollution-controlled vehicles.
- For use on C2 Corvette, the modification or replacement of factory hood and/or motor mounts will be required.
- Air cleaner has a maximum height of 11.5" when measured from block end rail (horizontal sealing surface under the intake manifold).
- The aftermarket intake manifold installed on this engine may not be compatible with OEM accessory brackets that use intake mounted bosses.
- The performance aluminum cylinder heads on this engine feature a 0.500 raised port vs OEM.
