CJ Classic Trucks Inner Roof Brace In Weld-Thru Primer Set Full Top Bronco 1966-1977

CJ Classic Trucks:


  • Stamped Steel Construction
  • Weld-Thru Primer Finish
  • Fits 1966-1977 Broncos
  • Weld In Application

CJ Classic Trucks Inner Roof Brace Set In Weld-Thru Primer for all 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976 and 1977 Broncos with a Full-Length Hard Top Roof.

Make sure your 1966-1977 Bronco's full length hard top is structurally sound with CJ Classic Trucks's replacement Inner Roof Brace Set in Weld-Thru Primer from CJ Pony Parts! This set comes with replacement drip rails, or gutter edges, for all four sides of your classic Bronco's roof as well as a pair of roof bows that run from side to side. CJ Classic Trucks's inner roof bracing is made from high-grade stamped steel and coated with an innovative weld-thru primer finish for rust protection.

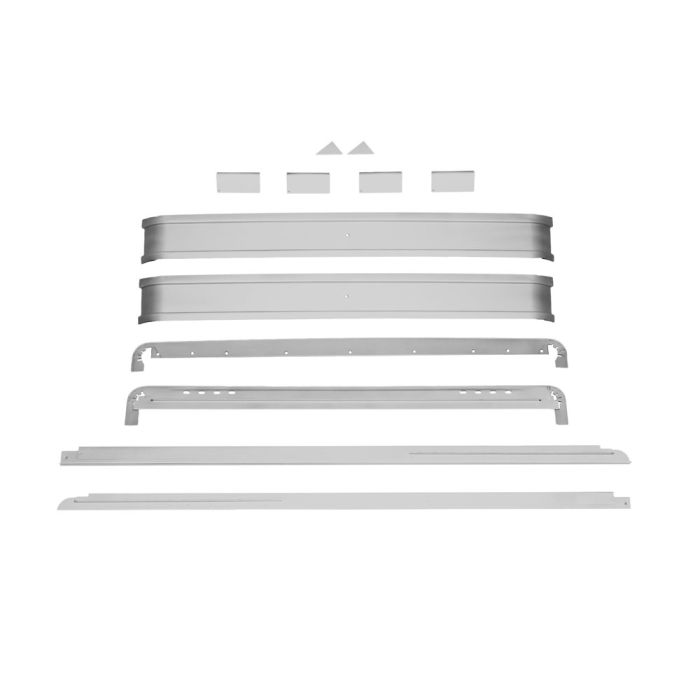

CJ Classic Trucks Inner Roof Brace Set 3752AWT Includes:
- Front gutter edge
- Driver side gutter edge
- Rear gutter edge
- Passenger side gutter edge
- (2) Roof bows

CJ Classic Trucks uses the most up to date tooling in order to create the best and most accurate replacement inner roof brace set available. Stamped from modern 1006 Universal grade automotive steel, CJ Classic Trucks's inner roof brace components are also extremely durable. This newer steel has fewer additives which allow the welds to the roof skin to come out cleaner and tighter, with fewer gasses being emitted than original steel. Best of all, CJ Classic Trucks's replacement inner roof bracing maintains the quality that can be found in your Bronco's original inner roof bracing.

Benefits of a Weld-Thru Primer Finish:
- Helps cut down overall prep-time when welding to another new part that is also coated in weld-thru primer
- Reduces excessive spatter while welding
- Lowers the chances of panel distortion during welding
- Outstanding conductive properties to help minimize high heat zone problems
- Prevents corrosion that could form between overlapped panels or multilayered spot welds
- Makes welding a new panel to old metal much easier
- Drastically lower resistance at the weld surface provides better penetration into the denser, new steel
- Helps eliminate resin build up between welds that could trap moisture in porous steel leading to failure at the weld borders

Tech Tip: To save time and money, CJ Pony Parts offers CJ Classic Trucks's complete Full-Length Roof Panel Assembly (3753WT) which comes with the inner roof bracing already welded to the roof skin.

California Residents: Proposition 65 Warning

Installation Videos

Video Transcript

We’re here with an inner roof brace kit, fitting your 1966 through 1977 Bronco from Dynacorn. This twelve piece kit is designed to fit your full size sixty-six through seventy-seven Bronco roof. It includes everything necessary to include the roof braces, but also includes the drip rails also known as the gutters, which commonly rust out on the classy Bronco roofs. It has both center roof braces, both the left and right gutters, and the sides as well. It also includes all the little small tie in pieces, to tie it all in together. Every piece comes in a weld through primer, ready to install. This kit is designed to fit your full sized Bronco roof. A half cab version is also available here at cjponyparts.com.

Vehicle Fitment

This product will fit the following Bronco years:
