Classic Auto Fuse Series 5-Way Relay and Connector Kit Chevy/ GMC Truck 67-78

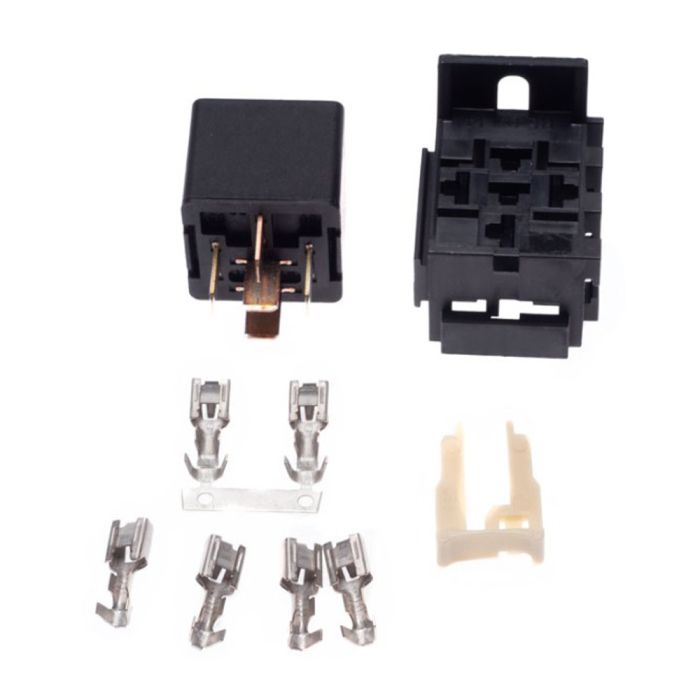

Expand the electrical capabilities of your classic 1967-1978 Chevy or GMC Truck with this CJ Classic Trucks Classic Auto Fuse Series 5-way relay and connector kit. Designed specifically for use with Classic Auto Fuse Series ATO-type dash harnesses, this kit provides a convenient solution for integrating relay-controlled electrical circuits into your truck's power distribution system. The included heavy duty ISO mini SPDT relay features a resistor across the relay coil and is rated for 40 amps on its normally open contacts and 30 amps on its normally closed contacts. This configuration allows the relay to control compatible electrical accessories while providing the flexibility of both normally open and normally closed switching functions.

Features and Benefits:
- Designed for compatible 1967-1978 Chevy and GMC Trucks
- Classic Auto Fuse Series relay and connector kit
- Compatible with Classic Auto Fuse Series ATO-type dash harnesses
- Includes one heavy duty ISO mini SPDT relay
- Single Pole Double Throw relay provides normally open and normally closed switching functions
- Normally open relay contacts rated for 40 amps
- Normally closed relay contacts rated for 30 amps
- Relay features a resistor across the coil
- Includes one mountable five-way relay connector
- Designed to integrate relay-controlled circuits into the electrical system
- 3 terminals accommodate 14- to 18-gauge wiring
- 2 terminals accommodate 10- or 12-gauge wiring
- Includes a secondary terminal locking comb
- Secondary lock helps prevent terminals from backing out of the connector
- Allows the relay to be removed without disturbing the secured terminals
- Connector mounts to compatible Classic Auto Fuse Series fuse block mounting ribs
- Helps organize additional relay-controlled electrical circuits
- Supports fuse blocks with single relay mounting rib configurations
- Compatible with applicable dual-rail relay mounting arrangements
- Dual-relay mounting configurations may require the relay blocks to be joined before installation
- Provides a convenient solution for integrating additional electrical accessories
- Designed to work with existing Classic Auto Fuse Series power distribution components
- Ideal for classic truck electrical upgrades and restoration projects
- Detailed installation instructions included

The kit includes a 5-way relay connector with three terminals designed for 14- to 18-gauge wiring and two terminals compatible with 10- or 12-gauge wiring. A secondary locking comb helps secure the terminals inside the connector housing, preventing them from being pushed out when the relay is installed or removed. The mountable connector is designed to work with the integrated relay mounting ribs found on compatible Classic Auto Fuse Series fuse blocks, helping maintain an organized installation. Depending on the specific fuse block configuration, your application may feature a single mounting rib or a dual-rail arrangement that accommodates an integrated dual-relay block. Detailed instructions provide guidance on identifying the correct mounting locations and installation requirements.

Vehicle Fitment:
- 1967-1978 Chevy C10/C20/C30/K10/K20/K30
- 1967-1972 GMC C1500/C2500/C3500/K1500/K2500
- 1973-1978 GMC C15/C25/C35/K15/K25/K35

Additional Notes:
- Used with 1967-1978 Chevy Truck Classic Auto Fuse Series ATO fuse type dash harnesses.
- Use caution when mounting on Classic Auto Fuse Series dash harnesses to ensure sufficient clearance is available to mount the relay connector(s) on the side of the fuse block containing the mounting ribs. In some applications, the relay and connector will not clear structural devices such as emergency brake pedal system brackets, etc. when the fuse block is installed. See direct fit dash harness instructions which have drawings showing the rib locations on the Classic Auto Fuse Series fuse blocks.
