Classic Auto Fuse Series 15-Way Connector and Terminal Kit Chevy/ GMC Truck 60-78

Keep added electrical accessories organized and easy to service with this Classic Auto Fuse Series 15-Way Connector and Terminal Kit. Designed as an optional accessory for Classic Auto Fuse Series ATO fuse-type dash harnesses, this kit provides a convenient multi-circuit connection point for aftermarket accessories and other electrical equipment in your classic Chevy or GMC truck.

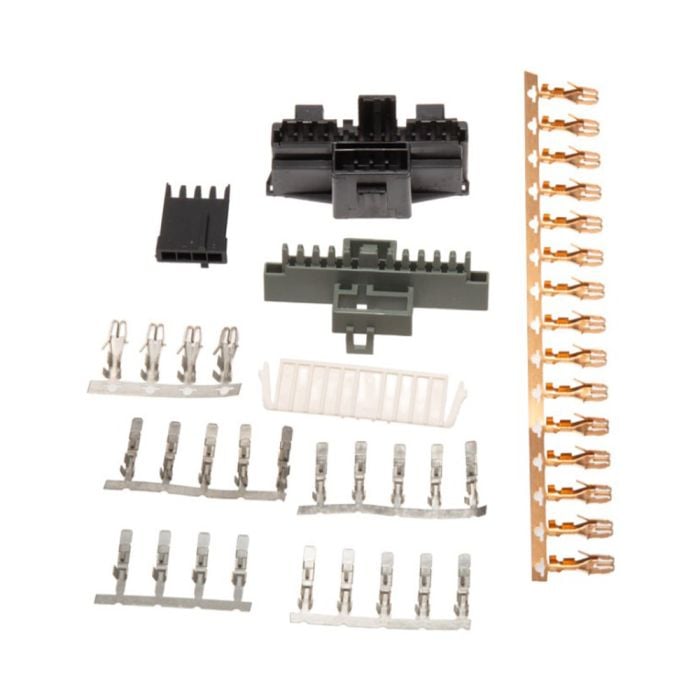

Up to 15 circuits can be routed through a single disconnect, or the circuits can be separated into 11-way and 4-way connections. This allows groups of circuits to be disconnected independently when servicing or modifying your electrical system. The kit includes a 15-way female connector along with 11-way and 4-way male connectors, a secondary lock, and terminals.

Features and Benefits:
- Designed for select 1960-1978 Chevy and GMC trucks
- Optional accessory for Classic Auto Fuse Series dash harnesses
- Compatible with ATO fuse-type applications
- Provides connections for up to 15 electrical circuits
- 15-way female connector
- 11-way male connector
- 4-way male connector
- Allows a single 15-circuit disconnect
- Can separate circuits into independent 11-way and 4-way connections
- Helps organize aftermarket accessory wiring
- Provides an accessible disconnect for future electrical service
- Includes secondary lock and terminals
- Mounts directly to compatible 40mm fuse block mounting rails
- Can also be used as a standalone in-line connector
- Easy installation
- Detailed installation instructions included

For an organized installation, the connector assembly mounts directly to the 40mm mounting rails on compatible Classic Auto Fuse Series fuse blocks. It can also be used independently as a standalone in-line connector when fuse block mounting is not required.

Specifications:
- Fuse Type: ATO
- Maximum Circuit Capacity: 15
- Female Connector: 15-Way
- Male Connectors: 11-Way and 4-Way
- Secondary Lock Included
- Terminals Included
- Mounting Rail Size: 40mm
- Fuse Block Mounting
- Standalone Use Compatible

Vehicle Fitment:
- 1960-1978 Chevy C10/C20/C30/K10/K20/K30
- 1960-1966 GMC C10/C20/C30/K10/K20/K30
- 1967-1972 GMC C1500/C2500/C3500/K1500/K2500
- 1973-1978 GMC C15/C25/C35/K15/K25/K35

Please Note: For use with compatible Classic Auto Fuse Series fuse blocks equipped with 40mm mounting rails.  The connector kit may also be used as a standalone in-line connector.
