Classic Instruments Gauge Set Auto Cross Series With Scott Drake Instrument Bezel 1967-1968

CJ's Part Number:

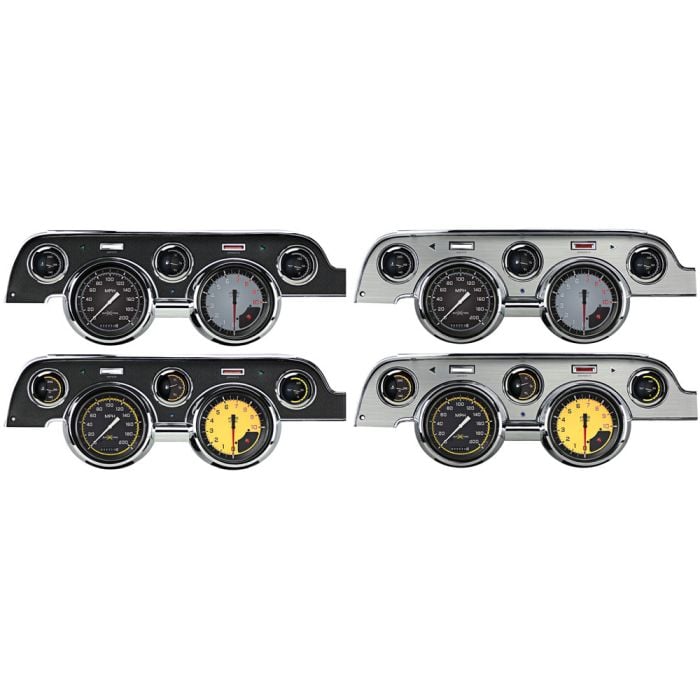

Classic Instruments Auto Cross Series 5 Gauge Set with a Scott Drake Instrument Bezel for all 1967-1968 Mustangs.

This new set of gauges includes a 5" speedometer gauge and a 5" tachometer gauge and three 2-1/8" gauges that measure the oil pressure, fuel level and water temperature respectively. You can choose between gray or yellow gauge face accents with a full length Scott Drake instrument bezel in either black or brushed aluminum and fully customize the appearance of your 1967-1968 Mustang's dash with some modern tech and flare!

Gauges Included:
- 5" 200 MPH Speedometer
- 5" 10,000 RPM Tachometer
- 2-1/8" Fuel Level
- 2-1/8" Oil Pressure
- 2-1/8" Water Temperature

The 200 MPH speedometer and 10,000 RPM tachometer both feature etched diffuser rings, while the vertically oriented 2-1/8" gauges feature cut out "eyelids", with their respective ISO symbols boldly displayed. The tachometer features a built-in, bright red shift indicator light. All of the gauges feature matte black, low step bezels with flat glass and pool cue pointers. This explicit design features clear, concise numerals and indices that are easy to read at any speed in your 1967-1968 Mustang.

Zeus Speedometer Technology (ZST) Features:
- ZST features modern processing software to ensure smooth pointer operation in fluctuating signal connections
- Eliminates need for Speed Signal Interface for electronic transmissions
- Allows speedometers and tachometers to accept any Pulse Generator
- Both gauges now Push Button Programmable—simply press a button to calibrate
- Easy snap-in wiring harness for electrical connections for faster install
- ZST is self-diagnosing, allowing owners the ability to identify common issues
- Updated tachometers have the electronics built-in for an Optional Shift Light

All the necessary sending units, except for a fuel sending unit, as well as an external shift indicator light controller are included. The fuel sending unit is not included but the fuel gauge is set to work with the stock 75-10 ohm fuel sender. All gauges are 12 volt electronic gauges and will mount with a supplied u-bracket. All installation hardware is included as well as an easy to follow step-by-step instruction manual to properly wire in all of your gauges.

The Scott Drake Instrument Bezel features two 5” holes for the tachometer and speedometer gauges, three 2-1/16” holes for fuel level, oil pressure and water temperature gauges and integrated turn signal and high beam indicator lenses for use with OEM bulbs and connectors. The 2-1/16" holes will need to be enlarged slightly for the 2-1/8" gauges to fit properly.

These high quality Scott Drake bezels are precision crafted and will replace your stock unit exactly. This custom five-hole instrument bezel teams up with the 5 gauge set from Classic Instruments to make a great upgrade your instrument panel area while retaining the factory appearance of your 1967-1968 Mustang!

Pick up this premium-quality Classic Instruments (MU67AX) Auto Cross Series 5 Gauge Set with a Scott Drake Instrument Bezel for your classic 1967-1968 Mustang from CJ Pony Parts now!

Installation Difficulty


Novice skill is required for this installation.

Vehicle Fitment

This product will fit the following Mustang years:
