Classic Tube Brake Line Kit Complete Standard Drum Dual Exhaust V8 1965

CJ's Part Number:
100% of 100
Only %1 left

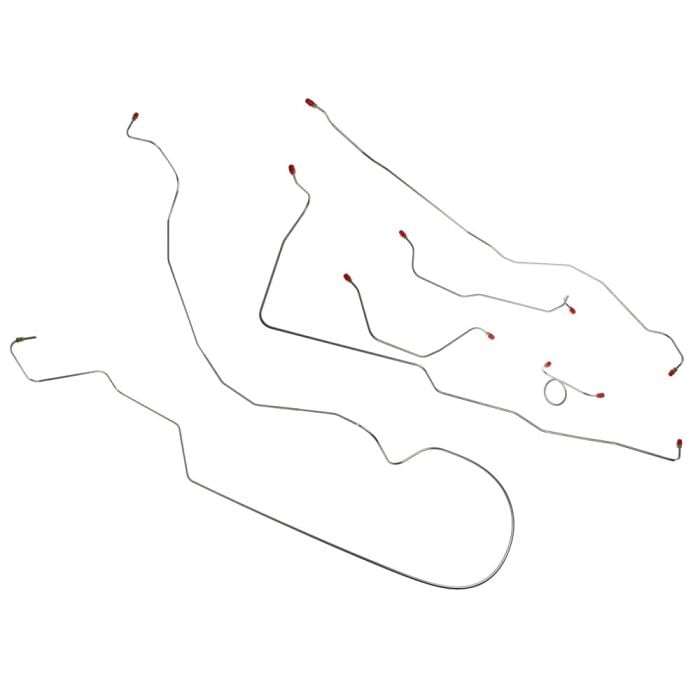

Classic Tube Complete Brake Line Kit for 1965 Dual Exhaust V8 Mustangs with Standard Drum Brakes.

While doing a full restoration on your classic 1965 Mustang, you may realize that some of the brake lines are damaged or rusted out. With this Classic Tube Complete Brake Line Kit for Dual Exhaust V8 Mustangs with Standard Drum Brakes, you can replace all of the brake lines and have a piece of mind that your brakes will work like new!

- Correct Bends and Fittings
- Stainless Steel or Original Steel Lines
- Complete Kit for Front and Rear Brakes

This is an all-in-one brake line replacement kit for your 1965 dual exhaust V8 Mustang with standard drum brakes. The kit Includes all front, intermediate and rear brake lines needed for your Mustang. This kit is available in original steel or stainless steel. Original steel lines will give your Mustang a factory original look while stainless steel lines will provide superior corrosion resistance for a long lasting product. All of the brake lines come with correct bends and fittings for a simple installation process.

Please Note: The larger brake lines come bent in the middle of the line by the manufacturer to make the line shippable.

There are lots of fluids in your Mustang. From gasoline, engine oil, steering fluid, antifreeze and more, there's lots of liquid moving around your engine bay. Allowing these fluids to do their jobs requires the proper tubing. No one makes more tubes for your Mustang than Classic Tube. CJ Pony Parts offers hundreds of tubes from Classic Tube, so you easily find exactly what you need for any job.

Order this Classic Tube Complete Brake Line Kit for your 1965 Dual Exhaust V8 Mustang with Standard Drum Brakes from CJ Pony Parts today!

Installation Videos

Video Transcript

We recently installed a fuel tank in our Forgotten Fastback project car. The next step of the restoration is going to be to install the fuel line that's going to go from the tank up to where the pump mounts. While we're installing that we're going to install the intermediate brake line as well because it shares a lot of the mounting points with the fuel line.

Since we're planning on some reasonable horsepower upgrades to our Forgotten Fastback we're going to begin with this 3/8 inch line originally found on the Shelby models. When this line ships to you, it does ship bent, which is the only way to ship it due to the length of the line. You will want to straighten it out before you install it.

To install our lines, we'll be using AMK's brake line and fuel line clip kit. The kit's nice because it breaks down everything into individual packaging. You have your lines that are shared between the brake and fuel line, the specific fuel line brackets, and the specific hardware for the brake lines.

For this installation you need a jack and jack stands or lift, 3/8 ratchet, 1/2" socket, short extension, pliers, wire or hose cutters, drill, 9/32 drill bit, a flat head screwdriver and safety glasses.

You'll want to start by getting your Mustang up in the air. Since the fuel line comes around the frame rail and through the apron, you'll want to remove the driver's side tire to give yourself more room. Our fuel lines are pre-bent so they're going to get you close, but they're not going to be a perfect fit. You will have to maneuver it a little bit to get it into place. Before we put the line in, I'm going to show you the basic route the fuel line is going to take.

The fuel will want to go through this lower hole here into the engine bay. We'll then come down here going to go across your frame rail between your control arm, come out this end here. We'll follow this down and then cross the frame rail below where the steering box is, and then it's going to come up here go across this lower support underneath the cross member mount at which point it's going to cut up into this tunnel area.

It's going to go across the tunnel and it'll come back here to the transition pan area.It's going to come up the transition pan and then it's going to go across out to the frame rail again. It'll go underneath this back along the frame rail to the tank, and it's going to go straight across the tank and come down to your sending unit.

We'll start by installing the grommet in this hole here where the fuel line goes into the engine bay. The grommet is designed for the smaller lines, this 3/8 will fit through it. Now we're going to start straightening the line out for installation. The end that has the shorter 90 degree bend is going to be the one that goes up front to our fuel pump. This is where we're going to start with. You just want to get it relatively straight for now. It will straighten out as we install it.

We'll start by bringing our fuel line up through our control arms, bring it up into place and push it through the grommet. Now we're going to put the fuel line over the rear axle. Once you get this tighter to the chassis it'll be harder to get this over. It's easier to bend it now and then we'll tighten it down later.

I'm going to install the first bracket up front here. Our next mounting clip is going to install right here on the cross member. Since this is a replacement panel there is no hole there so we're going to drill it first. You'll want to line up the line where it's going to go and then drill right next to it. This is the first of the clips that are going to hold both the brake and the fuel line at the same time. We're going to put it on loosely to hold the fuel line in place and then we'll get our brake line on there next.

Now we're going to start running our brake line. The end that has the 90 degree is going to go towards your master cylinder. The end with the "u" is going to go towards the back. Now we'll loosen up our fuel line brackets so we can install the brake line in it. Just keep it tight enough so it doesn't fall off. You don't want to tighten down all the way because there's still going to be some adjustment made before we actually finalize it.

Now we're going to install the clips in the transmission tunnel. This clip here will hold both the fuel and the brake line. These are just sitting here. You'll want to put it in a set a pliers and then squeeze when you have it installed. Now we're going to install the rear one. Now we're going to tweak our fuel line into place a little bit, and our next bracket's going to go up here. Again it's a replacement frame rail so we're going to have to drill a hole. Put our bracket on the line.

Now I'm going to drill another hole in the transition pan for another clip back here. Now we need to drill another hole in the front lip of the fuel tank mounting area. Since we're drilling towards the tank you want to be really careful here. Put a piece of metal behind it so when you drill through you don't hit your tank.

Now we're going to take the clip, slide it in the hole we just drilled, and then we'll slide our fuel line up into the clip. Then we'll line up our hose so we can measure it and cut a piece off. Now we're going to move back to the front and put our last bracket right here between the three bolts for our steering box to hold the line to the frame rail. Now we'll tighten up this bolt and our fuel line installation is finished.

Now that our fuel line's finished, next time out we'll order up some brake hoses and we'll finish up our braking system as well. To follow the restoration of our Forgotten Fastback and for more installation videos, make sure you subscribe to our YouTube Channel.

Vehicle Fitment

This product will fit the following Mustang years:
