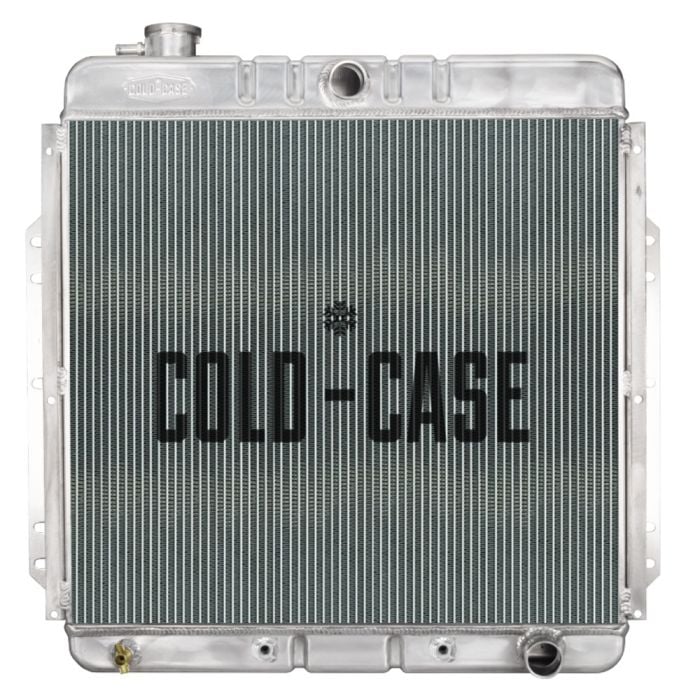

Cold Case Aluminum 2 Row Radiator F-100 53-56 w/ Chevy Small/Big Block Swap

The Cold Case performance radiator fits 1953-1956 F-100s (FOT566A). It is designed for F-100s with Chevrolet small block or big block engine conversions. It is constructed from fully TIG-welded aluminum with a polished finish. It features dual 1.25-inch oversized tubes, 16 fins-per-inch, and corrugated-fin technology. This provides for exceptional heat transfer and increased cooling capacity. A direct-fit upgrade, it works with both automatic and manual transmissions. It is pressure tested for dependable performance. Its high-capacity design helps maintain stable temperatures under load. This makes it an ideal solution for modern powerplants in classic F-100 builds.

Features and Benefits:
- Designed for Chevy small/big block swaps
- 100% TIG-welded aluminum construction
- Polished, show-quality finish
- Two 1.25" oversized cooling tubes
- 16 fins per inch for maximum cooling
- Corrugated fins for improved heat transfer
- Increased coolant capacity and surface area
- Direct-fit installation
- Works with auto or manual transmissions
- Pressure tested for reliability

Radiator Specs:
- Core Height: 20.25"
- Core Width: 22.75"
- Overall Height: 25.50"
- Overall Width: 26.20"
- Overall Thickness: 3"
- Upper Hose: 1.5"
- Lower Hose: 1.75"
- Tubes: (2) 1.25"
- Trans Cooler Fitting: 1/8" NPT

Vehicle Fitment:
- 1953-1956 F-100
