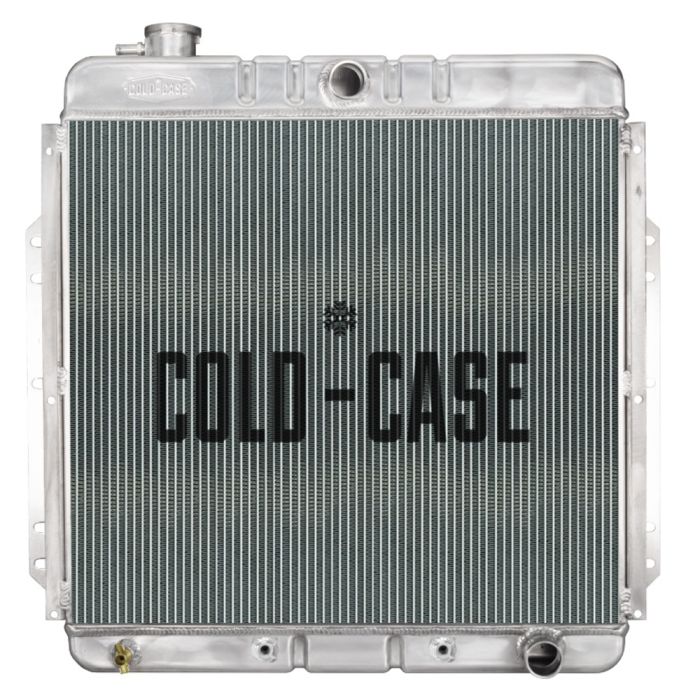

Cold Case Aluminum 2 Row Radiator w/ 16" Fan F-100 53-56 w/ Chevy Small/ Big Block Swaps

The aluminum 2 row radiator fits 1953-1956 F-100s (FOT566AK). It delivers dependable cooling for F-100s with Chevy small or big block engine conversions. It is made from polished, TIG-welded aluminum. It has corrugated fins and dual 1.25” tubes. It increases coolant capacity and surface area for consistent temperature control. The package includes a 16” cooling fan and all-metal shroud. This delivers strong airflow and added protection. It is fully pressure tested and compatible with automatic or manual transmissions.

Features and Benefits:
- For Chevy small or big block engine swaps
- TIG-welded aluminum construction
- Polished exterior finish
- 16 fins per inch
- Corrugated fin design
- (2) 1.25” cooling tubes
- Includes 16” cooling fan
- All-metal fan shroud
- Direct-fit configuration
- Works with auto or manual transmissions
- Pressure tested
- Increased coolant capacity

Radiator Specs:
- Core Height: 20.25”
- Core Width: 22.75”
- Overall Height: 25.50”
- Overall Width: 26.20” (top mounting bolt holes)
- Overall Thickness: 3”
- Upper Hose: 1.5”
- Lower Hose: 1.75”
- (2) Tubes: 1.25”
- Trans Cooler Fitting: 1/8” NPT

Vehicle Fitment:
- 1953-1956 F-100
