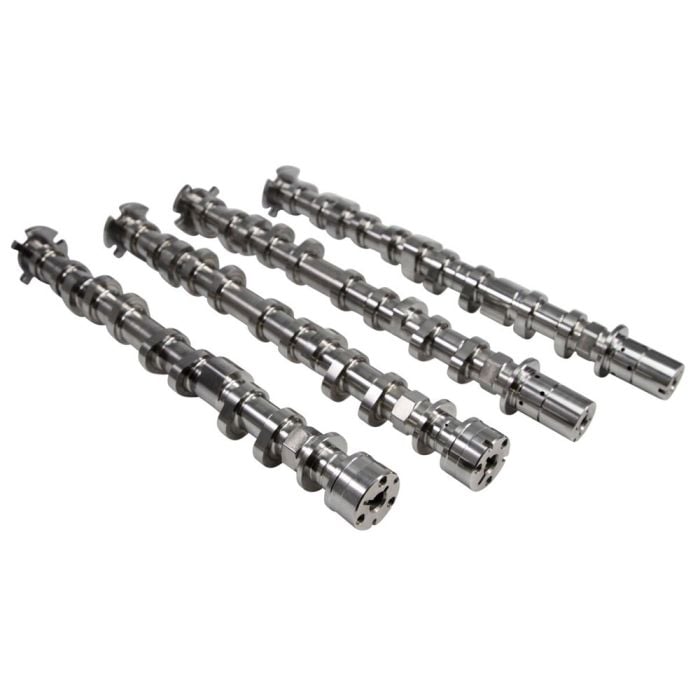

COMP Cams Stage 1 NSR 270/277 Grind Cam Mustang 18-26

Built for factory intake and stock gearing, this Stage 1 NSR grind suits automatic Coyote applications especially well and needs no valve spring upgrade. COMP Cams matched the profile to the Coyote's direct-injection cylinder head geometry using GT350 race engine data, adding power and response while staying stable at high RPM across the full range.

Features and Benefits:
- RPM range: 1,900-7,600
- Duration: intake 270 / exhaust 277
- Duration at 0.050 in lift: intake 228 / exhaust 230
- Valve lift: intake 0.550 in / exhaust 0.550 in
- Lobe separation: 123 degrees
- No valve springs required

Vehicle Fitment:
- 2018-2026 Ford Mustang (5.0L Coyote)

Please Note:
This camshaft fits Ford F-150 trucks but is designed for the Mustang firing order. To run it on an F-150, the firing order must be changed from 1-5-4-2-6-3-7-8 to the Mustang firing order 1-3-7-2-6-5-4-8.
