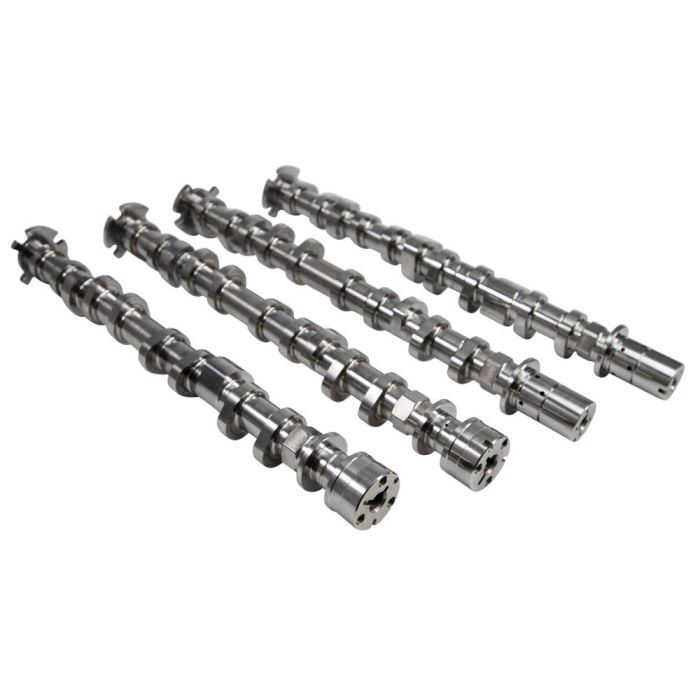

COMP Cams Stage 2 NSR 274/281 Grind Cam Mustang 18-23

This Stage 2 NSR grind suits Coyote builds running increased gearing, headers, and an intake operating above the factory redline, without requiring a valve spring upgrade. COMP Cams designed the profile from GT350 race engine data, matching the Coyote's direct-injection cylinder head geometry and flow for added power that plays well with other supporting modifications. A hydraulic roller finger follower lifter keeps maintenance to levels.

Features and Benefits:
- RPM range: 2,100-7,900
- Duration: intake 274 / exhaust 281
- Duration at 0.050 in lift: intake 232 / exhaust 234
- Valve lift: intake 0.550 in / exhaust 0.550 in
- Lobe separation: 125 degrees
- No valve springs required

Vehicle Fitment:
- 2018-2023 Ford Mustang (5.0L Coyote)

Please Note:
This camshaft fits Ford F-150 trucks but is designed for the Mustang firing order. To run it on an F-150, the firing order must be changed from 1-5-4-2-6-3-7-8 to the Mustang firing order 1-3-7-2-6-5-4-8.
