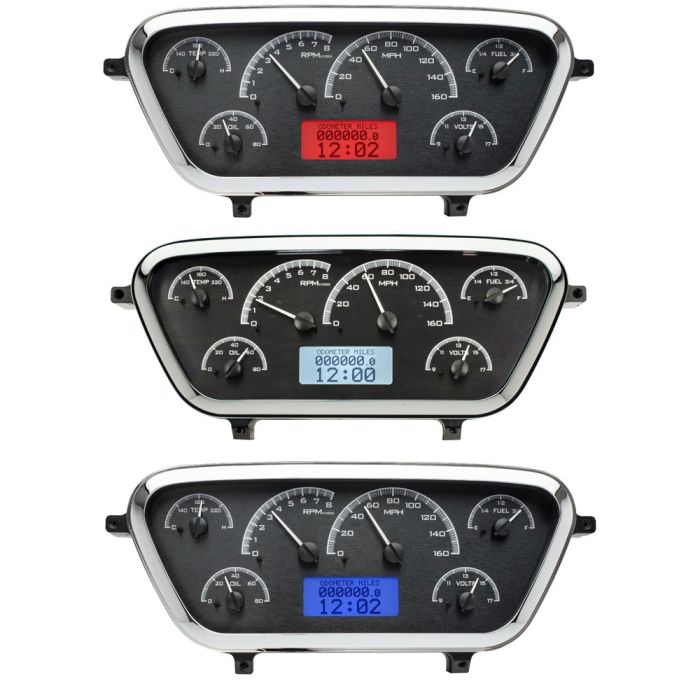

Dakota Digital Gauge System VHX Black Alloy Style Face F-100 1953-1955

If you want a modern touch to the dash of your 1953-1955 Ford F-100, than this Dakota Digital VHX Gauge System with Black Alloy Style Face (VHX-53F-PU-K) is right up your alley! Order yours today from CJ Pony Parts!

Dakota Digital is proud to offer their latest and greatest gauge technology for your classic F-100 truck! This premium instrument panel comes with six fully-functioning gauges as well as an enhanced LCD display screen for even more informative readings. Each gauge includes a fully-lit needle, backlit faces and the highly-visible LCD screen. You can choose your backlight and display color (White, Blue or Red) so it best complements your restomod's interior and other customized upgrades. Simple and easy to install, this gauge system will be a direct-fit replacement and will not require any modifications to the dash. What are you waiting for? Order your new premium gauge system from CJ's today!

Analog Gauges:
- Speedometer: 0-160 MPH
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 PSI
- Water Temperature: 100F-260F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9- 17 VDC
- Lighting: Backlit
- Finish: Black Alloy Style

Digital Message Center Features
Standard Displays:
- Odometer (One time user settable, Million Mile)
- Dual (A/B) Trip Meter (0- 9,999.9)
- Clock (12 hour)
Performance Meters:
- 0-60 MPH Timer (0-100KMH)
- 1/4 mile time
- 1/4 mile end speed (trap speed)
- High speed recall
- High RPM recall
Gauges:
- Speedometer (0- 255 MPH/kmh)
- Tachometer (0- 9,900 RPM)
- Oil Pressure (0-100 psi displayed in 1 psi increments)
- Water Temperature (100- 300ºF/ 40- 150ºC displayed in 1 ºF/ºC increments)
- Voltmeter (9- 17 VDC)
- Fuel Level (0-99% full)
Lighting:
- Auto-contrasting LCD display for optimal view in the brightest of sunlight
- LED backlit at night to match/ complete the look at night
- Choice of White, Red or Blue displays

Built-In Indicators:
- Turn Signals (Left/Right)
- High Beam
- Check Engine
- Parking Brake
- Cruise Control (On/On and engaged when vehicle is equipped)
- Gear Position (Optional GSS2000 sensor required)
- 4x4 (When vehicle is equipped)
- Wait to start (When vehicle is equipped)

Included Sensors:
- Water temperature with 10ft harness
- Oil pressure with 10ft harness
- Speed sensor with 10ft harness
- Bushings: 1/8" to 1/4", 3/8" and 1/2" NPT bushings along with bushings for 12mm and 16mm x 1-1/2 threads

Pushbutton Calibration:
- Mounted pushbuttons are used to calibrate the speedometer, set the cylinder count and fuel level gauge
- These same included buttons are used to access all of the information from your LCD Digital Message Center

Please Note: Gear Position will require the Gear Shift Indicator Sending Unit (GSS2000) from Dakota Digital as well. It is available for purchase separately from CJ’s.

Since their establishment in 1986, Dakota Digital, based in Sioux Falls, South Dakota, has been manufacturing premium quality gauge equipment for a wide range of early model Ford vehicles. Specializing in gauges, gauge pods and accessories, such as clocks and tachometers, Dakota Digital creates authentic looking gauges and gauge pods that have the latest innovations in technology packed into them so that owners have the most effective and accurate gauge equipment that is available. By producing restoration and replacement equipment that functions more effectively than the originals, Dakota Digital has secured their position in a niche market, cementing their place in the aftermarket industry. Get your classic Ford Bronco, F-100 or favorite Mustang premium-quality gauges from Dakota Digital today!

Order this new premium Dakota Digital VHX Gauge System (VHX-53F-PU-K) with Black Alloy Style Face for your 1953, 1954 or 1955 F-100 today from CJ Pony Parts!
