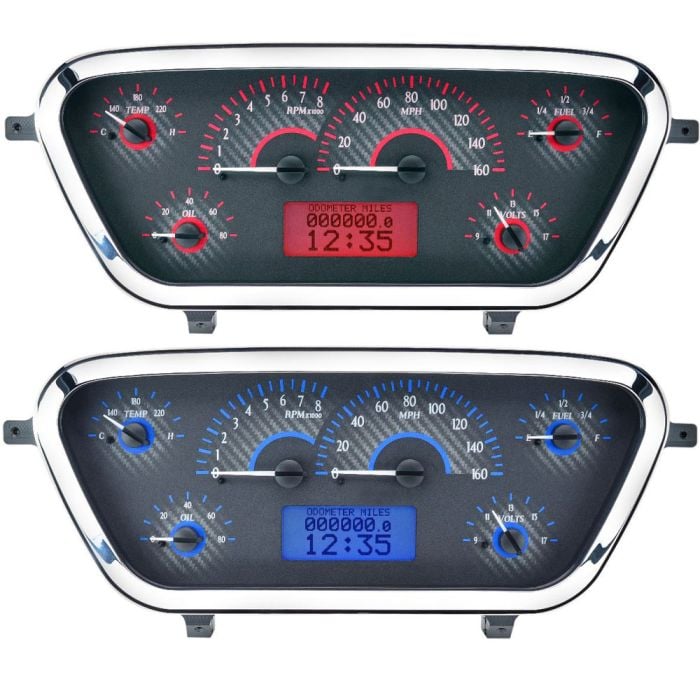

Dakota Digital Gauge System VHX Carbon Fiber Style Face F-100 1953-1955

Do you want a fast and easy way to modernize the dash in your 1953-1955 Ford F-100? This direct-fit, upgraded Dakota Digital VHX Gauge System with Carbon Fiber Style Face (VHX-53F-PU-C) is calling your name! Order your new premium gauge assembly today from CJ Pony Parts!

Dakota Digital thought of everything when they designed this new instrument panel for your F-100--it's a simple direct-fit replacement so your truck's dash won't need any modifications for it to fit, plus they include all of the wiring as well as detailed instructions so you can install it quickly and correctly. The superior VHX System includes fully lit gauge needles, backlit faces and a highly-visibly LCD message screen in your choice of display color (Blue or Red), all of which provide your new gauges with a modernized look and feel.

The unique carbon fiber style gauge faces will give your classic Ford truck's interior some added style and a personal touch, something that can be sorely lacking if you're looking to make your F-100 into a Restomod instead of a classic restoration. The entire gauge unit is topped-off with a 6061 Aluminum bezel for a finished, clean look. You'll love the added functionality this new gauge system provides, but you'll fall in love with how it looks sitting in your dash! Order yours from CJ's today!

Analog Gauges:
- Speedometer: 0-160 MPH
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 PSI
- Water Temperature: 100F-260F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9- 17 VDC
- Lighting: Backlit
- Finish: Carbon Fiber Style

Digital Message Center Features
Standard Displays:
- Odometer (One time user settable, Million Mile)
- Dual (A/B) Trip Meter (0- 9,999.9)
- Clock (12 hour)
Performance Meters:
- 0-60 MPH Timer (0-100KMH)
- 1/4 mile time
- 1/4 mile end speed (trap speed)
- High speed recall
- High RPM recall
Gauges:
- Speedometer (0- 255 MPH/kmh)
- Tachometer (0- 9,900 RPM)
- Oil Pressure (0-100 psi displayed in 1 psi increments)
- Water Temperature (100- 300ºF/ 40- 150ºC displayed in 1 ºF/ºC increments)
- Voltmeter (9- 17 VDC)
- Fuel Level (0-99% full)
Lighting:
- Auto-contrasting LCD display for optimal view in the brightest of sunlight
- LED backlit at night to match/ complete the look at night
- Choice of Red or Blue displays

Built-In Indicators:
- Turn Signals (Left/Right)
- High Beam
- Check Engine
- Parking Brake
- Cruise Control (On/On and engaged when vehicle is equipped)
- Gear Position (Optional GSS2000 sensor required)
- 4x4 (When vehicle is equipped)
- Wait to start (When vehicle is equipped)

Included Sensors:
- Water temperature with 10ft harness
- Oil pressure with 10ft harness
- Speed sensor with 10ft harness
- Bushings: 1/8" to 1/4", 3/8" and 1/2" NPT bushings along with bushings for 12mm and 16mm x 1-1/2 threads

Pushbutton Calibration:
- Mounted pushbuttons are used to calibrate the speedometer, set the cylinder count and fuel level gauge
- These same included buttons are used to access all of the information from your LCD Digital Message Center

Please Note: Gear Position indicator will require the Dakota Digital Gear Gear Shift Indicator Sending Unit (GSS2000 ) which is sold separately.

Since their establishment in 1986, Dakota Digital, based in Sioux Falls, South Dakota, has been manufacturing premium quality gauge equipment for a wide range of early model Ford vehicles. Specializing in gauges, gauge pods and accessories, such as clocks and tachometers, Dakota Digital creates authentic looking gauges and gauge pods that have the latest innovations in technology packed into them so that owners have the most effective and accurate gauge equipment that is available. By producing restoration and replacement equipment that functions more effectively than the originals, Dakota Digital has secured their position in a niche market, cementing their place in the aftermarket industry. Get your classic Ford Bronco, F-100 or favorite Mustang premium-quality gauges from Dakota Digital today!

Order this upgraded Dakota Digital VHX Gauge System (VHX-53F-PU-C) with Carbon Fiber Style Face for your 1953, 1954 or 1955 F-100 today from CJ Pony Parts!
