Dakota Digital Gauge System VHX With Carbon Fiber Style Face F-100 1973-1979

CJ's Part Number:
Only %1 left

Dakota Digital VHX Gauge System with Carbon Fiber Style Face for 1973, 1974, 1975, 1976, 1977, 1978 and 1979 F-100s.

Update the interior of your 1973-1979 F-100 with this modern Dakota Digital VHX Gauge System with Carbon Fiber Style Face from CJ Pony Parts! This VHX system will directly fit into the stock instrument bezel of your 1973-79 F-100 without modification.

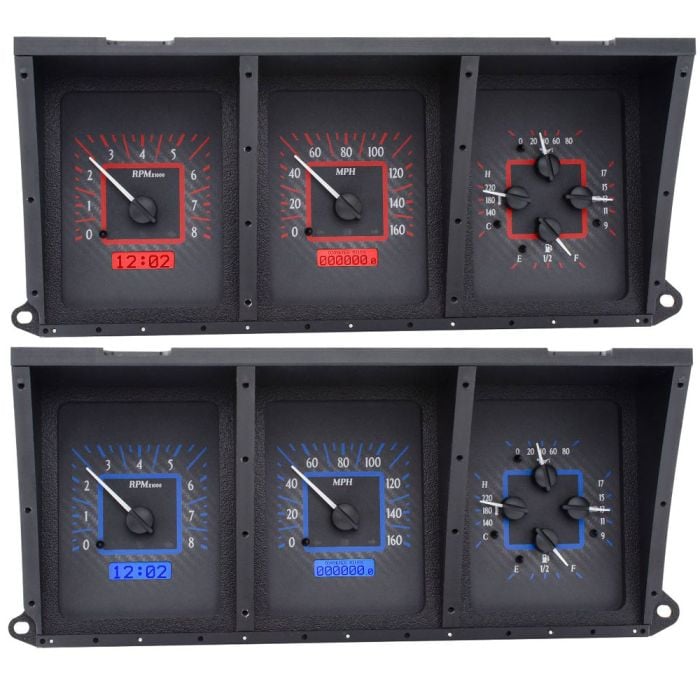

The Dakota Digital VHX Gauge System (VHX-73F-PU-C) utilizes fully lit needles, backlit faces and an LCD message center to give you a clear view of your F-100’s monitoring systems. You will be able to choose between a blue lighting scheme or a red lighting scheme to better match your F-100’s interior. This modern gauge setup also features micro-controlled precision stepper motors, solid state sensors for unparalleled accuracy, and user-customizable display feedback. The gauge is designed to be simple to install and is a direct-fit replacement that does not require any modifications to your dash!

Analog Gauges:
- Speedometer: 0 -160 MPH
- Tachometer: 0- 8,000 RPM
- Oil Pressure: 0- 80 psi
- Water Temperature: 100- 260ºF
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9- 17 VDC
- Lighting: LED back lit

Digital Message Center Features:
Standard Displays:
- Odometer (One time user settable, Million Mile)
- Dual (A/B) Trip Meter (0- 9,999.9)
- Clock (12 hour)

Performance Meters:
- 0- 60 MPH Timer
- 1/4 mile time
- 1/4 mile end speed (trap speed)
- High speed recall
- High RPM recall

- Speedometer (0- 255 MPH)
- Tachometer (0- 9,900 RPM)
- Oil Pressure (0-100 psi displayed in 1 psi increments)
- Water Temperature (100- 300ºF/ 40- 150ºC displayed in 1 ºF/ºC increments)
- Voltmeter (9- 17 VDC)
- Fuel Level (0-99% full)

- Auto-contrasting LCD display for optimal view in the brightest of sunlight.
- LED backlit at night to match/ complete the look at night.

Built-in Indicators:
- Turn Signals (Left/ Right)
- High Beam
- Check Engine
- Parking Brake
- Cruise Control (On/ On & Engaged when vehicle is equipped)
- Gear Position (Optional GSS-2000 sensor required)
- 4 x 4 (When vehicle is equipped)
- Wait to Start (When vehicle is equipped)

Included Sensors:
- Water temp with 10ft harness
- Oil Pressure with 10ft harness
- Speed sensor with 10ft harness
- Bushings - 1/8" to 1/4", 3/8" and 1/2" NPT bushings along with bushings for 12mm and 16mm x 1-1/2 threads

Push-button Calibration:
- Mounted pushbuttons are used to calibrate the speedometer, set the cylinder count and fuel level gauge
- These same included buttons are used to access all of the information from your LCD Digital Message Center

Please Note: GSS2000 is sold separately and is needed for gear indicator function.

Since their establishment in 1986, Dakota Digital, based in Sioux Falls, South Dakota, has been manufacturing premium quality gauge equipment for a wide range of early model Ford vehicles. Specializing in gauges, gauge pods and accessories, such as clocks and tachometers, Dakota Digital creates authentic looking gauges and gauge pods that have the latest innovations in technology packed into them so that owners have the most effective and accurate gauge equipment that is available.

Order this Dakota Digital VHX-73F-PU-C VHX Gauge System with Carbon Fiber Style Face for your 1973, 1974, 1975, 1976, 1977, 1978 or 1979 F-100 from CJ Pony Parts today!

Installation Difficulty


Novice skill is required for this installation.

Vehicle Fitment

This product will fit the following F-100 years:
