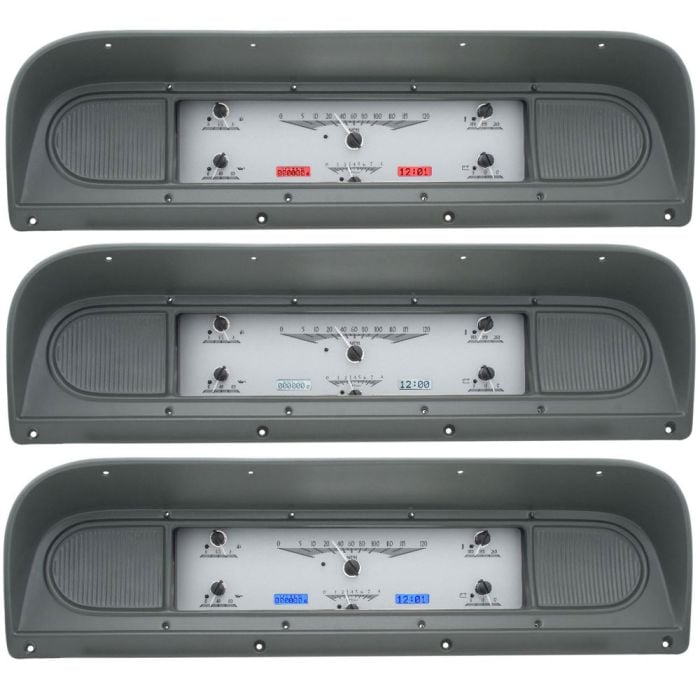

Dakota Digital Gauge System VHX With Silver Alloy-Style Face F-100 1967-1972

If you're looking for a great upgrade for the stock gauges on your 1967-1972 F-100, then you should take a closer look at this Dakota Digital (VHX-67F-PU-S) VHX Gauge System with a Silver Alloy-Style Face that's now available from CJ Pony Parts! It's a direct fit replacement for your early metal or late-model plastic factory gauge bezel, and you can get it with a red, white or blue display.

Features & Benefits:
- Fits Directly into Stock Instrument Bezel without Modifications
- Fits Both Styles of Factory Gauge Bezel: Early Metal and Late-Model Plastic
- Highly Visible Auto-Contrasting LCD Message Centers for Optimal View in Bright Sunlight
- LEDs Behind Gauge Face Light up Needles, Indicators, Digital Message Center and More at Night
- Micro-Controlled Precision Stepper Motors
- Solid-State Sensors for Unparalleled Accuracy
- User-Customizable Display Feedback
- Pushbutton Calibration: Mount Included Pushbuttons in Convenient Location
- Pushbuttons Calibrate Speedometer, Set Cylinder Count and Fuel Level Gauge
- Once Configured Pushbuttons Can be Used to Access Information in Digital Message Centers
- Engineered and Made in the USA
- Includes Harnesses and Bushings
- Available with a Red Display, White Display or Blue Display

This Dakota Digital (VHX-67F-PU-S) VHX Gauge System with a Silver Alloy-Style Face will fit directly into your F-100's stock instrument bezel without any modifications on your part. It offers the best of both worlds: the classic elegance of analog gauges with the modern convenience of digital gauges. There are highly visible auto-contrasting LCD message centers that offer optimal viewing in bright sunlight, and then the LEDs behind the gauge face light up your needles, indicators and Digital Message Center and more at night! Not only that, this system also offers micro-controlled precision stepper motors, solid-state sensors that offer unparalleled accuracy and display feedback that can be customized by you to meet your own specific needs! You can mount the included pushbuttons in a convenient location and then use those pushbuttons to calibrate your speedometer, set the cylinder count and more! After you configure them, the pushbuttons can then be used to access the information you need from the Digital Message Centers. This VHX Gauge System is proudly engineered and made in the USA and comes with the harnesses and bushings you'll need to install it.

Analog Gauge Information:
- Speedometer (0 to 120 MPH)
- Tachometer (0 to 8,000 RPM)
- Oil Pressure (0 to 80 PSI)
- Water Temperature (100 to 260 Degrees Fahrenheit)
- Fuel Level (E, 1/4, 1/2, 3/4, F)
- Voltmeter (9 to 17 VDC)

Digital Message Center:

Standard Displays:
- Odometer (One-Time User Settable, Million Mile)
- Dual (A/B) Trip Meter (0 to 9,999.9)
- Clock (12 hour)

Performance Meters:
- 0 to 60 MPH Timer
- 1/4 Mile Timer
- 1/4 Mile End Speed (Trap Speed)
- High Speed Recall
- High RPM Recall

Gauges:
- Speedometer (0 to 255 MPH)
- Tachometer (0 to 9,900 RPM)
- Oil Pressure (0 to 100 PSI Displayed in 1 PSI Increments)
- Water Temperature (100 to 300 Degrees Fahrenheit / 40 to 150 Degrees Celsius Displayed in 1 Degree Increments)
- Voltmeter (9 to 17 VDC)
- Fuel Level (0-99% Full)

Built-In Indicators:
- Left and Right Turn Signals
- High Beam
- Check Engine
- Parking Brake
- Cruise Control (On / On and Engaged When Vehicle is Equipped)
- Gear Position (Optional Sensor Required)
- 4 x 4 (When Vehicle is Equipped)
- Wait to Start (When Vehicle is Equipped)

Please Note: Dakota Digital Universal Gear Shift Indicator Sending Unit is sold separately and is needed for the gear indicator function. Please see CJ Pony Parts # GSS2000).

Order a Dakota Digital (VHX-67F-PU-S) VHX Gauge System with a Silver Alloy-Style Face for your 1967, 1968, 1969, 1970, 1971 or 1972 F-100 from CJ Pony Parts today!
