Dakota Digital HDX Gauge Kit With Alloy Background Chevrolet/GMC C/K 1500 1988-1994

From 1/4 and 1/8 mile time to a trip meter, this HDX Gauge Kit from Dakota Digital gives 1988-1994 Chevy and GMC C/K 1500 drivers complete control over their gauges. With this kit, users get full freedom over calibrating the odometer, 0-60 time, high-speed recall, and high RPM recall settings. It’s done either through the on-board capacitive touch switches or remotely in the app. You’ll even be able to customize the color, theme, and brightness of the gauge displays through it! Android and iOS systems alike can use the app, making it easily accessible to all.

Features and Benefits:
- Speedometer reads up to 160 mph & tachometer reads 0-8000 RPM
- Fuel gauge displays E, 1/4, 1/2, 3/4, & F markers
- 0-80 PSI oil pressure, 100-260°F water temp, & 9-17 VDC voltmeter gauges
- Calibration settings configurable via on-board capacitive switches/Bluetooth app
- Settings: odometer, trip meter, 0-60 time, 1/4 or 1/8 mile time, & high-speed recall
- Built-in indicators: turn signals, high beam, check engine, & parking brake
- (2) auxiliary input indicators w/ user-programmable labels
- Red LED indicator for quick notice of warning (minus speedometer)
- Water temp, oil pressure, & speed sensors each come w/ 10’ harness
- Light, sturdy billet aluminum housing
- Optical-grade polycarbonate lenses
- Sold w/ black or silver alloy-style faces
- LED backlighting makes display easy-to-read
- Customizable display colors, themes, & brightness
- Includes 1/8" to 1/4", 3/8" & 1/2" NPT bushings

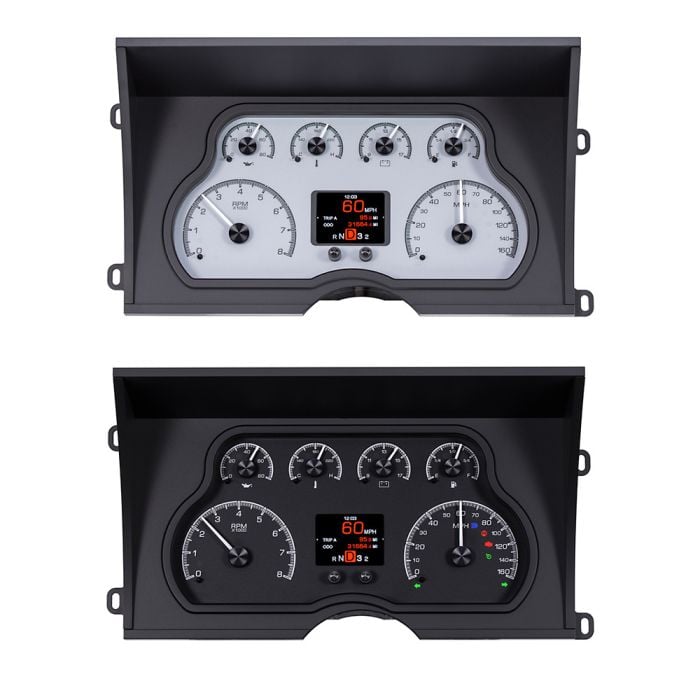

A 160-mph speedometer and 0-8000 RPM tachometer sit at the center of this kit, complemented by either black or silver alloy-style gauge faces. They’re followed by E-to-F fuel, 0-80 PSI oil pressure, 100-260°F water temperature, and 9-17 VDC voltmeter gauges placed overhead. LED backlighting makes the displays radiantly glow for easy readability whether it’s day or night. Each gauge boasts sturdy billet aluminum housings and optical-grade polycarbonate lenses for lasting strength. Plus, to ease installation, a 10’ harness comes with each of the water temperature, oil pressure, and speed sensors.

Vehicle Fitment:
- 1988-1998 Chevrolet/GMC C/K
- For half-ton models ONLY

Additional Notes:
- This new gauge system will fit your 1995-1998 Chevrolet and GMC C/K’s original factory bezel--a new replacement bezel is NOT included.
- When equipped on your vehicle, indicators for cruise control, gear position, 4 X 4, and wait to start will also show up on the display.
- For gear indicator functionality, the Dakota Digital gear shift indicator sending unit must be purchased separately under P/N: GSS-3000.

Download the Bluetooth app to wirelessly control your gauges using your mobile device from the Apple App Store or Google Play.
