Dakota Digital VFD3 Digital Instrument Gauge System Chevrolet C10 1967-1972

Dakota Digital:
VFD3-67C-PU-C-Z
MSRP $775.00
$736.25
You save $38.75

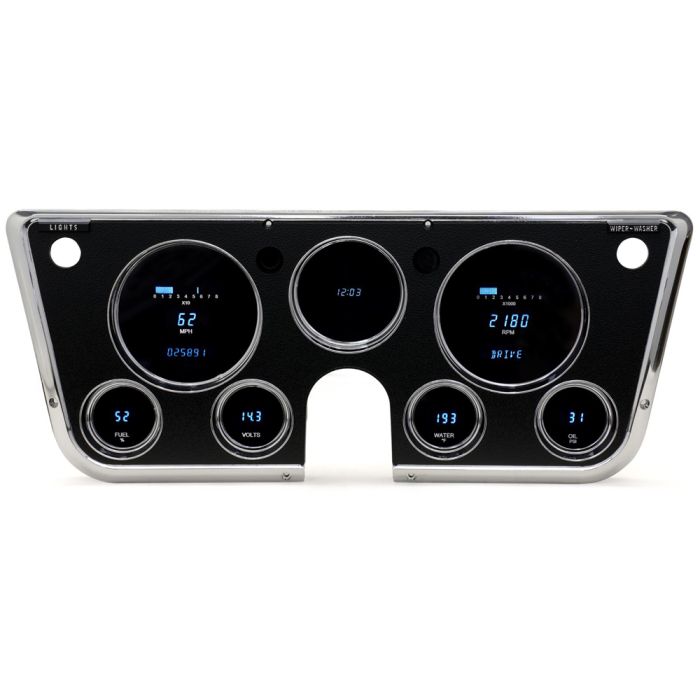

Dakota Digital VFD3 Digital Instrument Gauge System for all 1967, 1968, 1969, 1970, 1971 and 1972 Chevrolet C10s.

Your classic truck has great vintage looks that you love, but the technology you're accustomed to is non-existent in your interior. This VFD3 Digital Instrument Gauge System will fit perfectly into your 1967-1972 Chevy C10 and give you all the modern functionality you desire without any modifications to your factory appearance or dash.

Installing this gauge system (P/N: VFD3-67C-PU-C-Z) is the easiest thing you'll do all week. It fits directly into your factory bezel without any cutting or modifications. The assembly includes six highly accurate digital gauges, including a speedometer that runs up to 255 mph and a tachometer that runs up to 17,500 rpm. It utilizes vacuum florescent readouts that display a variety of information available to you with the push of a button. The color on the digital style gauge faces is appealing to the eye and easy to read at a glance. You can choose between blue and teal for a bit of customization.

Along with six gauges, this assembly includes an odometer, trip meter and digital 12 hour clock. It also comes with indicators like trun signals (both left and right), high beam, check engine and parking brake. With the addition of P/N: GSS2000, you can use the gear position indicator as well. The water temperature, oil pressure and speed sensors all come with 10-foot long harnesses. The speed sensor's harness replaces the GM-style speedometer cables. All the necessary bushings are also included.

For your convenience, Dakota Digital instruments are programmed and operated using the simple push of a button. The included pushbuttons can be mounted wherever you decide is most convenient and easy to reach while driving. The buttons are used to calibrate the speedometer and set the cylinder count and the fuel level gauge. Once you've calibrated the gauges, these buttons can be used to access the plethora of information stored in your digital message centers.

Digital Gauges:
- Speedometer (0 - 255 MPH)
- Tachometer (0 - 17,500 RPM)
- Oil Pressure (0 - 99 psi)
- Water Temperature (0 - 300ºF)
- Fuel Level (0 - 99%)
- Voltmeter (8 - 17 VDC)

Digital Message Centers
Standard Displays:
- Odometer (one time user settable, Million Mile)
- Dual (A/B) Trip Meter (0 - 9,999.9)
- Digital Clock (12-hour)

Performance Meters:
- 0 - 60 MPH Timer
- 1/4 Mile Time
- 1/4 Mile End Speed (trap speed)
- High Speed Recall
- High RPM Recall

Indicators:
- Turn Signals (left/right)
- High Beam
- Check Engine
- Parking Brake
- Cruise Control (when equipped)
- Gear Position (with P/N: GSS-2000)
- 4 x 4 (when equipped)
- Wait to Start (when equipped)

Lighting:
- High Vacuum Florescent Displays in Blue and Teal

Included Sensors:
- Water Temperature with 10ft Harness
- Oil Pressure with 10ft Harness
- Speed Sensor with 10ft Harness
- Bushings - 1/8" to 1/4", 3/8" and 1/2" NPT Bushings and 12mm and 16mm x 1.5 Threads

*Fits factory bezel (not included).

Please Note: GSS2000 is required for gear indicator function (sold separately).

Order this Dakota Digital (VFD3-67C-PU-C-Z) VFD3 Digital Instrument Gauge System for your 1967, 1968, 1969, 1970, 1971 or 1972 Chevrolet C10 from CJ Pony Parts today!

California Residents: Proposition 65 Warning

Vehicle Fitment

This product will fit the following C10 years:
