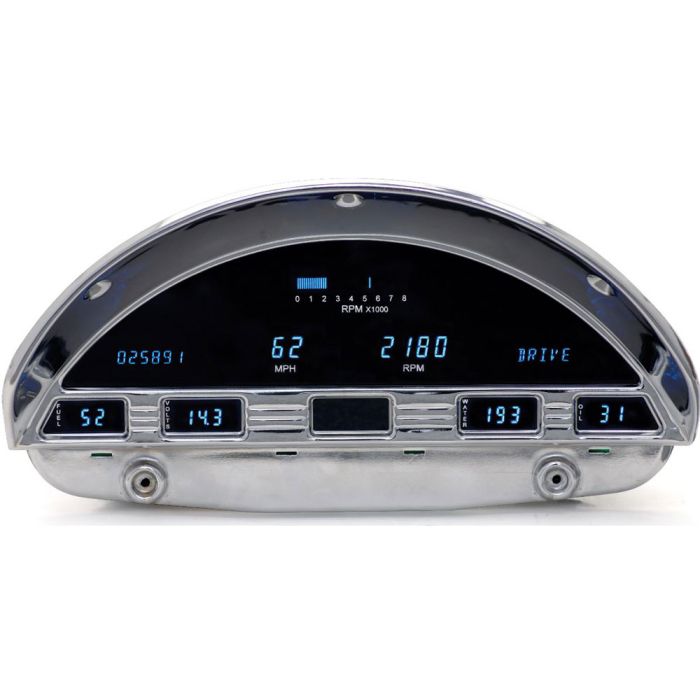

Dakota Digital VFD3 Digital Instrument Gauge System F-100 1956

Add state of the art instrumentation to your classic 1956 F-100 with this Dakota Digital VFD3-56F-PU-O-B VFD3 Digital Instrument Gauge System. Maintaining the 50s era style on the exterior of your F-100 while adding the latest features and technologies to your dash is combining the best of two worlds. Your new high brightness vacuum fluorescent displays feature two interchangeable lenses, on blue and one teal, for deeper customization potential. , for deeper customization potential. Your new gauges offer increased accuracy for the lifetime of your pick-up truck.

This Instrument Gauge System from Dakota Digital utilizes the factory bezel during installation. No additional or replicated bezel is included to complete the installation process.

This new instrumentation system features push-button technology that is utilized during the programming and operation of your new gauges. Simply mount the included push-buttons supplied with your gauges in a convenient and easily accessible location. These buttons are used to calibrate your speedometer, set the cylinder count and the fuel level gauge. When the configuration process is complete, the same buttons are used to operate the panel and retrieve the information you’re looking for.

Your newly upgraded 1956 F-100 will stand above the rest with this modernized and stylish instrumentation from Dakota Digital!

Digital Gauges:
- Speedometer: 0-255MPH
- Tachometer: 0-17,500RPM
- Oil Pressure: 0-99PSI
- Water Temperature: 0-300F
- Fuel Level: 0-99%
- Voltmeter: 8-17VDC
- Standard Colors: Blue or Teal

Digital Message Centers:
- Standard Displays: Odometer one time user settable, million mile
- Dual: A/B Trip Meter 0-9,999.9

Performance Meters:
- 0-60MPH Timer
- 1/4 mile time
- 1/4 mile end speed (trap speed)
- High speed recall
- High RPM recall

Gauges:
- Speedometer: 0- 255MPH opposite scale of main speedometer

Built-in Indicators:
Indicators:
- Turn Signals: Left and Right
- High Beam
- Check Engine
- Parking Brake
- Cruise Control (On/On and Engaged when vehicle is equipped)
- Gear Position optional GSS-2000 sensor required
- 4x4 when vehicle is equipped
- Wait to start when vehicle is equipped

Included Sensors:
- Water temperature: W/10ft harness
- Oil pressure: W/10ft harness
- Speed sensor: W/10ft harness
- Bushings: 1/8" to 1/4", 3/8" and 1/2" NPT bushings along with bushings for 12mm and 16mm x 1-1/2 threads

*These gauges come with Blue and Teal lenses. Full 6 Gauge Instrument System fits into OEM bezel for 1956 Ford Pickup. Fits into existing bezel (replacement not included).

Please Note: GSS2000 is sold separately and is needed for gear indicator function.

Order this Dakota Digital VFD3-56F-PU-O-B VFD3 Digital Instrument Gauge System for your 1956 F-100 today from CJ Pony Parts.
