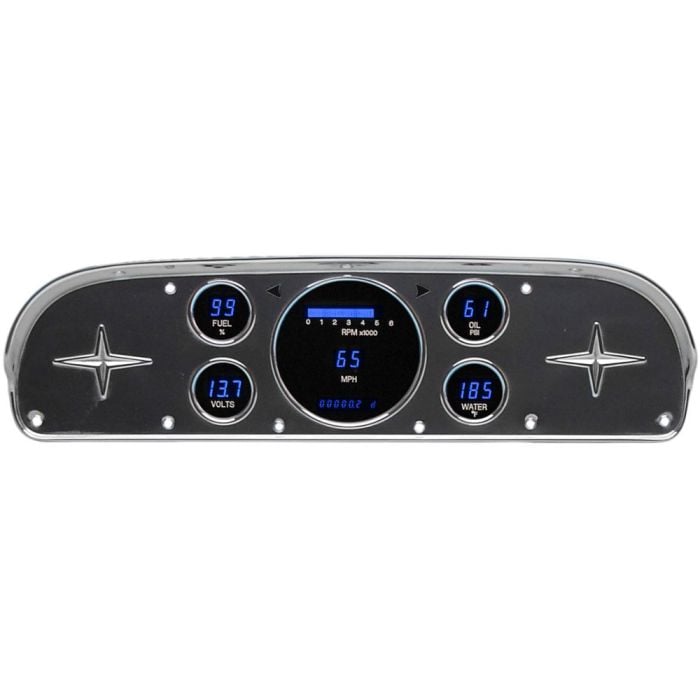

Dakota Digital VFD3 Digital Instrument Gauge System F-100 1957-1960

If you’re looking for replacement gauges for the damaged or broken gauges in your 1957-1960 F-100 this Dakota Digital VFD3-57F-PU-Z VFD3 Digital Instrument Gauge System will get your information center up and running again. Not only will your gauges be replaced, but they will be upgraded into the 21^st century. These High brightness vacuum fluorescent displays provide a lifetime of trouble free use while offering increased accuracy and additional features. Two lenses, one blue and one teal, are included to allow deeper customization of your dash board components.

This full five gauge instrument system fits directly into your factory bezel for 1957- 1960 F-100 pick-up. You’ll need to save your factory bezel during the easy installation process or secure a new one if your original is damaged, cracked or altogether missing.

This entire system is programmed and operated by the push of a button. These buttons are used to calibrate your speedometer, set the cylinder count and the fuel level gauge. Once properly configured these same buttons are used to access the vehicle information located in the digital message centers.

Digital Gauges:
- Speedometer: 0-255MPH
- Tachometer: 0-17,500RPM
- Oil Pressure: 0-99PSI
- Water Temperature: 0-300F
- Fuel Level: 0-99%
- Voltmeter: 8-17VDC
- Standard Colors: Blue or Teal

Digital Message Centers:
- Standard Displays: Odometer one time user settable, million mile
- Dual: A/B Trip Meter 0-9,999.9

Performance Meters:
- 0-60MPH Timer
- 1/4 mile time
- 1/4 mile end speed (trap speed)
- High speed recall
- High RPM recall

Gauges:
- Speedometer: 0- 255MPH opposite scale of main speedometer

Built-in Indicators:
Indicators:
- Turn Signals: Left and Right
- High Beam
- Check Engine
- Parking Brake
- Cruise Control (On/On and Engaged when vehicle is equipped)
- Gear Position optional GSS-2000 sensor required
- 4x4 when vehicle is equipped
- Wait to start when vehicle is equipped

Included Sensors:
- Water temperature: W/10ft harness
- Oil pressure: W/10ft harness
- Speed sensor: W/10ft harness
- Bushings: 1/8" to 1/4", 3/8" and 1/2" NPT bushings along with bushings for 12mm and 16mm x 1-1/2 threads

*These gauges come with Blue and Teal lenses. Full 5 Gauge Instrument System fits into OEM bezel for 1957-1960 Ford Pickups. Fits into existing bezel (replacement not included).

Please Note: GSS2000 is sold separately and is needed for gear indicator function.

Order this Dakota Digital VFD3-57F-PU-Z VFD3 Digital Instrument Gauge System for your 1957, 1958, 1959 or 1960 F-100 today from CJ Pony Parts.
