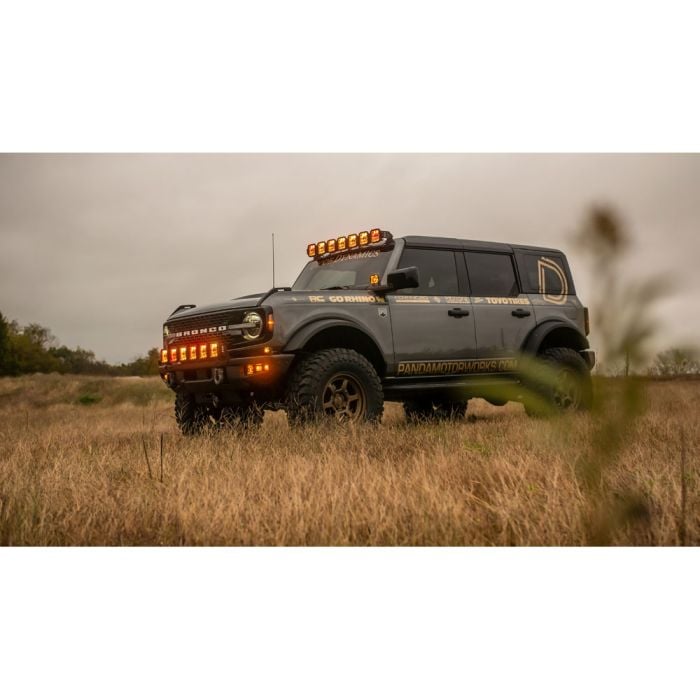

Diode Dynamics LED Ditch Light Kit SS3 Combo Beam Pattern Sport Yellow With Amber Backlight Bronco 2021-2024

With no cutting or drilling required, this Stage Series Light Kit is a direct fit upgrade for your 2021-2024 Ford Bronco. You will be able to mount twin SS3 light pods to the factory mounting points near the A-pillar, with no cutting or drilling required. This kit will not interfere with anything, like the hood or antenna.

Features and Benefits:
- Allows you to Mount Two Stage Series LED Pods in the A-Pillar Location
- Utilizes Factory Mounting points for a Simple Installation
- Advanced TIR Optics Provide High Efficiency and Focus
-IP69K Waterproof, High Pressure Rated
- Heat Sinks for Cooling
- Brilliant Amber Backlight Functionality

Traditional optics like reflectors or simple lenses lose light internally and to glare, so not all of the light shines on target. Instead, the custom-engineered TIR optic in the SS3 collects all of the light from the LED, and directs it only where you need it, drastically reducing glare and improving total efficiency.

While other options on the market lose as much as 10% of the light output shining through an outer lens, the custom-molded TIR optic in the SS3 serves as both the optic and main lens for greater efficiency and light output (patent pending).

Thanks to this innovative feature, when coupled with high-intensity LED chips, the total intensity of the SS3 is much greater than other LED pods using basic optics or reflectors with a standard outer lens. All Stage Series beam pattern options were designed with optical simulation modeling, to shape the output in a highly-functional beam pattern.

All of these tests are completed to SAE standards, just like factory components. They've also been put to the test on-road by racers and enthusiasts alike.

Specifications:
- Measured Lumens: 1,300 lm
- Intensity (cd): 28,100 cd
- Color Temp (CCT): 3000K
- Beam Angle: Combo (Driving and Flood)
- Power (watts): 14.5
- Operating Voltage: 9-16V
- Current (amps @ 12.8V): 1.1
- Polarity: Polarity Specific
- Operating Temperature: -40C to 85C (-40F to 185F)
- LED Emitter: Luxeon Z ES
- Connector(s): Deutsch DT Input
- Materials: Polycarbonate Lens, Aluminum Casting, Rubber Gasket
- Cooling: Passive, Pin-Fin heatsink
