Drake Muscle Cars Speed Mesh Hood Vent Kit Matte Black With Stainless Steel Mesh Grilles GT 2015-2017
Highlights
- Matte Black Frames W/Mesh
- Mounts In Factory Locations
- Inc. Stainless Steel Hardware
- Sold As A Pair

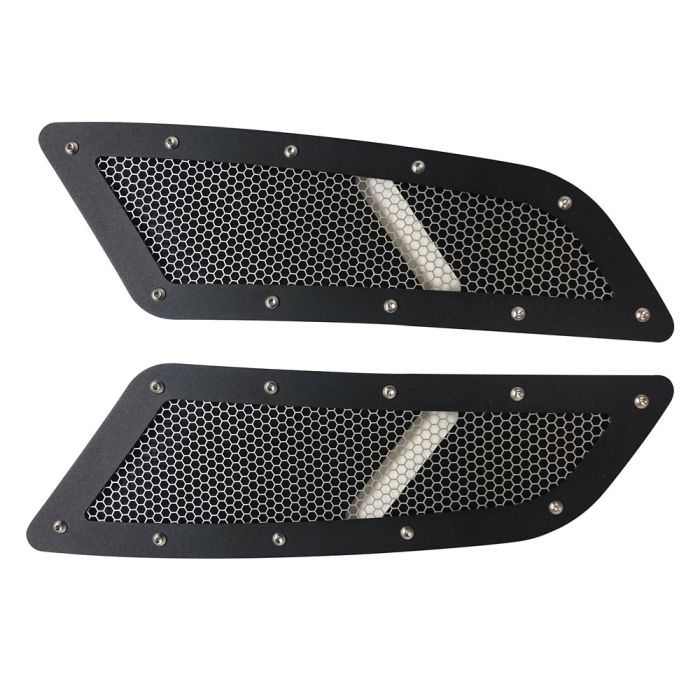

Drake Muscle Cars Matte Black Speed Mesh Hood Vent Kit with Stainless Steel Mesh Grilles for all 2015, 2016 and 2017 GT Mustangs.
Continue upgrading the exterior styling of your 2015-2017 GT Mustang by purchasing this Matte Black Speed Mesh Hood Vent Kit with Stainless Steel Mesh Grilles from Drake Muscle Cars. The original hood vents on your GT help extract heat that is trapped under the hood, but seem to lack any aggressive punch. These Drake Muscle Cars Hood Vents and the accomapnying Stailess Steel Mesh Grilles will give your S550 the attitude adjustment it needs for its look up front.
Features & Benefits:
- Provides more Aggressive Style
- Matte Black Laser-Cut Frames
- Honeycomb Pattern Stainless Mesh Grilles
- Comes with Removable Integrated Backing Plates
- Mounts Into Factory Locations
- Includes Stainless Steel Hardware
- Sold as a Pair
Drake Muscle Cars crafts their FR3Z-16C630-M heat extractors using laser-cut frames that have a matte black finish. Sold as a pair so you'll have one for your driver and passenger side, each insert will also come with honeycomb pattern stainless mesh grille and integrated backing plates. These plates can be removed, which will actually increase the amount of air flow. These speed mesh hood vents will mount into place using your S550's factory locations, meaning no drilling or cutting is required. Drake Muscle Cars also makes sure to include stainless steel hardware to help ensure an easy install and give your Mustang a truly aggressive, more hardcore style.
Please Note: These will not retain the hood vent turn signals that are found on 2016 models without the help of modifications.
Drake Muscle Cars has become an iconic brand that redefines quality for aftermarket Mustang parts for your S550 Mustang, and has become the standard for OEM quality Mustang parts that offer the best fit, durability and quality. CJ Pony Parts offers a wide variety Drake Muscle Cars parts that have become so popular that many customers ask for them by name. Once you try their parts on your Mustang, we're sure you will too.
Order this Drake Muscle Cars' FR3Z-16C630-M Matte Black Speed Mesh Hood Vent Kit with Stainless Steel Mesh Grilles for your 2015, 2016 or 2017 GT Mustang from CJ Pony Parts today!
California Residents: Proposition 65 Warning
Related Categories: Mustang Parts, Mustang Body & Sheet Metal, Mustang Hoods & Hood Components, Mustang Hood Scoops, Mustang Hood Accessories
Installation Videos
Video Transcript
They're going to be a direct replacement, an easy bolt and installation. Today I'm going to show you how. For this installation, you need a quarter inch ratchet, 8 millimeter socket, 10 millimeter socket, 10 millimeter wrench, small flat blade screwdriver and a small pry bar or panel remover tool.
We're going to start over on the passenger side. The driver side is exactly the same. The first thing you want to do is move at least 3 of these clips from the hood liner so you can pull it down. It acts as a hardware to remove the factory heat extractor.
This is a panel removal tool, plastic pry bar, whatever you have handy. These will actually come out pretty easily. With the first 3 removed, now we can actually pull this down and we can see our factory heat extractor. When you do this though, you're actually going to cause a small crease across your hood blanket. You don't care, just simply pull down. We can work from there. If that's going to bother you, pull out the rest of the clips and put the blanket aside. Now we're going to remove the nut here for the safety catch and the secondary nut for mounting.
With the hardware off, you're going to have a small flat head screwdriver. You're going to push in all of these clips on the outside edge here. That will cause the entire heat extractor to release. Make sure you have your hand on the outside of the hood to hold on to the heat extractor because once it's popped off, it doesn't slide down the hood and damage your paint.
What you want to do here is remove all the hardware from these 3 studs and keep the plate together and hold on to both sides. This front edge here is going to go on the front edge of the hood and I'm going to show you that from the top. Now, it'd also be a good time if you want to clean this edge out for the installation. Like I said, this clip here goes underneath this right up front. Actually get it down below. Then slide it into place and everything will line up with factory holes. Now using supplied hardware and make sure you're holding the hood scoop so it doesn't fall off. Easy thing to do is to kind of stack all 3, the wash, the lock wash, and the nut on your fingers. Put them all into place together.
Just get it hand tight for now. Repeat the process with the other 2 studs. These are hand tight now. We're going to go on the top and just make sure the vent is centered. You do have some side to side movement. Get it centered and then we can tighten it down. The torque spec for this is 5 pounds which you're probably not going to have a tool that will do. Just get them snug. You don't want to crank on them hard. Now we can install the last 3 retaining nuts.
Then we'll repeat the process on the other side. Once we install the other side, we're going to go back and reinstall the factory push pin clips and your installation's finished. I wasn't so sure when we got started but I actually kind of dig the way the Scott Drake vents look on the car. They've definitely got a very racy look that I don't think is going to be for everybody but I think a lot of the colors, particularly a brighter color, these will really make the factory hood pop. The installation's very straightforward. It will only take you about an hour to be back on the road in no time.
